Application

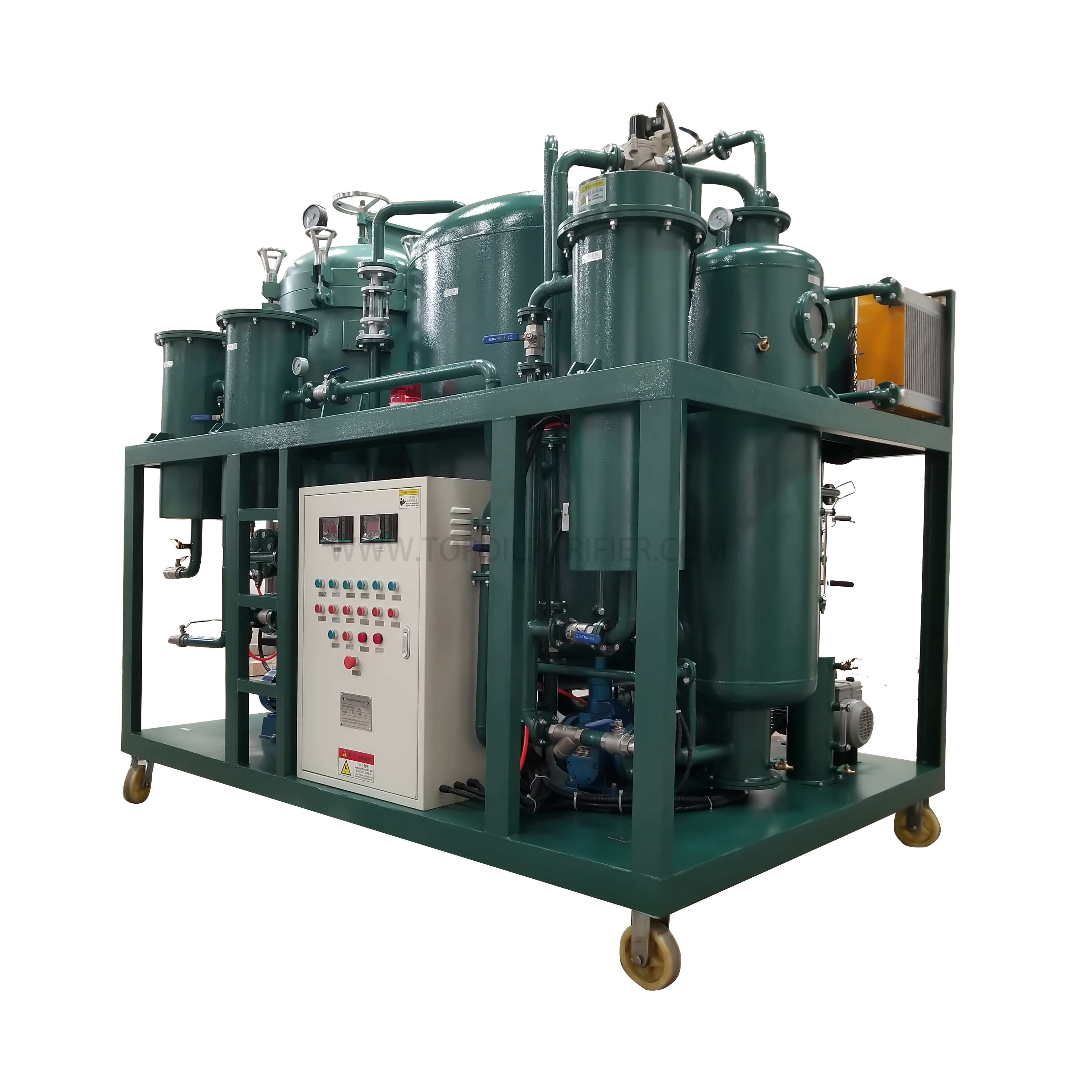

TYS series oil decoloration machine can quickly remove water content, gases, particles,residues and harmful pigment etc in the oil, improve the quality and purity of the oil. This product is suitable to purify the lubricating oil, heavy diesel oil in power plants, ships, large machinery equipment and treat edible rapeseed oil, tea oil, peanut oil etc.
To meet customers’ special needs, we develops:
TYR Oil Purification and Discolor Machine
TYR-Ex Explosion Proof Fuel Oil Purification and Discolorization Machine
TYS Food Grade Cooking Oil Purification and Discolorization Machine
Features
1. Powerful ability to remove impurities, can remove fine particles in the oil by the precise filter material in large area and deep level.
2.Pure physical treatment to dehydrate, degassing, removing impurities and decolorizing the oil, without affecting the components and performance of the oil.
3. Advanced condensation system, using large power and large volume industrial fan, Equipped with aluminum heat ex-changer with large heating exchange area, with good effect, fast condensation.
4.The machine is equipped with pressure protection, automatic temperature control heating, automatic level control, automatic separation of the condensed water drainage device, on-line operation, simple operation, safe and reliable.
5.Adopts high quality filter material, large amount of sewage, corrosion resistance, high temperature resistance, high mechanical strength, in addition to impurities, high precision, long service life.
6.Unique degassing and dewatering system: using three-dimensional evaporation technology, multi-level oil-water separation technology,can rapidly separate water, gas and impurities in the oil.
Technical Parameter:
Item | Unit | TYS-1 | TYS-2 | TYS-3 | TYS-5 | TYS-10 | TYS-20 | TYS-30 | TYS-50 |
Flow rate | Ton/d | 1 | 2 | 3 | 5 | 10 | 20 | 30 | 50 |
Working vacuum | Mpa | -0.06 ~- 0.095 |
Working pressure | Mpa | ≤0.4 |
Temperature | ℃ | 0~100 |
Power supply |
| 380V/50HZ/3Ph 5 wire(as customer’s requirement) |
Working time | H | ≥ 4000 |
Continuous working time | H | ≥150 |
Working noise | dB(A) | ≤65 | ≤70 | ≤75 | ≤78 | ≤78 | ≤78 | ≤80 | ≤82 |
Electric heating power | kW | 36 | 40 | 45 | 72 | 80 | 90 | 120 | 135 |
Total electric power | kW | 38 | 42 | 47 | 75 | 87 | 101 | 135 | 147 |
Outlet(inlet) caliber | mm | Ф25 | Ф25 | Ф25 | Ф32 | Ф42 | Ф50 | Ф50 | Ф60 |
Weight | kg | 350 | 380 | 400 | 450 | 550 | 650 | 700 | 750 |
Size | L | mm | 1500 | 1500 | 1500 | 1600 | 1750 | 1900 | 1950 | 2100 |
W | mm | 1000 | 1050 | 1050 | 1150 | 1150 | 1600 | 1600 | 1600 |
H | mm | 1600 | 1600 | 1650 | 1700 | 1750 | 1950 | 1950 | 2000 |
Index after filtering | Moisture content | PPM | ≤50 |
Gas content | % | 0.1 |
Impurity size | μm | ≤1(Customerizable) |
Demulsification value |
| (fresh oil)≤15min, (oil in operation)≤30mi |
Cleanness degree |
| ≤4（NAS 1638） |
Color | L | 1-3 |
