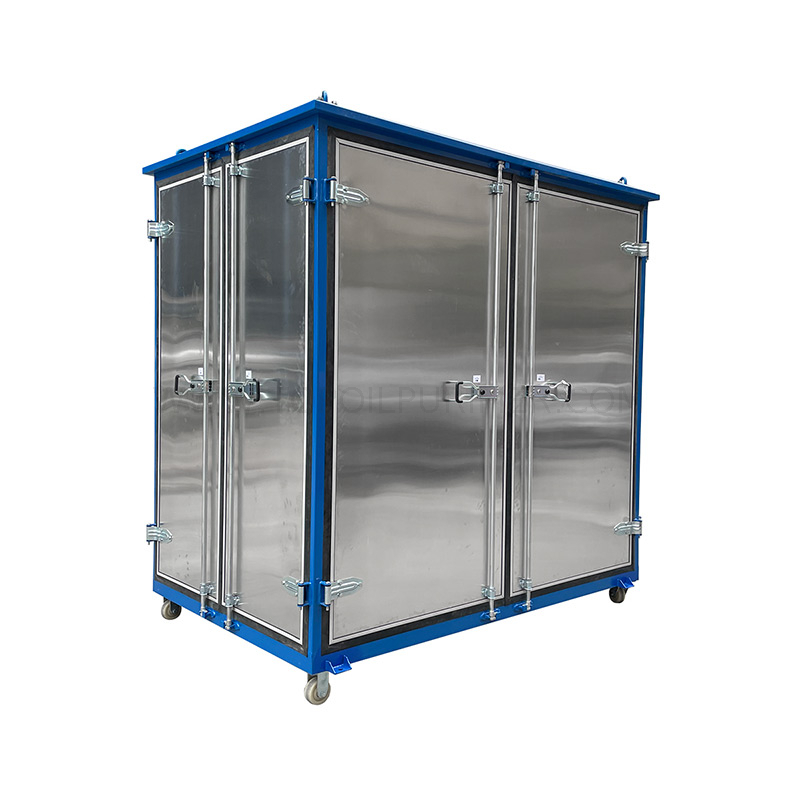

ZYB-W Fully Enclosed Transformer Oil Recuperation Machine

Availability:
Quantity:

Application:

Series ZYB-W is fully enclosed type transformer oil purifier, equipped with weather proof, dust and water resistant enclosure. This machine is mainly used for regenerating the electrical insulating oil such as transformer oil, switch oil and mutual inductor oil, especially suitable for the regeneration of seriously deteriorated insulating oil.


Features:

1.ZYB-W Series is weather proof, dust and water resistant type machine, small and hi-efficient. It moves easily and can be used both indoor and outdoor.

2.Besides the common vacuum oil purifier’s function of dewatering, degassing and eliminating impurities, this machine can regenerate the seriously deteriorated oil by removing the polarity materials such as the deep oxides, free carbon in the oil effectively. It can recover the seriously deteriorated oil to comprehensive index of anti-alkali and water-solubility etc.

3.Three ways of service: use only vacuum dewatering, degassing, removing impurities system; use only the regeneration system independently; and also can use both at the same time.

4. Programmable Logic Controller (P.L.C)

5. Adopting the automatic infrared liquid level control system, automatic constant temperature control system, automatic bubble elimination control system, automatic pressure protection system, automatic interlock protection system and efficient degassing and water removal system to ensure the equipment working safely with high performance.

6. With novel design, compact structure, easy operation and online oil purification. It can work with nobody watching and be used under any environment.

7. Capable of testing the voltage withstanding condition and printing the results with oil BDV tester model IIJ-II-80(80kV) / IIJ-II-100(100kV) (optional)

8. Online moisture meter PTT-001 (optional)

9. Online Flow Meter for auto calculating and recording oil volume and working time(optional)


Technical parameter

Parameter

Unit

ZYB-W-20

ZYB-W-30

ZYB-W-50

ZYB-W-100

ZYB-W-150

ZYB-W -200

Flow rate

L/min

20

30

50

100

150

200

Flow Rate

L/H

1200

1800

3000

6000

9000

12000

Vacuum degree

Mpa

–0.06~–0.095

Vacuum pressure

Mpa

≤ 0.3

Temperature range

10~ 80

Normal working hour

H

≥ 4000

Continuous working hour

H

150

working noise

dB(A)

≤60

≤70

≤72

≤75

≤80

≤80

Heating power

kW

18

24

30

45

60

72

Total power

kW

22

28

35

50

68

80

inlet(outlet) caliber

mm

Ø25

Ø25

Ø32

Ø42

Ø50

Ø50

Weight

kg

400

450

600

800

850

900

Size

L

mm

1500

1600

1600

1600

1600

1700

W

mm

900

900

900

950

950

1000

H

mm

1550

1650

1700

1700

1800

1900

Index after filtering

Breakdown voltage

kV

≥65

Moisture content

PPM

≤5

Gas content

%

0.1

Impurity size

μm

≤1(customizable)

Value β

%

96

Acid value

mgKOH/g

≤0.03

Dielectric loss factor.

tgδ(90℃)

≤0.001
