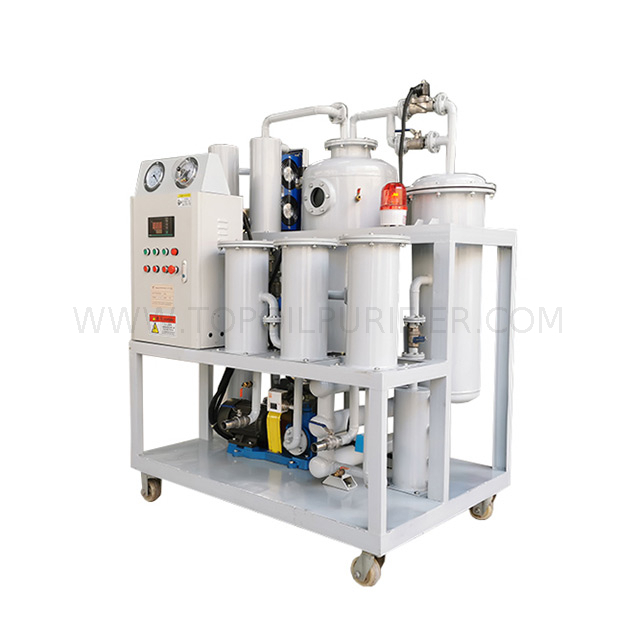

TYA -A Fully Automatic Lubricating Oil Purifier

Availability:
Quantity:

Application:

Series TYA-A oil purifiers is controlled by PLC fully automatic operation. It can remove free and dissolved water, dirt, and free and dissolved air/gases from hydraulic oil, gear oil, engine oil, compression oil, freezer oil, heat treatment oil, compressor oil, refrigeration oil and other industrial oils in metallurgy, machinery, oil field, chemistry, mine, electric power generation plant, transportation and manufacturing enterprises. TYA-S oil purifiers reduce system wear; improve on-line and system performance; extend fluid life and reduce fluid disposal costs and environmental risks.


To meet customers’ special needs, we develops:

  • TYA Lubricating Oil Purifier Machine

  • TYA -A Fully Automatic Lubricating Oil Purifier

  • TYA -W Enclosed Lubricating Oil Purifying Unit

  • TYA -Ex Explosion-Proof Hydraulic Oil Cleaning Machine

  • TYD High Water Content Hydraulic Oil Water Separator


Features:

1. The plant is delivered ready for operation.

2. Super ability in breaking emulsion, dehydration and degassing process. Adopting big-cubage, reinforced three-dimension flash distillation column, thin film evaporation technique and large area multi-level separation technique so as to remove water, gas and light hydrocarbon material efficiently and quickly.

3. Adopting high-quality filter element and sealing material with corrosion proof, high temperature resistance and excellent mechanical strength, it is suitable even for purification process of high-viscosity oil under rather high temperature conditions and in this way expanding its application scope.

4. Fine and precision multi-stage filtration system can remove mechanical particulates thoroughly and effectively.

5. With air-cooling and condensation system, it can cool the air in the vacuum system efficiently and quickly, which avoids inconvenience of water-cooling.

6. Advanced high pressure protection device and infrared oil level control system for easy operation.

7. Perfect automatic and manual oil heating temperature controller, automatic cooling and separation device, simple, safe and reliable.

8. High quality electrical control cabinet, with high efficiency for heat transfer and anti-explosion.

9. The equipment can also be installed with digital flow meter and timer for auto calculating and recording oil volume and working time. (it’s optional according to user’s requirement)

10. The machine can be installed with two filtration systems for easy and quick change of filter element without stopping the machine.


Optional Features:

1. Flow Meter for auto calculating and recording oil volume and working time

2. Continuous Online Moisture in Oil Analyzer Model PTT-001)

3. Continuous Online Moisture and Particles in Oil Monitor(Model PTT-M)

4. Metallic Weather Proof Enclosure

5. Single/Double-axles Road worthy Trailer for Outdoor Use

6. Regeneration system TYR with special brand of earth can remove acidity, sludge, other soluble oil decay products and discoloration(not suitable for car engine oil)


Technical Parameter:

Item

Unit

TYA-A-10

TYA-A-20

TYA-A-30

TYA-A -50

TYA-A -100

TYA-A -150

TYA-A -200

TYA-A

-250

TYA-A-300

Flow rate

L/min

10

20

30

50

100

150

200

250

300

Flow rate

L/hr

600

1200

1800

3000

6000

9000

12000

15000

18000

Working vacuum

Mpa

-0.06 ~- 0.098

Working pressure

Mpa

≤0.3

Temperature Range

0~100

Working Oil Temperature

45~65

Power supply


380V/50HZ/3Ph 5 wire(as customer’s requirement)

Continuous working time

H

≥150



Working noise

dB(A)

≤65

≤68

≤68

≤70

≤70

≤75

≤75

≤78

≤80

Electric heating power

kW

15

18

24

36

60

72

120

150

180

Total electric power

kW

17

20

26

39

65

79

128

180

192

Outlet(inlet) caliber

mm

Ф25

Ф25

Ф25

Ф32

Ф42

Ф45

Ф50

Ф60

Ф63

Weight

kg

350

400

450

500

900

1300

1500

1800

2000

Size

L

mm

1350

1400

1450

1500

1700

1800

2000

2100

2400

W

mm

950

1000

1050

1100

1150

1250

1400

1450

1550

H

mm

1650

1700

1750

1800

1800

2000

2200

2300

2400

Index after filtering

Moisture content

PPM

≤50

Gas content

%

0.1

Impurity size

μm

≤1(Customerizable)

Cleanness degree

Degree

≤6(NAS 1638)
