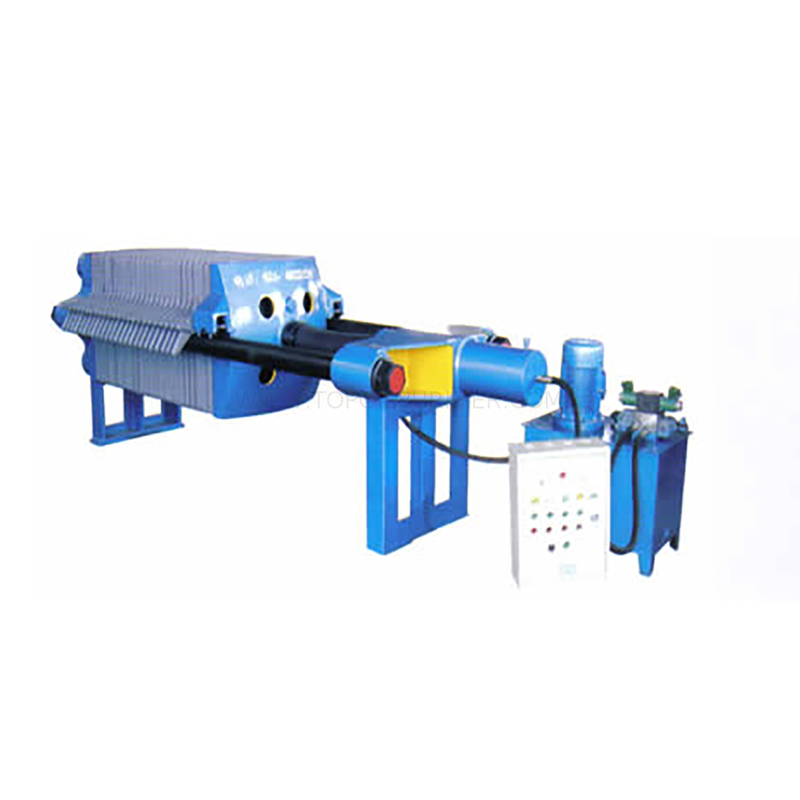

Series BAM Hydraulic Iron Plate Filter Press

Availability:
Quantity:

Chongqing Top Oil Purifier Manufacture Co,. Ltd is a comprehensive mechanical processing manufacturing enterprise specializing in the production of liquid-solid separation equipment. We have tremendous strength in technology, exquisite processing equipment and rich experience. Our products are varied in specification, and have reliable quality, stable performance and reasonable structure, and can be supplied timely. Our products are well received by users from all over the country and around the world.



The company takes the traditional management philosophy, develops and promotes the liquid-solid filtration system. Every processes including the function design, manufacturing process and sale process are all specified and required in detail. Some series products systems mainly including plate pressure purifiers, box pressure purifiers, diaphragm compressed box pressure purifiers, stock-controlled automatic diaphragm compressed box pressure purifiers, belt-type pressure purifiers, tripod centrifuge and stainless steel filter are formed gradually.



The company has the following series pressure purifiers: plate, box and diaphragm compressed box pressure purifiers of types of 320, 450, 630, 800, 1000, 1250, 1500, 2000 with a filtering area ranging from 0.5m² to 800m². The material of the plate includes iron, ordinary reinforced polypropylene, glass fiber reinforced polypropylene and stainless steel and others. The compressing forms include manual compressing, compressing with a jack, mechanical compressing, hydraulic compressing, automatic pressure-maintained compressing and the advanced microcomputer stock fully controlled PLC control. The filtering forms include open delivery, closed delivery, open delivery washable, closed delivery washable and two-way crossed washing. The products are widely used in chemistry, petroleum, pharmaceutical, sugar manufacture, metallurgy, food, ceramics and starch and other production processes of industries and cleaning of industrial sewage and domestic sewage.



Range of application:

Chemistry: dye, pigment, titanium dioxide, electrolytic manganese, caustic soda, sodium carbonate, alkali salt mud, white carbon black, saponin, graphite, bleaching powder, lithopone, fluorescent powder, sodium hydrosulfite, potassium chlorate, potassium sulphate, ferrous sulfate, ferric hydroxide and purifier (aluminum sulfate, aluminium polychlorid and aluminium chloride), etc,.

Medicine: antibiotics (aureomycin, erythromycin, spiramycin, Jinggangmycin, midecamycin, acheomycin, berberine and terramycin), calcium phytic acid, traditional Chinese medicine (TCM) inositol, growth derived sand, organophosphorus and saccharifying enzyme.

Food: rice wine, Chinese spirits, fruit juice, beverage, beer, yeast, citric acid, vegetable protein, vegetable honey aspartame, glucose, stevioside, maltose, starch sugar, starch, rice flour, corn steep liquor, glue,carrageenan, aginomoto, spice, paste liquid, oral administration liquid, soymilk and seaweed.

Metallurgy: gold ore, sliver ore, copper ore, iron ore, zinc ore, powder like tombarthite.

Oil refining: mineral oil, sesame oil, naphtha, glycerinum, machine oil and vegetable oil.

Potter clay: kaolin, bentonite, active soil, china clay and electronic ceramic clay.

Sewage treatment: chemical sewage, smelting sewage, electroplating sewage, leather sewage, dyeing sewage, brewing sewage, pharmacy sewage and environmental sewage, etc,.

Application:

Filter Press is usually used in all kinds of suspension liquid for separating solid and liquid, such as food, environmental protection light industry, medicine, chemical industry, metallurgy, petroleum industry, etc. Oil filter press, as the name suggests, is widely used in oil industry.

Oil filter press is important equipment in oil mill plant which is quite suitable for clearing and filtering the different plant rude-oil, also it could clear the waste water, waste cooking oil. Use the smaller mesh filtering cloth, which could be used for clearing the bio-diesel oil .

Features:

1. Quick opening and closing of the hydraulic device with self-protecting.

2. Multi-hydraulic cylinders to distribute the closing force of oil filter press evenly and symmetrically.

3. Several feeding ports to decrease the filling and filtering time.

4. Long life-span oil filter press elements.

5. Special filtrate canal design.

6. Membrane technology to be used for secondary dewatering.

7. Cake blowing procedure to be used for further dewatering.

8. Core blowing procedure to be used to blow away the remainder materials in feeding ports.

9. Large cake discharge space to avoid filter cloth damage during cake fall.

10. Special cake discharge mechanism to realize automatically cake discharge in a short time.

11. Automatic control system.

Technical Parameter:

450-jack compress Iron frame 450-jack compress iron van filter



Model Specifications

Filter area

(m2)

Frame  size

(mm)

Flitch thickness

(mm)

Plate number

(pcs)

Frame number

(pcs)

CBM

Filter area

(L)

Dimensions

 (L x W x H)

(mm)

Filter Pressure

(Mpa)

Whole Weight

(kg)



Foundation size


L

B

A

H

BAMQ4/450-25

4

450*450

25

9

10

51

1450*870*880

0.8

1100

1110

300

420

520

BAMQ6/450-25

6

14

15

76

1700*870*880

1330

1360

BAMQ8/450-25

8

19

20

102

1950*870*880

1550

1610

BAMQ10/450-25

10

24

25

127

2200*870*880

1775

1850

BAMQ12/450-25

12

29

30

152

2450*870*880

2000

2110

XAMQ4/450-25

4

450*450

25

9


51

1450*870*880

0.8

1050

1110

300

420

520

XAMQ6/450-25

6

14

76

1700*870*880

1260

1360

XAMQ8/450-25

8

19

102

1950*870*880

1500

1610

XAMQ10/450-25

10

24

127

2200*870*880

1725

1850

XAMQ12/450-25

12

29

152

2450*870*880

1930

2110

Technical Parameters of 630-hydraulic clamping iron van filter



Model Specifications

Filter area

(m2)

Frame  size

(mm)

Flitch thickness

(mm)

Plate number

(pcs)

Frame number

(pcs)

CBM

Filter area

(L)

Dimensions

 (L x W x H)

(mm)

Filter Pressure

(Mpa)

Whole Weight

(kg)



Foundation size


L

B

A

H

BAMY20/630-25

20

630*630

25

24

25

248

3300*1200*1100

0.6

4200

2490

500

520

820

BAMY25/630-25

25

30

31

312

3600*1200*1100

4900

2790

BAMY30/630-25

30

37

38

377

3900*1200*1100

5600

3090

XAMY20/630-25

20

630*630

30

24


298

3300*1200*1100

0.6

4250

2490

500

520

820

XAMY25/630-25

25

30

375

3600*1200*1100

4825

2790

XAMY30/630-25

30

37

452

3900*1200*1100

5400

3090

Technical Parameters of 800-hydraulic clamping iron van filter



Model Specifications

Filter area

(m2)

Frame  size

(mm)

Flitch thickness

(mm)

Plate number

(pcs)

Frame number

(pcs)

CBM

Filter area

(L)

Dimensions

 (L x W x H)

(mm)

Filter Pressure

(Mpa)

Whole Weight

(kg)



Foundation size


L

B

A

H

BAMY40/800-25

40

800*800

25

30

31

496

3750*1380*1300

0.5

7000

2640

500

710

870

BAMY50/800-25

50

38

39

624

4200*1380*1300

7800

3080

BAMY60/800-25

60

46

47

752

4600*1380*1300

9200

3520

BAMY70/800-25

70

54

55

880

5050*1380*1300

11800

3920

XAMY40/800-30

40

800*800

30

30


595

3820*1450*1300

0.6

7600

2910

600

710

870

BAMY50/800-30

50

38

749

4300*1450*1300

9000

3390

BAMY60/800-30

60

46

902

4780*1450*1300

10350

3870

BAMY70/800-30

70

54

1056

5260*1450*1300

11800

4350
