Application:

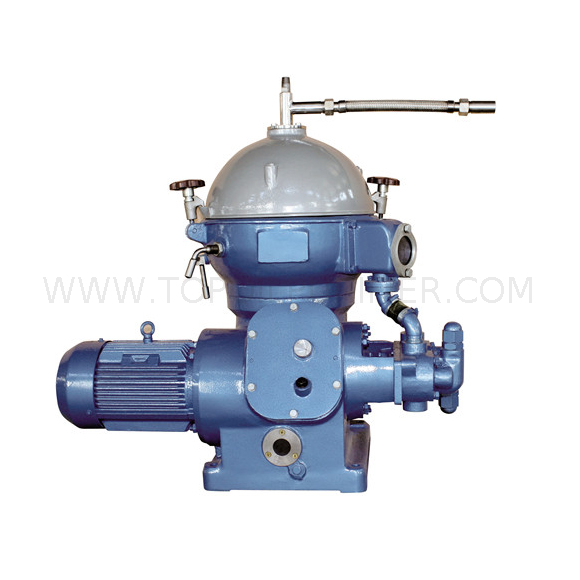

In this machine, oil, water and impurities in the lubricating oil of different pollution degree are rapidly separated from each other by different centrifugal forces. This machine is suitable for purification treatment of lubricating oil for large mechanical equipment and heavy diesel fuel in power plants, ships etc. When the machine is used for processing turbine oil in power plants, bypass is connected on the main oil tank of a turbine so that moisture and impurities in the oil can be filtered timely. After the processing, the content of moisture can be less than 100 PPM and the content of impurities can meet NAS1638 6, which is in accordance with national standard GB7596 and GB/T14541-93 Guide For Maintenance And Management Of Mineral Oil Used For Steam Turbine In Power Plant Operation. This improves the operating oil quality and slows down the aging of oil to ensure the safe operation of steam turbine.
Technical parameters:
Model | Treatment capacity (L/h) | Drum diameter (mm) | Drum rotation speed (r/min) | Motor power (Kw) | Slagging method | Separation factor | Weight (kg) | Overall mmxmmxmm |
CYS-1 | 1500 | 230 | 6930 | 2.2 | Manual | 6170 | 245 | 850x625x985 |
CYS-2 | 2000 | 270 | 7200 | 4 | Automatic | 6950 | 550 | 865x645x1100 |
CYS-3 | 3000 | 315 | 6500 | 5.5 | Automatic | 7000 | 650 | 900x600x1150 |
CYS-4 | 4000 | 385 | 6500 | 7.5 | Automatic | 7500 | 750 | 1100x1050x1250 |
CYS-5 | 5000 | 430 | 6000 | 11 | Automatic | 8050 | 900 | 1200x950x1400 |
CYS-10 | 10000 | 500 | 5500 | 18.5 | Automatic | 8000 | 1200 | 1250x1000x1550 |
