Introduction

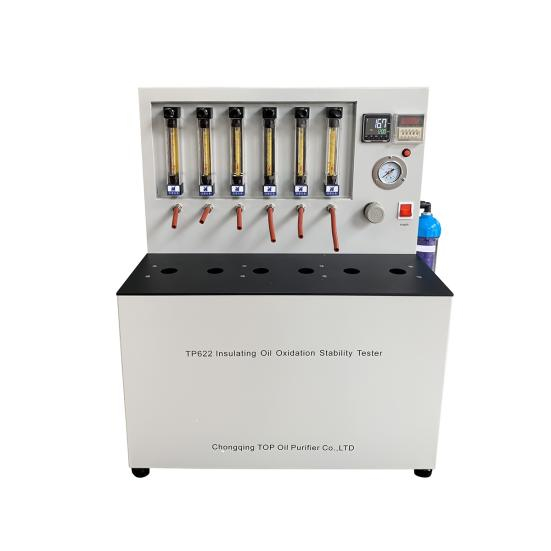

TP622 insulating oil oxidation stability analyzer is designed and manufactured under the standard IEC61125, ASTMD2440, SH/T0811-2010 and SH/T0206-1992 for the determination of the oxidation stability of insulating oil. As an automated instrument, this instrument is the best choice of oxidation stability test for transformer oil in production of transformer oil, transformer oil used companies, the relevant institutions and research departments.
Technical Feature
1. Metal bath heating, without refueling, energy saving and easy to use
2. PID control can quickly remain stable after reaching the target temperature, saving waiting time
3. Built-in over-temperature protection device, more reliable and more secure
4. Soap bubble flow meter configured can accurately detect the gas flow
5. The timer configured can be automatically timing
Technical Parameter
1. Power supply: AC 220V ± 10% 50Hz ± 10%
2. Power: ≤1100W
3. Temperature range: room temperature ~ 160 °C
4. Temperature accuracy: ± 0.5 °C
5. Number of samples: 6
Standard configuration:
No | Name | Specification | unit | Qty | Remark |
1 | Transformer Oil Oxidation Stability Tester | TP622 | set | 1 |
|
2 | Oxidation tube(include suction tube,oxygen through tube) |
| set | 12 |
|
3 | Thermometer | (0°C~150°C) | pc | 1 | (sub-scale of 0.5°C) |
4 | Bath cover |
| pcs | 6 |
|
5 | Spare silicone tube | (inner diameterΦ4) | meter | 1 |
|
6 | Soap bubble flow meter | (10mL) | pcs | 6 |
|
7 | Copper wire | (1-2mm) | meter | 10 |
|
8 | Gauze No.220 |
| pc | 1 |
|
9 | Mechanical mounting rack |
| unit | 1 |
|
10 | Winder |
| pc | 1 |
|
11 | Conical washer |
| pcs | 2 |
|
12 | Drying tube |
| pc | 1 |
|
13 | Cylinder connecting pipe |
| pc | 1 | (with connector; connect compressed air bottle to instrument) |
14 | Instructions | TP622 | pc | 1 |
|
