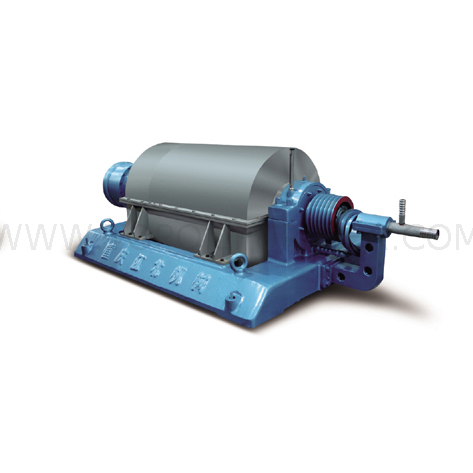

Horizontal Spiral Unloading Settling Centrifuge

Availability:
Quantity:

Application:

Horizontal spiral unloading settling centrifuge is a setting type centrifuge which can work continuously and automatically, and the feeding, separation, dehydration and unloading of materials can be operated continuously and automatically at a full speed. This machine is mainly used for solid-liquid separation of suspension having a solid phase granularity of a large range, low concentration and medium concentration, and can complete the solid phase dehydration, liquid phase separation, liquid-liquid-solid separation, and particle size classification and other separation processes. With a strong adaptability to materials, it has large application range. This machine is especially suitable for the separation of suspension having a solid phase granularity of 0.005-2 mm, concentration of 1-50%, temperature of 0-90°C, and greater solid phase proportion than liquid phase proportion. As the spiral unloading is adopted, the solid phase particle is damaged to a certain extent, the washing effect of the sediment is poor. So this machine is not suitable for separation of materials requested by the above two situation.

Main mode:

1. D series: introduced products when our company cooperate with the French GUINARD company have the following main specifications:

D1, D2, D3, D4, D5 and D6.

2. LW series: products developed and designed by our company in recent years have the following main specifications:

LW200, LW350, LW450, LW520, LW650, LW800 and LW1000.

3. WL series: old products of our company have the following specifications:

WL200, WL350, WL450 and WL600.

The above products of each specification may refer to different products having a diameter of 2 to 4.2 according to separation requirements.

Application range:

Food: Animal fats; blood; beer yeast and cold slag; casein; clarified butter; coffee essence; corn wine residue; alcohol lees; drinking water treatment; fish meal; fish washing; fruit juice; pectin; lactose; gravy; molasses; mycelium; potato residue; potato protein; protein; sorbic acid; soybean powder; grain slag; starch; plant extracts; vegetable; vegetable juice; wheat starch; wine and beer.

Environmental protection: city sewage treatment; city drinking water treatment; industrial sewage treatment; waste oil and oil sludge treatment.

Chemicals: aluminum hydroxide; barium sulfate; bauxite; bentonite; calcium carbonate; calcium fluoride; calcium sulfate; carbide sludge; sodium hydroxide; cellulose derivatives; clay; cryolite; two terephthalic acid methyl ester; epoxy resin; fluorescent materials; graphite; gypsum; iron; iron oxide; kaolin; latex; lead oxide; lead sulfate; lime; hydrogen manganese oxide; mica; mineral oils; nickel hydroxide; paint; pharmaceutical intermediates; phosphoric acid phosphate; pigments; plastic products; derivatives; polyethylene; polystyrene; polypropylene; polyvinyl chloride; silicates; silicon dioxide; sodium chloride; and titanium oxide; calcium phosphate; salt; vitamin; Zinc Oxide; zinc; zinc sulfate.

Other: drilling fluid; liquid manure.



Model

Drum diameter

(mm)

Draw Ratio

Speed

r/min

Separator factor

Motor

(kw)

Weight

(kg)

Size (mm)

LxWxH

LW200x880

200

4

4800

2840

7.5-11

1000

2658x740x781

LW350x1460

350

4

4000

3100

22

2020

3542x1010x1030

LW450x1800

450

4

3200

2577

30-37

3500

4122x1090x1250

LW450x2025

450

4.5

3200

2577

30-37

3800

4560x1090x1250

LW530x2120

530

4

2800

2327

45-55

4200

4728x1230x1455

LW530x2650

530

5

2500

2150

37-55

4500

5050x1230x1350

LW630x2300

630

3.65

2500

2205

75

8000

5110x1440x1750
