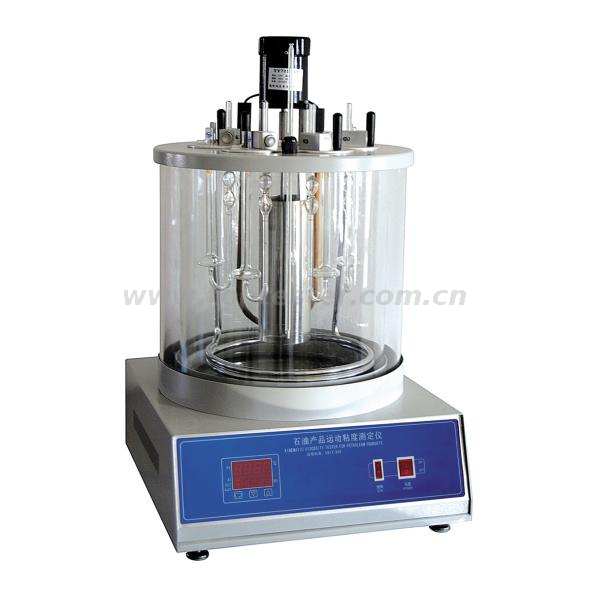

Kinematic Viscosity Tester Model VST-015

Availability:
Quantity:
  • VST-015
  • CHONGQING TOP

Application:

TP-015 Kinematic Viscosity Tester is designed and manufactured in accordance with Petroleum Products Kinematic Viscosity Determination Method and Dynamic Viscosity Calculation Method of GB/T 265-1988. It is suitable for measuring the kinematic viscosity of liquid petroleum products (diesel). The random configuration includes the necessary parts for the test which can be completed without additional spare parts. It is equipped with low temperature circulating cold source.



 Features:

The constant temperature bath is a round cylinder with four holes and a organic glass cover. The temperature in the bath is evenly distributed with good temperature control effect.

The heater and guide tube are made of stainless steel, which is corrosion-resistant and durable.

It adopts digital temperature control system and totally new technology anti-integral saturation PID temperature controller. During the heating process, there is no flushing temperature or very small flushing temperature, and the temperature control accuracy is high. It is equipped with the most advanced device SSR at home and abroad with advantages of no contact, no noise, no spark, vibration resistance and long service life.

The capillary viscometer adopts three-point vertical type, which is flexible and convenient in operation and reliable in clamping.

Advanced electronic ballasts and ring-shaped fluorescent tubes don’t need starter, which start quickly and has good visibility with advantages of no flickering, no noise, and long service life.

Equipped with low temperature circulating cold source.



Technical parameters:

Temperature control range: 0100℃ continuously adjustable

Temperature control accuracy: ±0.1℃

Heater power: 600W

Clamped Viscometer Quantity: 4 pcs

External Dimension: 400×440×680 (mm)

Weight: 20kg



Testable items of instrument configuration:

It is suitable for measuring the kinematic viscosity of liquid petroleum products (diesel).

Accessories configuration (including manufacturer) (single unit):

Serial Number

Name and Specification Model

Quantity

Remarks

1

Host TP-015

1 set


2

Circulating constant temperature bath TP-302

1 set


3

Fuse Φ6×30 10A

1 pc


4

Sensor

1 pc


5

Viscometer clamp cover

4 pcs


6

Thermometer 1822℃

2 pcs


7

Capillary viscometer 0.014-0.035 range

4 pcs

8

Bath cover

4 pcs


9

Stopwatch

2 pcs
