Application

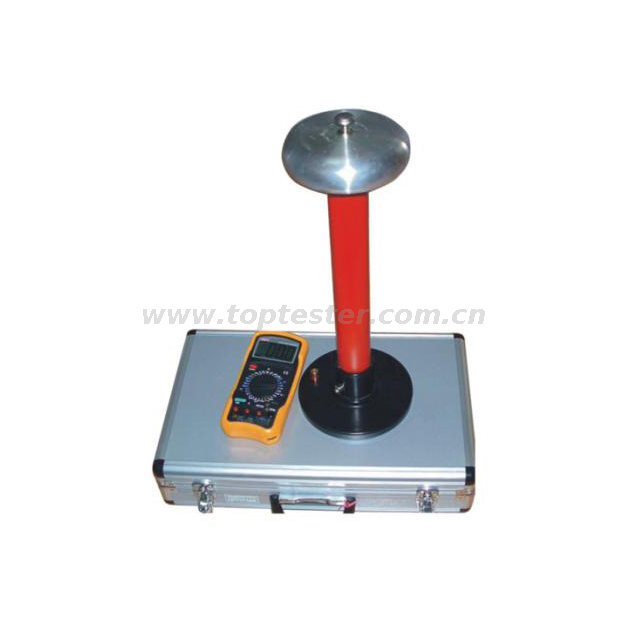

DCV high voltage divider is applied to measure AC/DC high voltage in metrology department of power system or high voltage test.
Technical parameters
Model | Max voltage (kv) | Max error |
AC | DC | AC | DC |
DCV-50 | 50 | 70 | 1%RDG+0.1%FS | 0.5%RDG+0.05%FS |
DCV-100 | 100 | 140 | 1%RDG+0.1%FS | 0.5%RDG+0.05%FS |
DCV-150 | 150 | 200 | 1%RDG+0.1%FS | 0.5%RDG+0.05%FS |
DCV-200 | 200 | 300 | 1%RDG+0.1%FS | 0.5%RDG+0.05%FS |
DCV-300 | 300 | 420 | 1%RDG+0.1%FS | 0.5%RDG+0.05%FS |
DCV-400 | 400 | 560 | 1%RDG+0.1%FS | 0.5%RDG+0.05%FS |
DCV-500 | 500 | 700 | 1%RDG+0.1%FS | 0.5%RDG+0.05%FS |
Environment temperature: 0~50°C Humidity: ≤80%RH |
Resistance and capacitor value: Customize |
Compose mode: Customize (Resistive or capacitive) |
