Application:

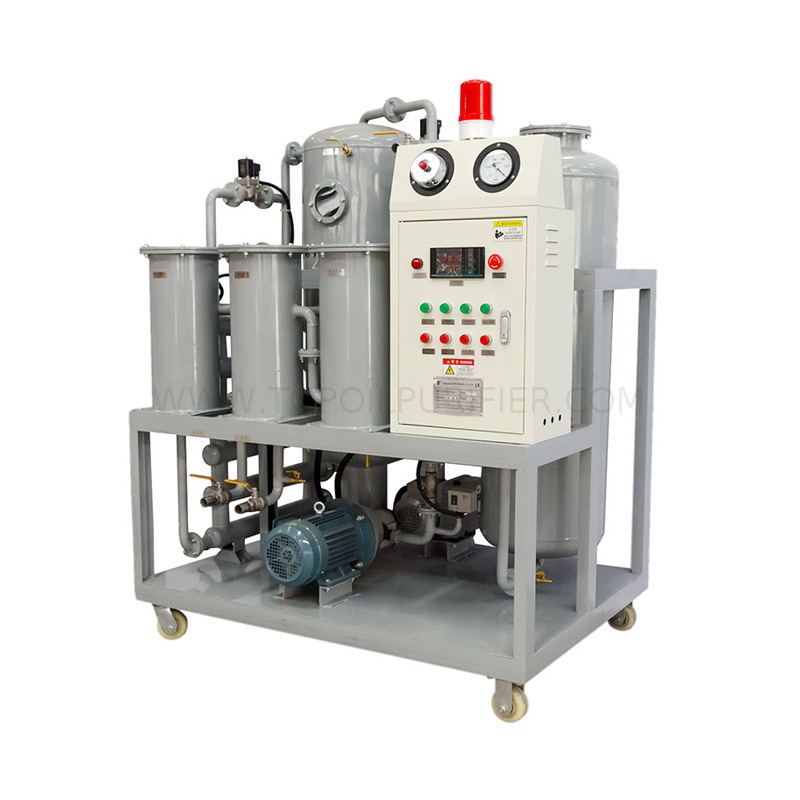

Series ZYB-A adopts Programmable Logic Controller (P.L.C) to achieve the automation of whole treatment process. This machine is mainly used for regenerating the electrical insulating oil such as transformer oil, switch oil and mutual inductor oil, especially suitable for the regeneration of seriously deteriorated insulating oil.
Features:
1.Besides the common vacuum oil purifier’s function of dewatering, degassing and eliminating impurities, this machine can regenerate the seriously deteriorated oil by removing the polarity materials such as the deep oxides, free carbon in the oil effectively. It can recover the seriously deteriorated oil to comprehensive index of anti-alkali and water-solubility etc.
2.Three ways of service: use only vacuum dewatering, degassing, removing impurities system; use only the regeneration system independently; and also can use both at the same time.
3.Programmable Logic Controller (P.L.C)
Technical parameter
Parameter | Unit | ZYB-A-20 | ZYB-A -30 | ZYB-A-50 | ZYB-A -100 | ZYB-A-150 | ZYB-A-200 |
Flow rate | L/min | 20 | 30 | 50 | 100 | 150 | 200 |
Flow Rate | L/H | 1200 | 1800 | 3000 | 6000 | 9000 | 12000 |
Vacuum degree | Mpa | –0.06～–0.095 |
Vacuum pressure | Mpa | ≤ 0.3 |
Temperature range | ℃ | 10～ 80 |
Normal working hour | H | ≥ 4000 |
Continuous working hour | H | 150 |
working noise | dB(A) | ≤60 | ≤70 | ≤72 | ≤75 | ≤80 | ≤80 |
Heating power | kW | 18 | 24 | 30 | 45 | 60 | 72 |
Total power | kW | 22 | 28 | 35 | 50 | 68 | 80 |
inlet(outlet) caliber | mm | Ø25 | Ø25 | Ø32 | Ø42 | Ø50 | Ø50 |
Weight | kg | 400 | 450 | 600 | 800 | 850 | 900 |
Size | L | mm | 1500 | 1600 | 1600 | 1600 | 1600 | 1700 |
W | mm | 900 | 900 | 900 | 950 | 950 | 1000 |
H | mm | 1550 | 1650 | 1700 | 1700 | 1800 | 1900 |
Index after filtering | Breakdown voltage | kV | ≥70 |
Moisture content | PPM | ≤5 |
Gas content | % | 0.1 |
Impurity size | μm | ≤1(customizable) |
Value β | % | 96 |
Acid value | mgKOH/g | ≤0.03 |
Dielectric loss factor. | tgδ(90℃) | ≤0.001 |
