Application:

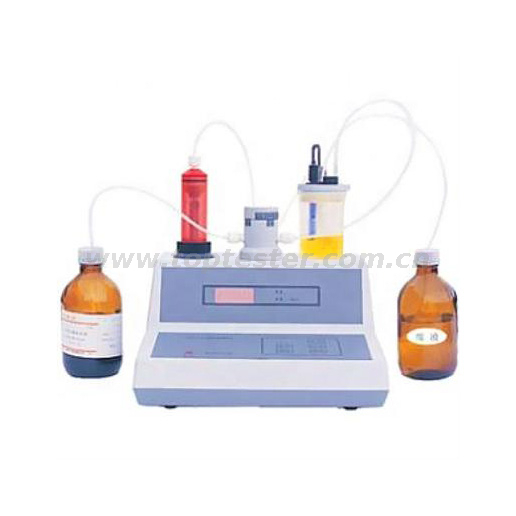

Based on Karl Fischer principle, this instrument is the latest water titrator designed according to the newest mechatronics engineering technology with human interface. It owns high accuracy and easy operation. This instrument can determine crystal water, adsorbed water and free water in gas, liquid and solid samples. It is widely applied to many fields such as petroleum, chemistry, pharmacy, daily chemical, food, agriculture, labs etc.
Features:
1. Extra large color LCD screen.
2. Whole process of dynamic guidance; much convenient and easy windows operation.
3. All results shown in one screen (water content, water percentage, ppm content, reagent consumption); dynamic color titration curve display; automatic saving testing results.
4. Automatically subtract drifting water; automatic track for environment water drift; ensure accurate testing results.
5. Step-less speed control of mixing PWM; menu for speed selection.
6. Complete closed system; automatic reagent displace and waste liquid discharge; avoid escaping of poisonous reagent.
7.Prompt parameters display of instrument status, metric pump sample input amount, current time, 3-way valve position, drifting amount etc.
Technical Parameter:
Model | TP-1 | TP-1A | TPD-1 | TPD-2 | TPD-2G |
Test Range | 0.03%-100% | 0.03%-100% | 0.02%-100% | 0.02%-100% | 0.01%-100% |
Resolution | 0.05ml | 0.05ml | 0.05ml | 0.01ml | 0.01ml |
Titration flow | 0.01ml/s | 0.01ml/s | Automatic | Automatic | Automatic |
Display | Needle | Digital | LED | Digital(ml) | ExtraLCD |
Endpoint delay | / | / | 10+-2s | 10+-2s | 10-300s Adjustable |
Display error | ＜=3% | ＜=3% | ＜=2% | ＜=2% | ＜=2% |
Power supply | 220V/50HZ | 220V/50HZ | 220V/50HZ | 220V/50HZ | 220V/50HZ |
