Features

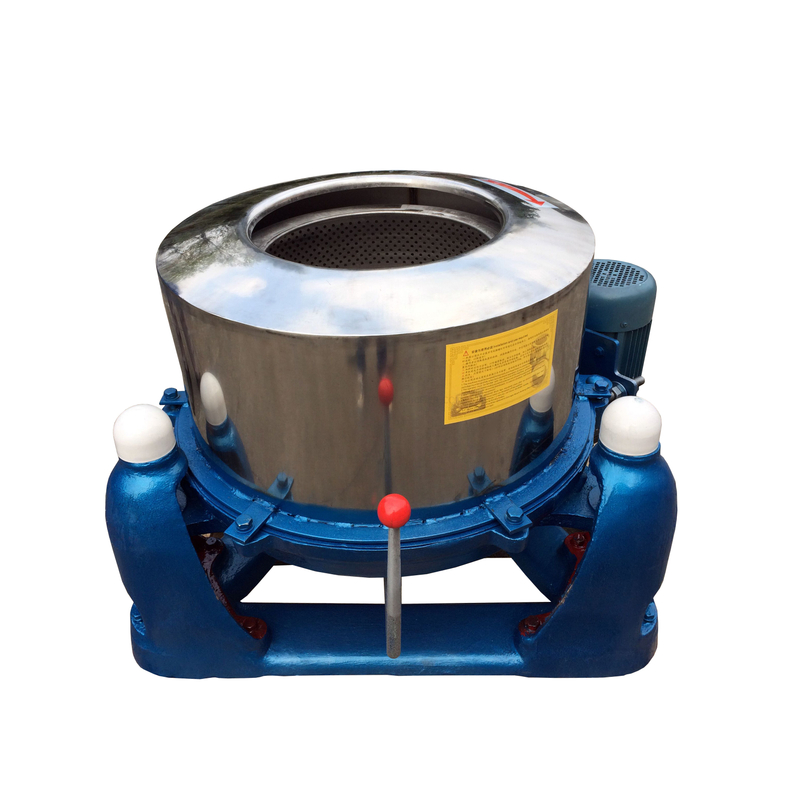

CTM type tripod centrifuge is a filtration type centrifuge for manual scraper lower unloading and intermittent operation, and is suitable for separation of suspension containing (granular, crystalline or short fibrous) solid phases and having a concentration of 5-6% and granularity of 0.05-1.5 mm. This series of centrifuge has the advantages of simple structure, convenient operation, each operation can be adjusted according to the requirements, the filter residue can be completely washed, solid phase are not easy to be damaged,. It has strong adaptability. The scraper lower unloading reduces the labor intensity and is widely used in chemistry, light industry, food, pharmacy, metallurgy and other industries.
Main technical parameters
Model | Drum | Separation factor ω2r/g | Motor power kw | Weight kg | Overall mm | |||
Diameter mm | Working volume L | materials limitation kg | Rotate speed r/min | |||||
CTM800 | 800 | 90 | 120 | 0-1200 | 644 | 7.5 | 2500 | 1900×1370×1800 |
CTM1000 | 1000 | 150 | 150 | 0-1000 | 560 | 11 | 3500 | 2250×1700×1900 |
CTM1200 | 1200 | 240 | 200 | 0-800 | 430 | 15 | 4000 | 2450×1900×2300 |
CTM1250 | 1250 | 250 | 250 | 0-900 | 566 | 18.5 | 4200 | 2587×1900×2335 |
