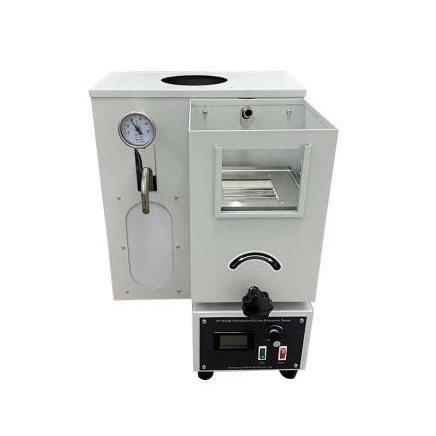

ASTM D86 Petroleum Product Distillation Tester TP-6536C (Low Temperature Single Tube Type)

Availability:
Quantity:
  • TP-6536C
  • CHONGQING TOP

Application:

This instrument is designed and manufactured according to the requirements of the People's Republic of China standard GB/T 6536 "Petroleum Product Distillation Measurement Method", applicable to distillation of gasoline, aviation gasoline, steam fuel, special boiling point solvent,naphtha, diesel, distillate fuels and similar petroleum products.

This instrument is a low temperature, single tube working mode petroleum product distillation tester. It is an ideal low temperature distillation tester for petroleum products.



Technical Characteristics:

1. It adopts digital temperature controller, stainless steel heater, new refrigeration compressor and electric agitator to form a constant temperature bath. The temperature inside the bath is even and fully meets the requirements of the test.

2. The use of a special heating furnace to ensure the safety of the test; heating power continuously adjustable to meet the test requirements.

3. The instrument is complete and easy to use. It can be used to carry out distillation test of petroleum products under low temperature conditions.



Technical Parameters:

1.Working power: AC 220V ± 10%, 50Hz;

2. Electric furnace heating power: 1000W;

3.Measuring cylinder volume: 100ml, index 1ml;

4. Distillation flask: 125mL, in line with GB/T 6536 requirements;

5. Thermometer: The scale range is -2~+300°C and -2~+400°C respectively, and the index is 1°C;

6. Electric furnace movable plate: silicon carbide plate manufacturing, the aperture is φ32mm, φ38mm, φ50mm;

7.Temperature controller: ① temperature control range: 0 ~ 60 ° C arbitrary settings;

②Temperature control accuracy: ±0.5 °C;

③ Temperature display mode: LED digital display;

Note: Temperature control refers to temperature control of the condensation bath of the condenser.

8.Ambient temperature: ≤ +30 ° C;

9.Relative humidity: ≤ 85%;

10. Refrigeration system: a new type of refrigeration compressor;

11. Power consumption: no more than 2500W.

12. Dimensions: 570mm * 440mm * 550mm (length * width * height).
