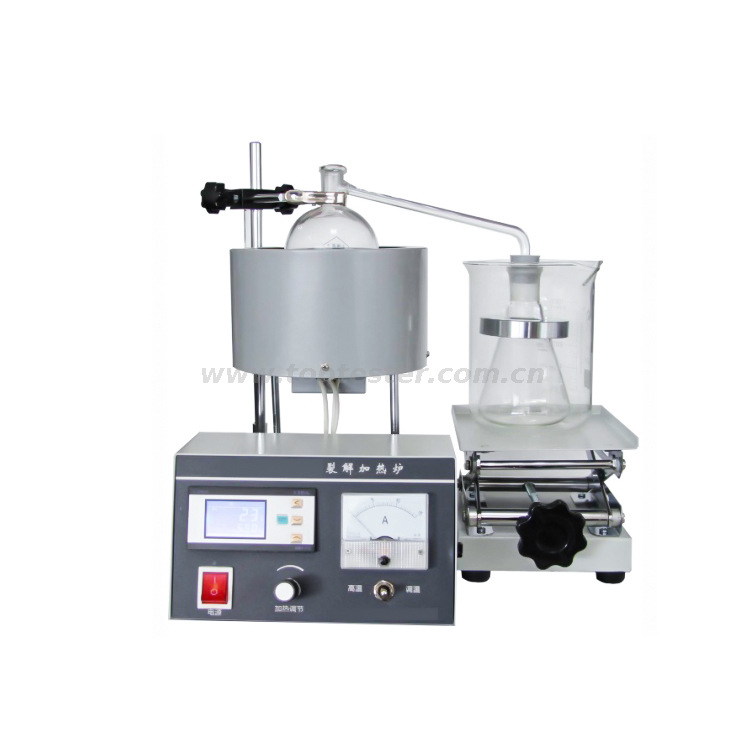

Distillation Stove TP-0615-1

Availability:
Quantity:
  • TP-0615-1
  • CHONGQING TOP

Summary

The instrument is designed and made as per the regulation of cracking distillation stove in the petrochemical industrial standard of People's Republic of China SH/T 0425-2003 and ASTM D6307 “Test Method for Wax content of the Asphalt ” and T0615-2011 “Asphalt Wax Content Test (Distillation Method)” in the industrial standard of People’s Republic of China JTG E20-2011 “Standard Test Methods of Bitumen and Bituminous Mixture for Highway Engineering ” .It is the specified equipment and matched with the “SYD-0615 Asphalt Wax Content Tester”,It also satisfies the needs of petroleum products .



Main technical features

This instrument adopts the mode of electric heating ,and the constant temperature can be  controlled the range of 550℃+10℃.The heating power can be adjusted continuously and it can satisfy the needs of the distillation of samples .

The instrument adopts heating furnace and elevator-platform.Two parts are independently and in use two is made one ,it is convenient to use .

The housing washer of heating furnace adopts humanized design of heat insulation and reduce the effect of the heat radiation to the operator .

The temperature controller adopts LCD display, single chip control technology. Advanced technology and small overshoot .It can reach to 550℃+10℃constant temperature ,which only needs 15 minutes at normal atmospheric temperature.



Main technical specifications

1. Power supply: AC(220±10%)V, 50 Hz

2. The electric furnace heating power: 2000W

3. Heating control: solid adjustable pressure model can be adjusted continuously.

4. Constant temperature control: 550℃+10℃

5. Ambient temperature: ≤35℃

6. Relative humidity: ≤85%

7. Total power consumption:≤2100W

8. Dimension: heating furnace: 220mm*330mm*400mm

            elevator-platform:150mm*1750mm*120mm

9. Weight: 5kg
