Application:

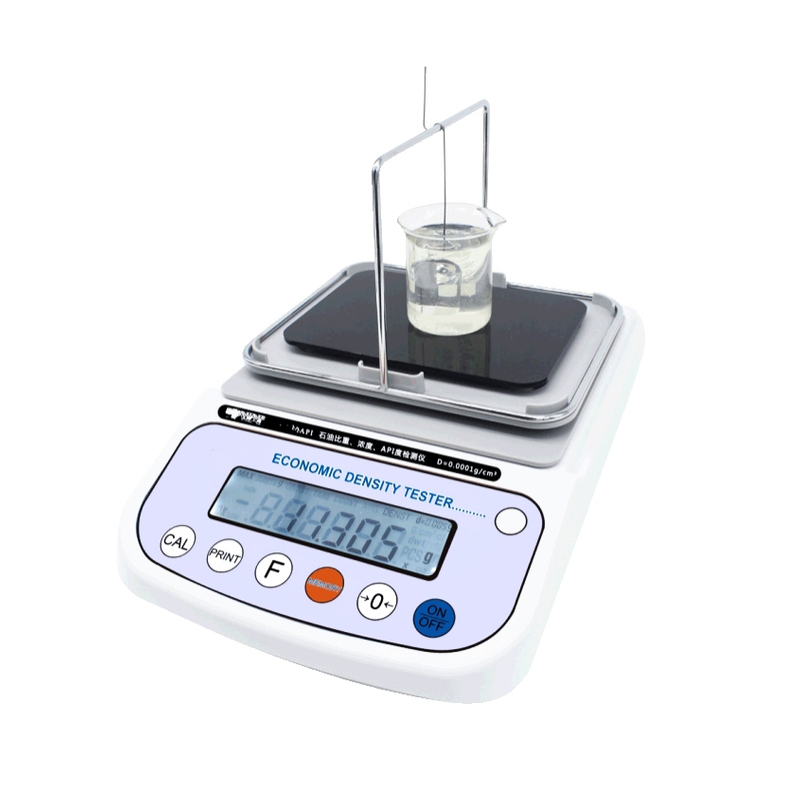

DST-120API petroleum specific gravity, concentration, API degree tester, as per ASTM D1298 , ASTM D4052 specification, adopts Archimedes liquid buoyancy method. It uses the latest special software for calculus and quickly read the specific gravity, API °, bucket per tonne, w / gal concentration. Is is applied in petroleum industry, energy research etc.
Technical Parameters
Model | DST-120 API |
Test range | 0.001g ~120g |
Test content | S.G, API°, bucket/ton, w/gal |
Test time | Operation by one button, only need 2 seconds |
Specific gravity precision | 0.0001g/cm3 |
API° range | 0~100 API° |
w/gal concentration range | 0.1%~100.0% |
Setting | Temperation conpensation setting, solution compensation setting, E1, E2 |
Standard port | RS-232 |
Function Feature
1. Just need 50cc, directly read petroleum specific gravity, API °, bucket per tonne, w / gal concentration.
2. With tupper and lower limits setting and equipped with a buzzer.
3. With quartz glass weight volume expansion coefficient compensation function.
4. With error (caused by the air buoyancy) compensation function.
5. Can work along with constant temperature water sink with higher measured data reliability.
Operation Steps
1. Use hook to put the weight into the beaker. Put the beaker on the support plate of density meter, then hang the hook to measuring rack. After stable, press “zero” key to deduct the weight.
2. Use hook to take weight and hang to measuring rack. After stable, press “memery” key to memorize the weight. It will immediately directly display the density of tested liquid. Press “F” key to convert the value. It displays in turn the specific gracity, API°, bucket per tonne and w / gal concentration of the tested petroleum.
