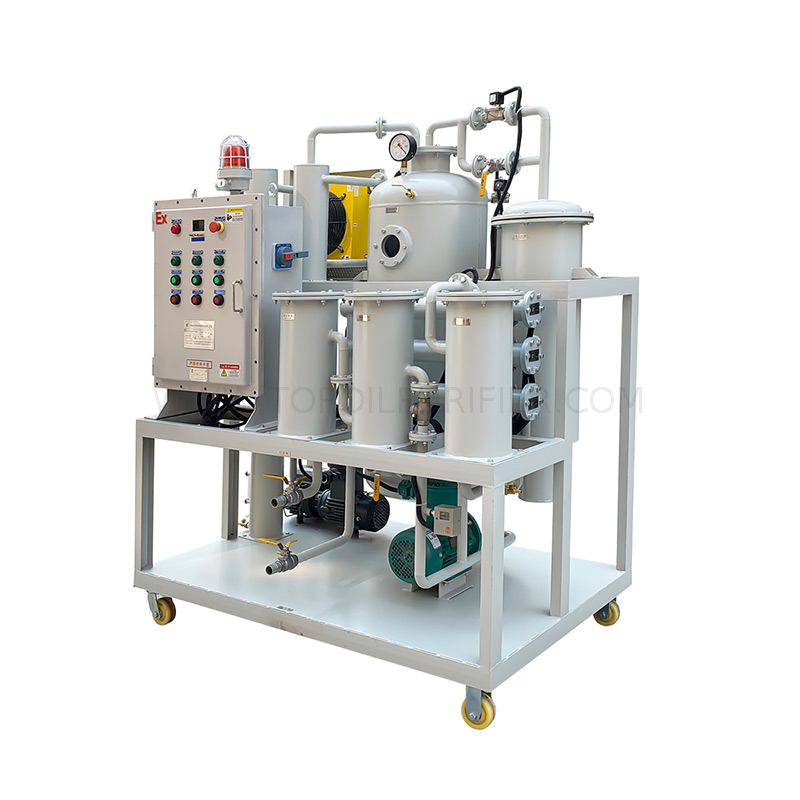

TYA -Ex Explosion-Proof Hydraulic Oil Cleaning Machine

Application：

Series TYA-Ex oil purifier machine adopts explosion-proof design.The explosion proof classes are ExdBT4,ExdCT4 and ExdCT6 respectively. It can meet requirement in various dangerous environments.

 It can remove free and dissolved water, dirt, and free and dissolved air/gases from hydraulic oil, gear oil, engine oil, compression oil, freezer oil, heat treatment oil, compressor oil, refrigeration oil and other industrial oils in metallurgy, machinery, oil field, chemistry, mine, electric power generation plant, transportation and manufacturing enterprises. TYA-Ex oil purifiers reduce system wear; improve on-line and system performance; extend fluid life and reduce fluid disposal costs and environmental risks.  TYA-Ex is explosion-proof type oil purifier. The explosion proof classes are ExdBT4 and ExdCT4 respectively. It can meet requirement in various dangerous environments.

To meet customers’ special needs, we develops:

• TYA Lubricating Oil Purifier Machine

• TYA -A Fully Automatic Lubricating Oil Purifier

• TYA -W Enclosed Lubricating Oil Purifying Unit

• TYA -Ex Explosion-Proof Hydraulic Oil Cleaning Machine

• TYD High Water Content Oil Water Separator

Features:

1. The plant is delivered ready for operation.

2. Super ability in breaking emulsion, dehydration and degassing process. Adopting big-cubage, reinforced three-dimension flash distillation column, thin film evaporation technique and large area multi-level separation technique so as to remove water, gas and light hydrocarbon material efficiently and quickly.

3. Adopting high-quality filter element and sealing material with corrosion proof, high temperature resistance and excellent mechanical strength, it is suitable even for purification process of high-viscosity oil under rather high temperature conditions and in this way expanding its application scope.

4. Fine and precision multi-stage filtration system can remove mechanical particulates thoroughly and effectively.

5. With air-cooling and condensation system, it can cool the air in the vacuum system efficiently and quickly, which avoids inconvenience of water-cooling.

6. Advanced high pressure protection device and infrared oil level control system for easy operation.

7. Perfect automatic and manual oil heating temperature controller, automatic cooling and separation device, simple, safe and reliable.

8. High quality electrical control cabinet, with high efficiency for heat transfer and anti-explosion.

9. The equipment can also be installed with digital flow meter and timer for auto calculating and recording oil volume and working time. (it’s optional according to user’s requirement)

10. The machine can be installed with two filtration systems for easy and quick change of filter element without stopping the machine.

Optional Features:

1. Fully Automatic Operation Controlled by Siemens Brand P.L.C (Programmable Logic Controller)

2. Flow Meter for auto calculating and recording oil volume and working time

3. Continuous Online Moisture in Oil Analyzer Model PTT-001)

4. Continuous Online Moisture and Particles in Oil Monitor(Model PTT-M)

5. Single/Double-axles Road worthy Trailer for Outdoor Use

6. Regeneration system TYR with special brand of earth can remove acidity, sludge, other soluble oil decay products and discoloration(not suitable for car engine oil)

Technical Parameter:
