Application:

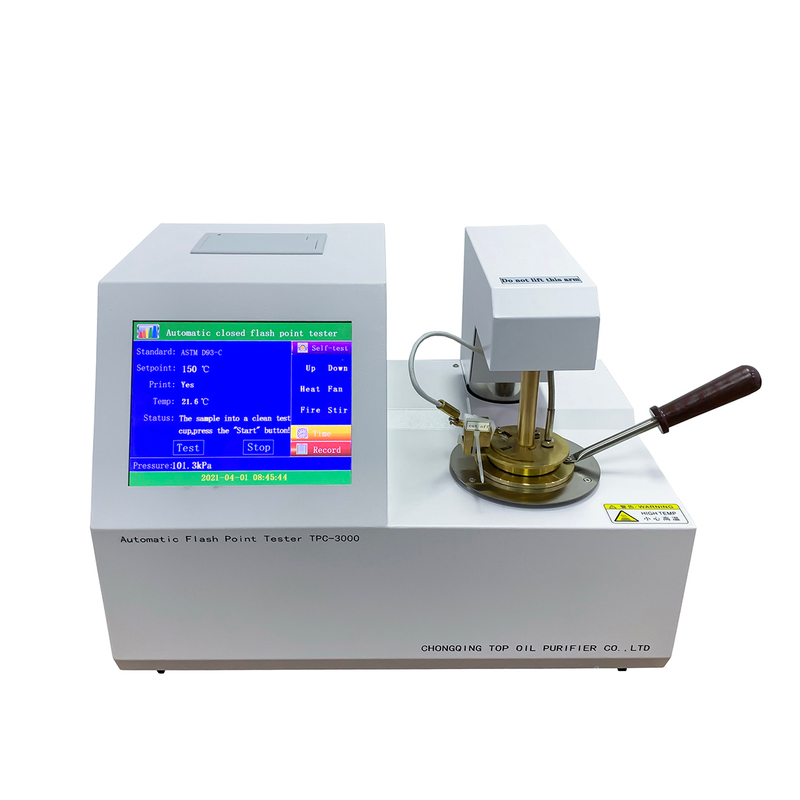

This fully automatic flash point analyzer(closed-up) is designed in accordance with ASTM D93 IGB261-2008, SH/T0315 etc. It adopts microcomputer technology that makes realization of completely automatic. This analyzer has the function of electronic ignition without air source, self fault checking ,high accuracy of testing, strong repeatability, stable and reliable performance, simple operation. It is an ideal flash point analyzer(closed-up) for petroleum,chemical,power station,environmental,railway,scientific research etc.
Features:
Color touch LCD screen display ,man-machine conversation interface in English with menu director
Adopts high speed signal processor: precision simulation/digital converter circuit
Adopts PID control algorithm: automatically adjust the heating curve according to standards
Built-in automatic atmospheric pressure detector: automatic to detect and correct the atmosphere pressure and self-adjust the flash point.
Aspiration,stirring,ignition,testing,alerting,cooling,printing are fully automatic.
Automatically detect the whole testing process, opening the lid, ignition, alerting, cooling, printing, etc.
Security airless source of platinum alloy to ignite:stable,reliable and high precision
Differential detection: automatic correction of systematic bias; automatic stop testing by over temperature detection and alert.
Equipped with parameters reminders like: test date, test time etc. 10.Data storage function: store 300 groups testing data.
Technical parameter:
Display | Color touch LCD display screen |
Test method | Thermocouple differential detection |
Test range | Room temperature-350°C |
Resolution | 0.1°C |
Repeatability | National standard: flash point<104°C, allowed ±1°C; flash point≥104°C allowed ±2°C National standard: flash point≤110°C, allowed ±1°C; flash point>110°C allowed ±2°C |
Printer | High speed thermal printer,paper size:55mm |
Temperature detection | Imported platinum resistance (Pt100Ω) |
Ignition mode | Automatically electronic ignition without need of gas source |
Self-checking | automatic fault checking |
Power consumption | <550w |
Temperature | Atmospheric temperature: 10°C-45°C,humidity: 30-80% |
Power | AC220V±10% |
Dimension | 397*305*240 mm |
Weight | About 15 kg |
