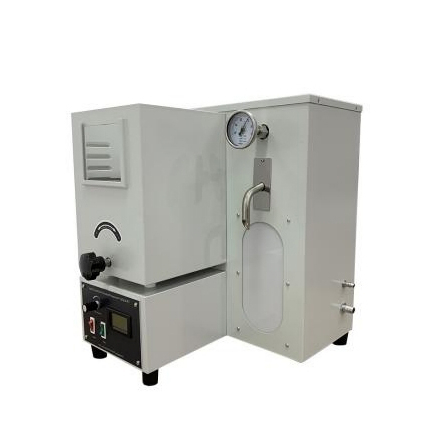

ASTM D86 Petroleum Products Distillation Tester Model TP-6536

  • TP-6536


This instrument designed and manufactured under the requirements of standard GB/T6536 in “Petroleum Products-determination of Distillation”, applicable to the distillation determination of gasoline, aviation gasoline, jet fuel vapor, special boiling point solvent, naphtha, diesel oil, distillate fuels, and some similar petroleum products according to standard GB/T6536.

The instrument is a low temperature, single-tube work distillation tester of petroleum products, is an ideal equipment in low temperature distillation tests.


Main technical characteristics:

The tester is adopt digital temperature controller, heater, cooler, electric mixer, which form a constant temperature bath, the uniform temperature in bath fully meet the requirements of tests.

Using a special form of furnace, to ensure the safe of tests; continuously adjustable heating power fully meet the requirements of tests.

This instrument is complete, easy to use, you can use it immediately after bought the instrument back.


Main technical parameters and indicators:

1. Power supply: AC 220V±10%,50Hz

2. Furnace heating power: 1000W

3. Cylinder volume: 100ml, indexing is 1ml

4. Distillation flask: 125ml, meet the requirements of GB/T6536

5. Thermometer: scale ranges -2~+300°C and -2~+400°C, indexing is 1°C

6. Flexible furnace panels: SiC board manufacturing, aperture are φ32、φ38、φ50

7. Temperature controller: a. temperature range: free set between 0~60°C

                        b. Temperature accuracy: ±0.5°C

                        c. Temperature display: LED digital display

8. Ambient temperature: ≤+30°C

9. Relative humidity: ≤85%

10. Cooling system: new refrigeration compressors
