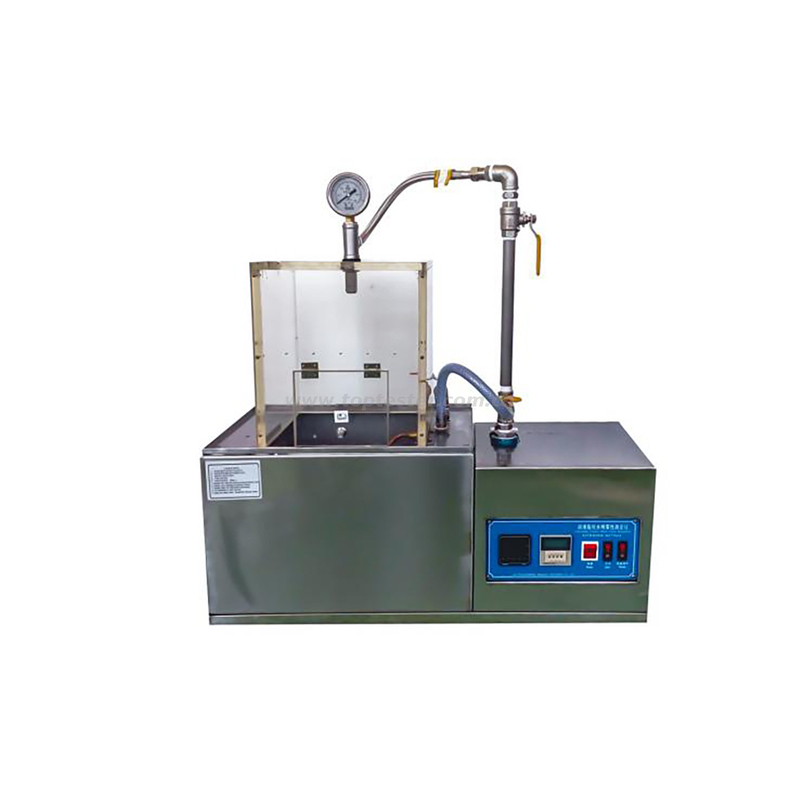

Grease Water Spray Resistance Tester TP-4049

Availability:
Quantity:
  • TP-4049

  • CHONGQING TOP

Principle

The principle of the grease water spray resistance tester is to apply grease to a stainless steel plate and use water spray at the specified test temperature and pressure. After 5 minutes, the spray weight loss percentage of the grease was measured as a measure of the water spray resistance of the grease.



Technical Parameters

Applicable standards:

ASTM D4049 SH/T0643

Working water pressure:

40psi±1psi

Water pressure control:

Bypass valve adjustment

Heating method:

Electric heating tube heating

Timing method:

Digital display timer

Working temperature:

38±0.2℃

Spray method:

Precision nozzle



Performance characteristics

Plexiglass spray box, easy to observe; precision pressure gauge displays spray pressure; magnetic pump circulates cooling medium, circulating pipe is equipped with insulation sleeve; digital display timer, control spray time; stainless steel plate meets standard requirements: 152.4×50.75×6.35mm ;Stainless steel mold meets the standard requirements: 203.2×76.2×11.11mm; stainless steel nozzle, nozzle diameter: Φ3.18mm; a bypass valve on the front of the pressure gauge to adjust the pressure: 40psi±1psi; microcomputer temperature controller, digital display, accuracy ±0.1 °C



Configuring single

No

name

Quantity

Remarks

1

Water spray tester

1 set


2

Stainless steel plate

1 piece


3

Mould

1 piece


4

fuse

1 piece


5

Manual

1 copy


6

Temperature control table instructions

1 copy


7

Certificate of conformity

1 copy
