Application

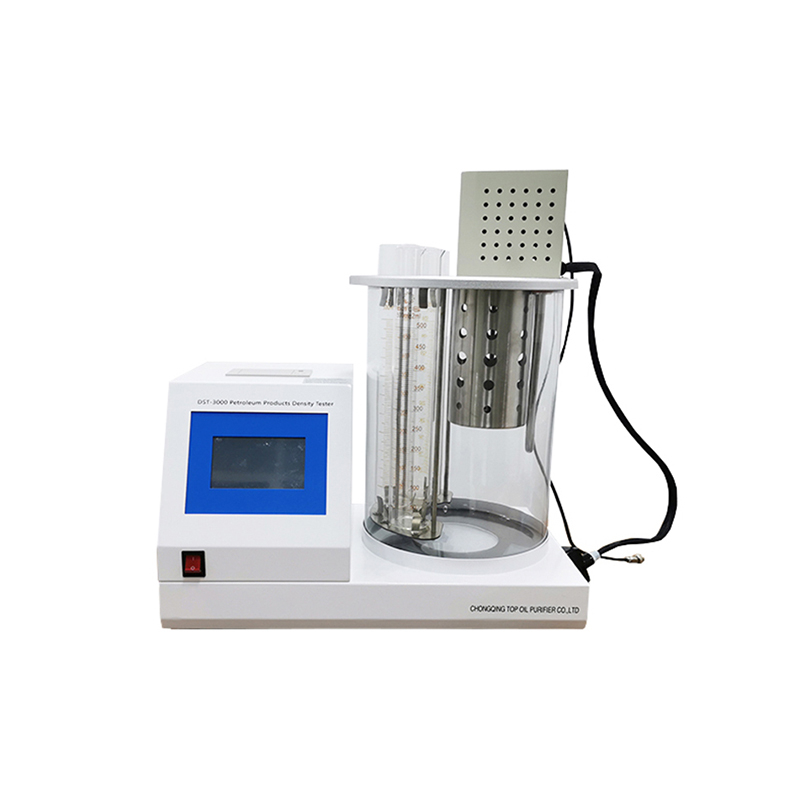

The petroleum products density laboratory equipment DST-3000 is designed and made as per national standard GB/T 1884-2000 “Test Methods for Density of Petroleum and Liquid Petroleum Products (Densimeter methods)”. The density tester is suitable to determine density of liquid petroleum products using a densimeter.
Working Condition
1. Ambient temperature: -10°C ~ +40°C; The temperature should not change more than ±2°C;
2. Relative humidity: ≤85%;
3. The instrument should be placed on a flat workbench during operation and please try your best to reduce air convection during a test.
4. If the instrument is not used for long time, please store it at a dry place.
Technical Parameters
Model | DST-3000 Petroleum Product Density Laboratory Equipment |
Power supply | AC 220V±10%, 50 Hz |
Bath cubage | Inner Dia.300 mm340 mm |
Test tube | 500 ml,1000ml(1000ml need to be customized) |
Heating power | 700 W, 1000 W |
Temperature controller | Temperature controlling range: 0 °C~100 °C |
Temperature controlling accuracy: ±0.1 °C |
Temperature sensor: Industrial platinum resistance; its scale number is Pt100 |
Thermometer | It is a total immersed mercury thermometer having scale division of 0.2 °C |
Ambient temperature | -10 °C~+40 °C, Temperature fluctuation ≤ 2 °C |
Relative humidity | ≤85% |
Dimension | 77*55*95cm |
Weight | 32kg |
