Features
1. With the function of automatic pipette, automatic injection, automatic measurement
2. A special precision metering pumps to ensure the accuracy of titration results
3. Three-way switching valve and the fluid path portion is made of special material
4. Excellent corrosion resistance, to ensure long-term continuous operation
5. The system was sealed well, which ensures bubbles doesn’t appears in fluid path
1. Measuring range: 0 ~ ± 1999 mv 2. Accuracy: ± 2mv 3. Titration Accuracy: ± 0.02mL 4. Input impedance:> 1012Ω 5. Ambient temperature: 5 ~ 40 ℃ 6. Relative humidity: ≤85% 7. Power supply voltage: AC 220V ± 10% 50Hz ± 10% 8. Power consumption: 20w Standard configuration | | | | | |
NO. | Name | Specifications/model | Unit | Quantity | Remark |

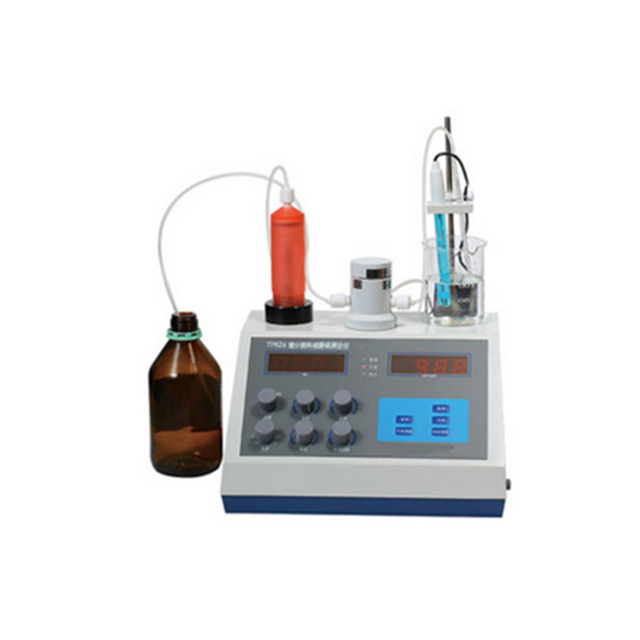

1 | The main instrument of mercaptan sulfur distillate fuel analyzer | TP624 | set | 1 | |
2 | Composite electrode | | | 1 | |
3 | Double salt bridge reference electrode | | | 1 | |
4 | Silver-silver chloride reference electrode | | | 1 | |
5 | Power line | | | 1 | |
6 | Glass electrode | | | 1 | |
7 | Platinum electrode | | | 1 | |
8 | Silver electrode | | | 1 | |
9 | Titrator mounts | | | 1 | |
10 | Stirring rod | | | 3 | |
11 | O-ring | | | 3 | |
12 | Buret | | | 2 | |
13 | Fuse | | | 1 | (installed inside the machine) |
14 | Polyethylene pipe | | set | 1 | |
15 | Certificate | TP624 | | 1 | |
16 | Warranty card | TP624 | | 1 | |
17 | Instruction | TP624 | | 1 | |
