Application

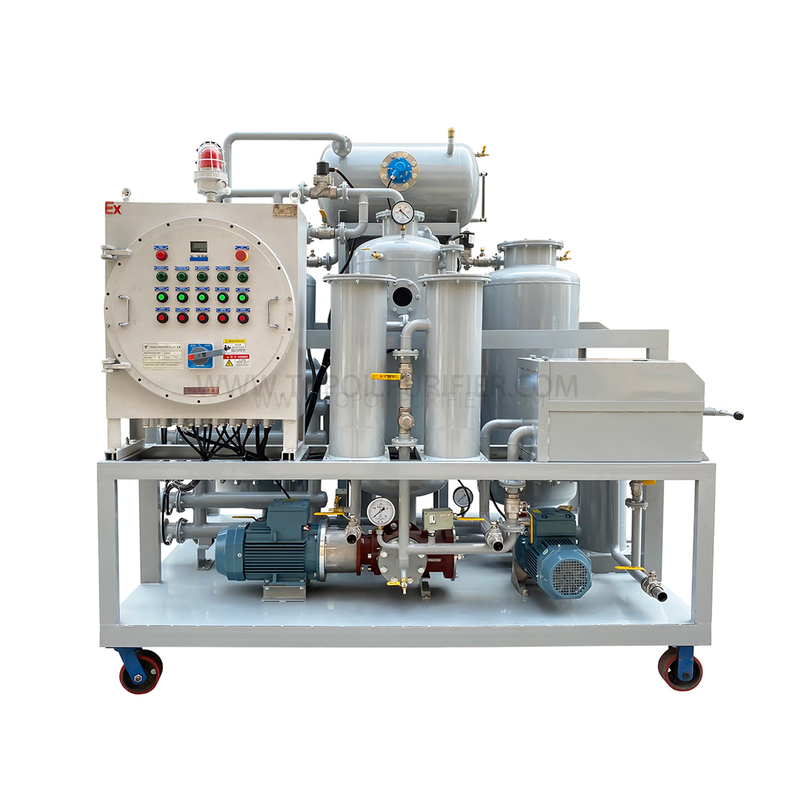

TYR-Ex series Explosion proof type oil decoloration machine can quickly remove out impurities, water, gases and recover the oil color to original color. This machine uses our special additive to discolor, which is purely natural and has high efficiency. It can treat hydraulic oil, machinery oil, coolant oil, cooking oil, coconut oil in oil field, mine, metallurgy, electricity, transportation, manufacturing, food industry. The treated oil is very clear and transparent. It can also be equipped with waste oil distillation plant to highly improve the dark color of base oil/diesel after distillation process. And it is asked by customer to pre-treat the used cooking oil before further biodiesel.
To meet customers’ special needs, we develops:
TYR Oil Purification and Discolor Machine
TYR-Ex Explosion Proof Fuel Oil Purification and Discolorization Machine
TYS Food Grade Cooking Oil Purification and Discolorization Machine
Features
This machine adopts the the latest micro-filtration technology,which is a multi-functional purification system with vacuum oil filter, fine filter and decoloring device.It uses pure physical treatment to remove water, gases, impurities and decolor,which will not affect the composition and performance of the oil. Equipped with chain protection device, the machine is easy to operate, safe and reliable.
Technical Parameter:
Parameters | Unit | TYR -Ex-1 | TYR -Ex-2 | TYR -Ex-3 | TYR -Ex-5 | TYR -Ex-10 | TYR -Ex-15 | TYR -Ex-20 | TYR- Ex-30 | TYR -Ex-50 |
Treatment Capacity | T(/d) | 1 | 2 | 3 | 5 | 10 | 15 | 20 | 30 | 50 |
Power Supply |
| 380V/50HZ/3Phase（Customizable） |
Working Noise | dB(A) | ≤65 |
Trouble-free Working Time | H | ≥ 4000 |
Continuous Working Time | H | ≥150 |
Inlet (outlet) caliber | mm | Ф25 | Ф25 | Ф25 | Ф32 | Ф42 | Ф42 | Ф50 | Ф50 | Ф60 |
Weight | kg | 1500 | 2000 | 2500 | 3000 | 3500 | 4000 | 4500 | 5000 | 5500 |
Size | Length | mm | 1800 | 1850 | 1900 | 1950 | 2000 | 2200 | 2300 | 2400 | 2500 |
Width | mm | 1300 | 1350 | 1400 | 1450 | 1500 | 1600 | 1600 | 1700 | 1800 |
Height | mm | 2300 | 2300 | 2300 | 2400 | 2500 | 2700 | 2700 | 2700 | 2700 |
Guarantee value | Color | L | ≤ 1-3 |
Impurity | μm | ≤1(Customizable) |
Water | ppm | ≤100 |
Gas content | ≤0.1% | ≤15(GB/F 7305) |
Cleanliness | Grade | ≤6(NAS1638) |
