TOP OIL PURIFIER
Application:

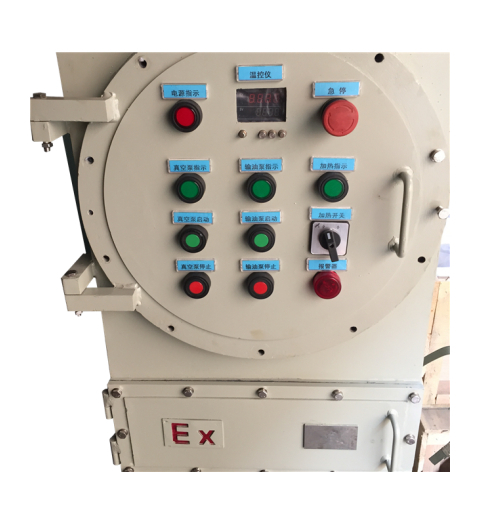

This machine is mainly used for precision filtration of mechanical impurities for various engine oil, lubricating oil, machinery oil, hydraulic oil, insulating oil etc. It can also be used for oiling in long distance and high lift. For operation environment which requires explosion-proof machine, JL-Ex type is designed accordingly. The explosion proof classes are ExdBT4 and ExdCT4 respectively. It can meet requirement in various dangerous environments.
Features:
It has three-stage filters, light and flexible, easy to operate, no need of filter paper, pollution free to the site. It has wider application and longer service life than ordinary pressure type filter machine. It is a newly type of plate pressure oil filter machine. <o:p>
Application:
This machine is mainly used for precision filtration of mechanical impurities for various engine oil, lubricating oil, machinery oil, hydraulic oil, insulating oil etc. It can also be used for oiling in long distance and high lift. For operation environment which requires explosion-proof machine, JL-Ex type is designed accordingly. The explosion proof classes are ExdBT4 and ExdCT4 respectively. It can meet requirement in various dangerous environments.
Features:
It has three-stage filters, light and flexible, easy to operate, no need of filter paper, pollution free to the site. It has wider application and longer service life than ordinary pressure type filter machine. It is a newly type of plate pressure oil filter machine. <o:p>
Type | Flow rate | Lift | Filtering precision | Engine power | Power supply | Weight |
| (L / min ) | ( m ) | μm | (KW) | 3Ph,50Hz,380V | (Kg) |
JL-Ex-32 | 32 | 20 | 5 | 1.1 | 60 | |
JL-Ex-50 | 50 | 20 | 1.1 | 70 | ||
JL-Ex-80 | 80 | 20 | 2.2 | 135 | ||
JL-Ex-100 | 100 | 20 | 2.2 | 150 | ||
JL-Ex-150 | 150 | 20 | 3 | 180 | ||
JL-Ex-200 | 200 | 20 | 4 | 220 | ||
JL-Ex-300 | 300 | 20 | 4 | 250 |
Type | Flow rate | Lift | Filtering precision | Engine power | Power supply | Weight |
| (L / min ) | ( m ) | μm | (KW) | 3Ph,50Hz,380V | (Kg) |
JL-Ex-32 | 32 | 20 | 5 | 1.1 | 60 | |
JL-Ex-50 | 50 | 20 | 1.1 | 70 | ||
JL-Ex-80 | 80 | 20 | 2.2 | 135 | ||
JL-Ex-100 | 100 | 20 | 2.2 | 150 | ||
JL-Ex-150 | 150 | 20 | 3 | 180 | ||
JL-Ex-200 | 200 | 20 | 4 | 220 | ||
JL-Ex-300 | 300 | 20 | 4 | 250 |
