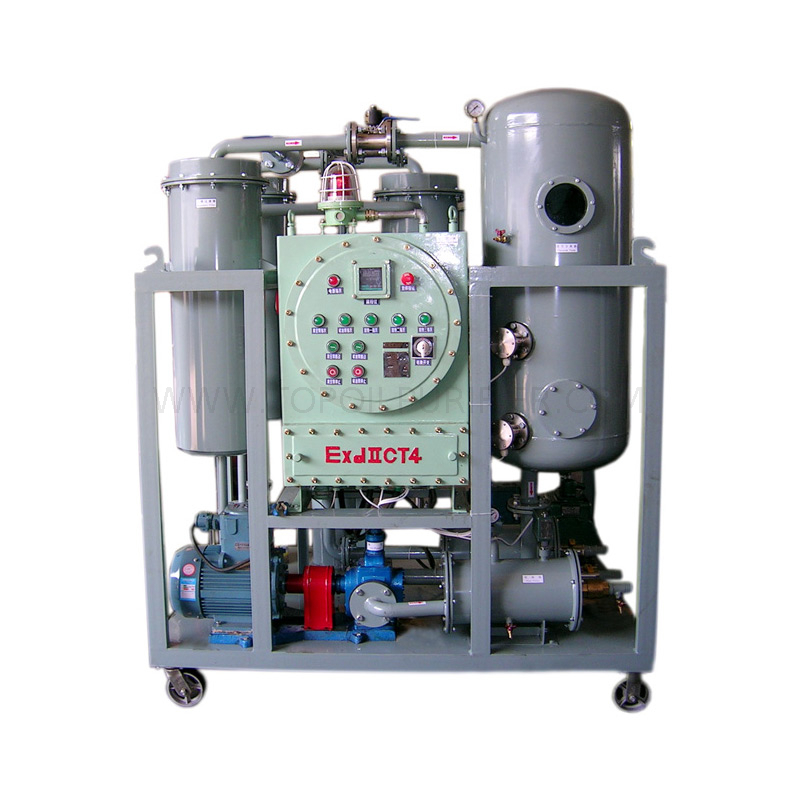

TY-Ex Explosion-Proof Turbine Oil Filter Machine

Availability:
Quantity:

Application:

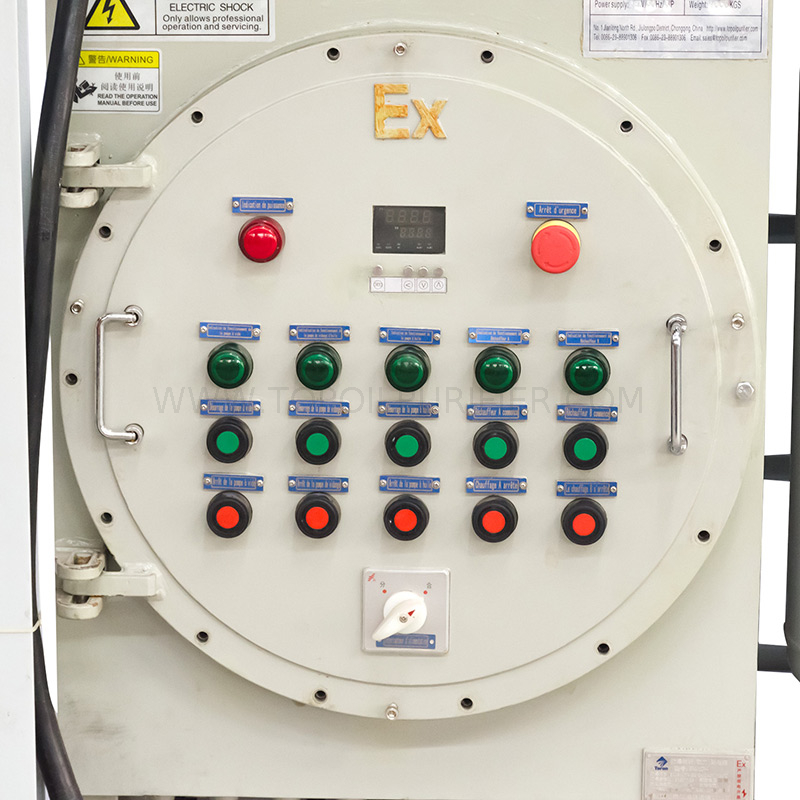

TY-Ex turbine oil purifier adopts explosion-proof design.The explosion proof classes are ExdBT4 and ExdCT4 respectively. It can meet requirement in various dangerous environments.

It applies to on-line processing of the turbine oil of the steam engine, gas turbine and water turbine in the field of electricity, chemicals, paper making, metallurgical industries. It can not only ensure the regular work of adjusting system and lubricating system, but also purify low viscosity oil and coolant oil.


To meet customers’ special needs, we develops

  • TY Turbine Oil Purifier

  • TY-A Automatic Turbine Oil Purifier with PLC

  • TY-Ex Explosion-proof turbine oil purifier for different requirements and working conditions

  • TY-W Enclosed type turbine oil purifier which can prevent rain, sun, dust

  • TY-M Mobile outdoor type turbine oil purifier which can move and operate on-site

  • TY-C Turbine Oil Purifier with Coalescence Separation Filter


Features:

1. TY-Ex is explosion proof type

2. it is strong ability of dehydration and breaking emulsion, that is easy to separate the great moisture and tiny moisture out of the used oil. Because of the special break emulsion device (water separator), the emulsified oil could be treat and become transparent.

3. It is strong ability of removing impurities, that is the big area and deep-seated accurate filtration material can eliminate the tiny particles from used oil that could replace oil system clean device, make great polluted oil system recovered and meet “the operating turbine oil pollution control standard”

4. It is strong ability of automatic, safe and reliable operation. This model is used float ball level automatic control device that realizes auto working completely without manual labour, leads to a simple and stable operation.

5. Thus, TY series is specially fit for applying to filter turbine oil, hydraulic oil and the low viscosity oil that contains lots of water or tiny particles which need to be precisely processed.

6. Advanced infrared oil level control system and pressure protection device make operation simple and safe.

7. It can purify any kinds of turbine oil used in steam turbine and water turbine online and onsite.

8. Air cooling system helps cool down air and gases from the flash distillation column so as to extend the service life of vacuum pump, avoiding the inconvenience of water cooling.

9. Adopts interlocked protective system, which connected oil pump, heater, and oil level sensor, avoiding blank pumping, oil leak and electricity leak. If there is any fault, machine will be power off automatically.

10. High quality and low noise oil pump
9. Hi-automatization operation, convenience, reliable, and safety


Optional Features:

1. Fully Automatic Operation Controlled by Siemens Brand P.L.C (Programmable Logic Controller)

2. Flow Meter

3. Continuous Online Moisture in Oil Meter Model PTT-001)

4. Continuous Online Moisture and Particles in Oil Monitor(Model PTT-M)

5. Metallic Weather Proof Enclosure to prevent rain, sun, dust ect.,

6. Single/Double-axles Road worthy Trailer for Outdoor Use


Parameter:

Technical Parameter

Item

Unit

TY-Ex

-10

TY-Ex

-20

TY-Ex

-30

TY-Ex

-50

TY-Ex

-100

TY-Ex

-150

TY-Ex

-200

TY-Ex

-250

TY-Ex

-300

Flow rate

L/min

600

1200

1800

3000

6000

9000

12000

15000

18000

Flow rate

L/H

600

1200

1800

3000

6000

9000

12000

15000

18000

Working vacuum

Mpa

-0.06 ~- 0.098

Working pressure

Mpa

≤0.3

Temperature Range

0~100

Working Oil Temperature

45~65

Power supply


380V/50HZ/3Ph 5 wire(as customer’s requirement)

Continuous working time

H

≥150



Working noise

dB(A)

≤65

≤68

≤68

≤70

≤70

≤75

≤75

≤78

≤80

Electric heating power

kW

15

18

24

36

60

72

120

150

180

Total electric power

kW

17

20

26

39

65

79

128

180

192

Outlet(inlet) caliber

mm

Ф25

Ф25

Ф25

Ф32

Ф42

Ф45

Ф50

Ф60

Ф63

Weight

kg

350

400

450

500

900

1300

1500

1800

2000

Size

L

mm

1350

1400

1450

1500

1700

1800

2000

2100

2400

W

mm

950

1000

1050

1100

1150

1250

1400

1450

1550

H

mm

1650

1700

1750

1800

1800

2000

2200

2300

2400

Index after filtering

Moisture content

PPM

≤50

Gas content

%

0.1

Impurity size

μm

≤1(Customerizable)
