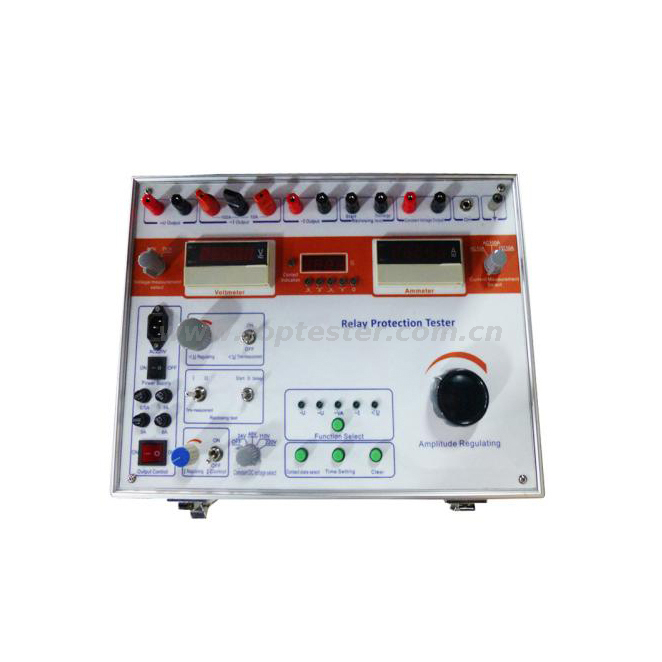

General Relay Protection Tester RPT-III

Availability:
Quantity:
  • RPT-III
  • CHONGQING TOP

General Introduction

RPT-III Relaying protection tester is applied to test protection replay based on  voltage and current operation. The main function of the tester include calibration of voltage and current operation relays, secondary circuit inspection, trip value of circuit breaker test, switch on and off time measurement of circuit breaker and so on. Its a low cost, simple operation and reliable performance device for secondary circuit test.



Technical Index

1. DC voltage output: 0350(V)continuity , maximum capacity output:960VA

2. AC voltage output: 0350(V)continuity , maximum capacity output: 400VA

3. The voltage and current characteristic test for relay coil

Maximum voltage output is 240V and maximum current output is 5A.The duration time at maximum current is not more than 3 minutes.

1. DC current output:0-10A  continuity, maximum capacity output:80VA

5. AC current output: 0-10A (at maximum voltage 40V)  0-100A((at maximum voltage 14V)  capacity:1000VA  Continuity Output time35S

6. AC voltage circuit short connection simulation: voltage output setting120V,range15~80%.

7. DC constant voltage alternating output(can be used as operating power of static relay)

Output Voltage: 24V48V110V220Voutput current: 0.4A

8. Tester Overload protection

a. DC/AC voltage output circuit:5A fuse

b. DC constant voltage output circuit:0.5A fuse

c. 6A fuse for tester power supply

9. DC/AC voltmeter and ammeter adopt 4-1/2 digit to transfer,accuracy:0.5 grade

10. Digital timer: 0.000~9999s error: mantissa ±2 digit

11. Symbol definition for time measurement

close operation for open contact from open state

close operation for close contact from open state

 open operation for open contact from close state

open operation for close contact from close state

D   relay operation value test

12.Others

a. Power supply: 220V±10%50Hz

b. Temprature: -20~+40

c. Humidity:85%(15~25)
