Mobile Transformer Oil Purification Equipment

Application
Series ZYD Double-Stage  Vacuum Transformer Oil Purification Systems is used for transformer oil dehydration and transf or mer oil dega s ification as well as other electrical insulating liquids such as silicone fluids  with modern technique . The  ZYD  Process is able to increase and maintain the oil's dielectric strength and includes the removal of free and soluble water, free and dissolved air and gases  and other particulate matter.  The standard  ZYD  system is designed for processing oils in workshops, in storage tanks or directly in transformers (energized or de-energized transformers).  T he system is  mounted on a leak proof base and is  installed and operated on a trailer .
Series ZYD  oil purifier is  used as an independent vacuum source with functions of vacuum drying and vacuum oiling

Regular servicing of transformers with our equipment can substantially improve their lifetime and performance and on top helps to save money.
To meet customers’ special needs, we develops:
ZYD Double Stage Vacuum Insulating Oil Purification Machine
ZYD-A PLC Fully Automatic Transformer Oil Filtration Machine

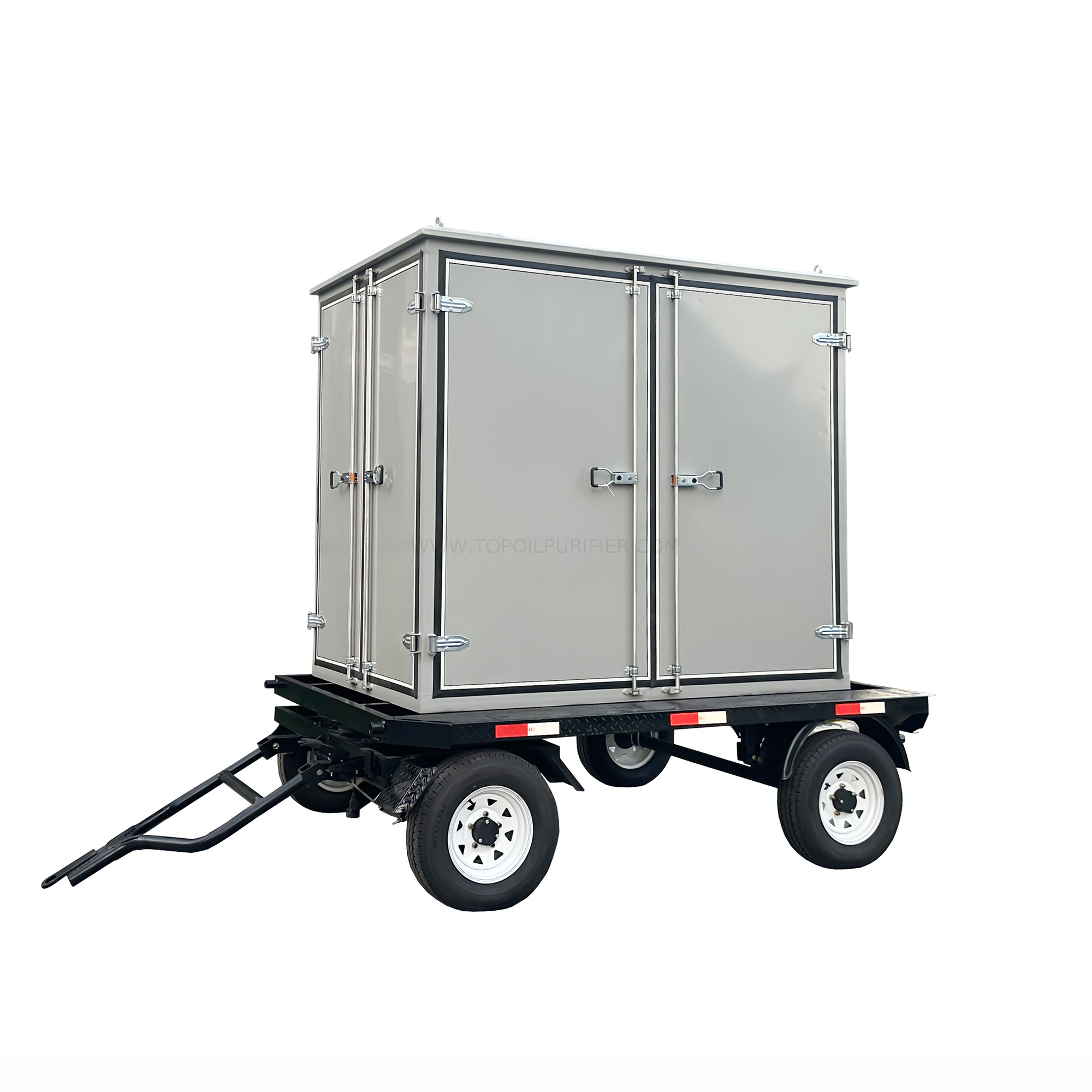

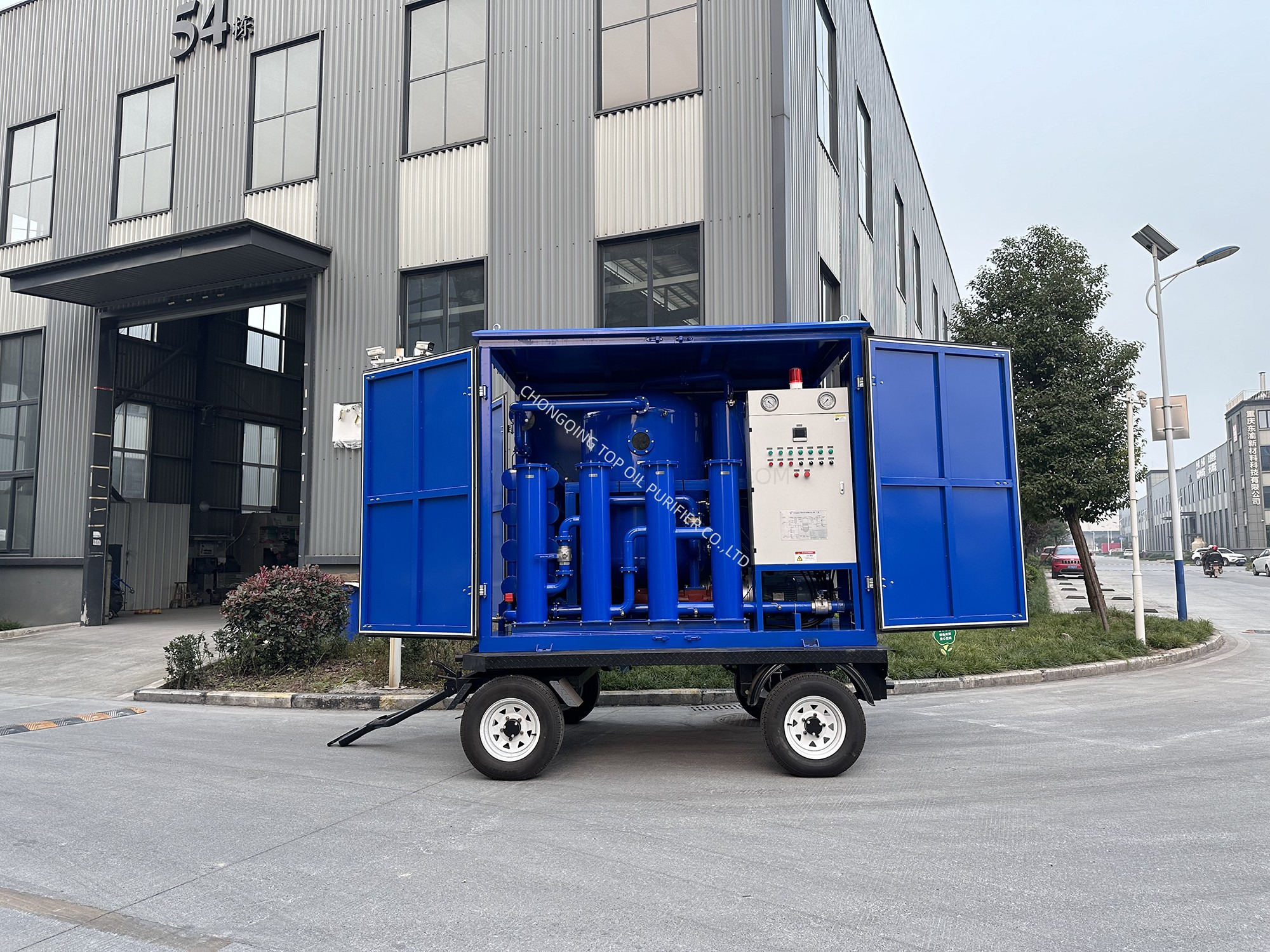

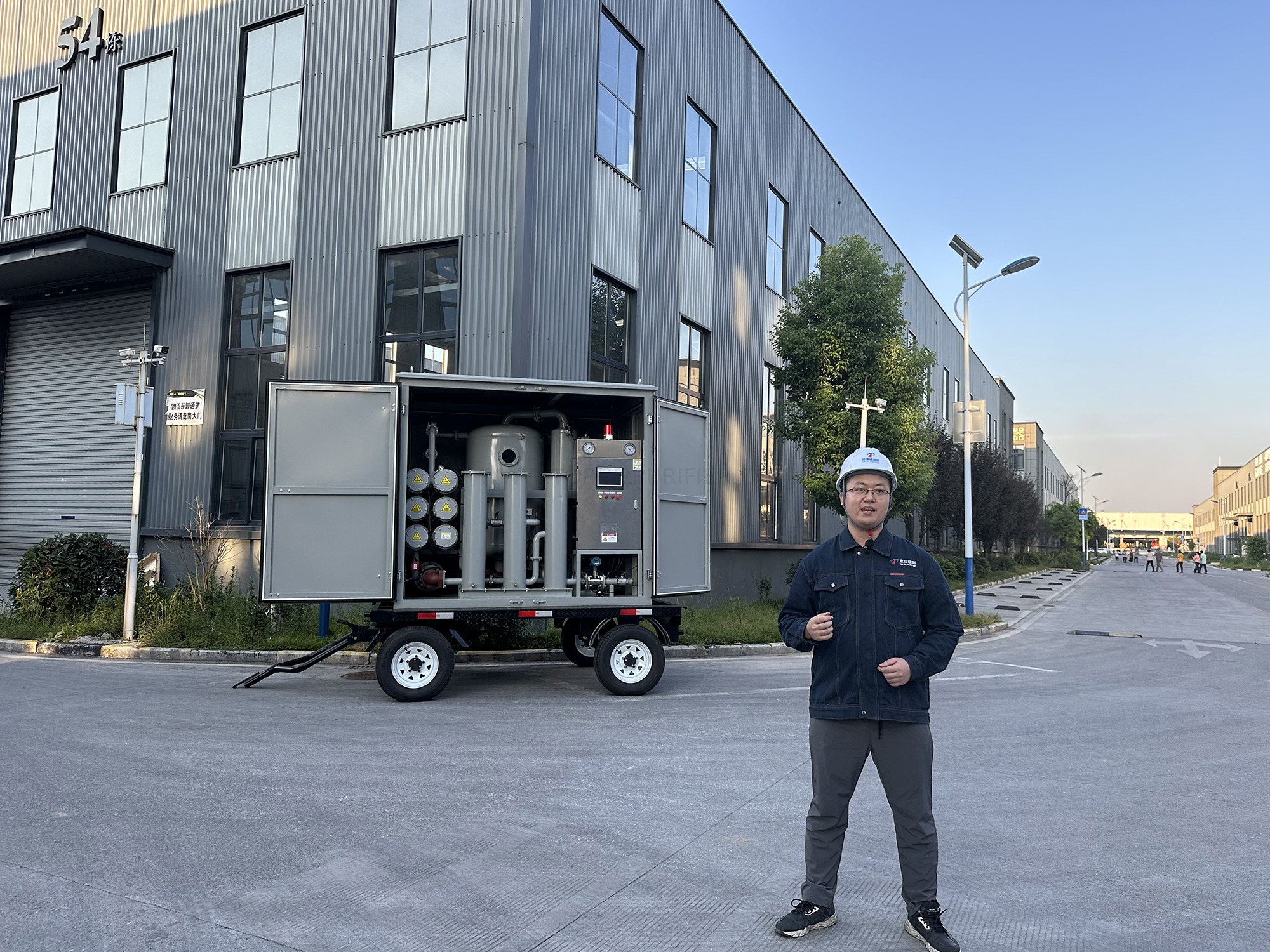

ZYD-M  Outdoor Mobile Transformer Oil Purification Plant
ZYD-W Fully Enclosed Insulating Oil Purifier Machine
ZYD-S Trailer Open Type Transformer Oil Cleaning Machine
ZYD-Ex Explosion-Proof Vacuum Transformer Oil Purifier

The new line of oil treatment plants Type ZYD , with variable flow capacity, is designed for most economical conditioning and drying of insulating oils. The plants are designed for the following applications:
1.  The plant is delivered ready for operation.
2.  Degassing, dehydration and filtering process if various kind of insulation oils in electrical transformers and circuit breakers through put in one or several passes
3. There are six vacuum pumps for plant ZYD (2 vacuum pumps of 630 m⊃3;/h, 2 roots pumps of 2000 m ⊃3; /h, 2 roots pumps of 4000 m ⊃3; /h), which can improve the vacuum value highly. Making sure the water-content of the treated oil is less than 1 PPM.
4. All oil treatment plants, type ZYD  are equipped with an automatic Anti-Foam Control System.
5. The plant is equipped with built-in control and safety devices, which provides for a maximum operating security.
6. Minimised power consumption through optimised degassing (excellent efficiency factor).
7. Filter housing for 0.5 micron, 20 micron and 80 micron filter cartridges.
8. Automatic supervision of the degree of contamination of the fine filter cartridges
9. ZYD  can evacuate the  vacuum for the electric equipment separately , such as the transformer. Also it can be used to dry the electric  equipment and input  the oil into the electric  equipment under the vacuum state.
10. The machine adopts the double-infrared liquid automatic controller, pressure automatic- protector  which  can make sure the machine works online for 150 hours continuously  without person. So it is a reliable and  high automatically machine.
11. Adopt interlocked protective system, which connect oil pump, heater and liquid level sensor, avoiding blank heating, blank pumping, oil leak and electricity leak. If there is any fault, machine will be power off automatically.
12. Functions of live line work on - site, vacuum drying and vacuum oiling

Optional Features
1.  Siemens Brand  P.L.C  (Programmable L ogic C ontroller)
2.  Flow Meter
3.  Continuous Online Moisture  in Oil Analyzer Model PTT-001)
4.  Continuous Online Moisture  and Particles in  Oil Monitor (Model PTT-002)
5.  Metallic Weather Proof Enclosure
6.  Double-axles trailer for outdoor use
7. Regeneration system TP BZ with special brand of earth can remove acidity, sludge, other soluble oil decay products and discoloration

Expectations on an effective oil plant for treatment of insulating oil:
·  Low moisture content at plant outlet.
·  Low gas/air content at plant outlet.
·  Elimination of residual gas from the insulation.
·  Drying of transformer insulation.
·  Easy and failsafe operation.
·  On-line measuring and recording of process parameters.


Parameters		Unit	ZYD-M-30	ZYD-M-50	ZYD-M-100	ZYD-M-150	ZYD-M-200	ZYD-M-250	ZYD-M-300
Flow Rate		L/H	1800	3000	6000	9000	12000	15000	18000
Working vacuum		MPa	-0.08 ～ -0.099
Working Pressure		MPa	≤0.3
Temperature Range		℃	20 ～ 80
Power			AC380V/50HZ/3Ph 5 wire (can be customized)
Working Noise		dB（A）	68	70	70	75	75	75	75
Heating Power		kW	24	36	72	96	120	140	180
Total Power		kW	27	40	80	104	130	150	196
Inlet/Outlet		mm	φ25	φ32	Φ38	Φ45	φ50	φ60	φ63
Weight		kg	600	800	1200	1400	1500	1700	1900
Overall	L	mm	1550	1650	1900	2000	2100	2150	2200
	W	mm	1100	1250	1350	1400	1500	1550	1600
	H	mm	1850	2000	2100	2050	2150	2150	2200
Index after filtering	Breakdown Voltage	kV	≥75
	Moisture content	PPM	≤3
	Gas content	%	≤0.1
	Impurity size	micron	≤1 (no free carbon)
	Value β	%	98
