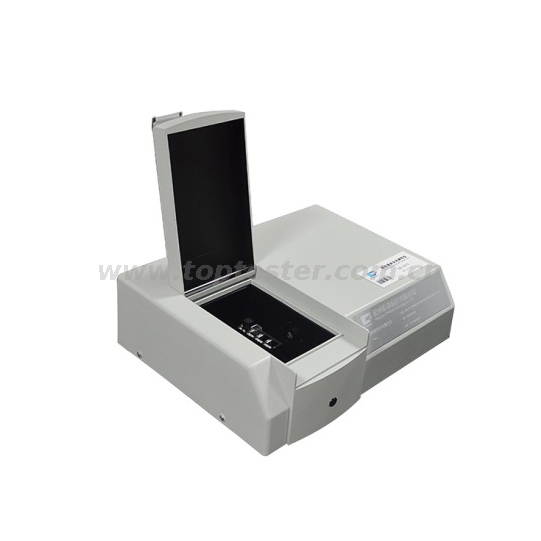

Benchtop Spectrophotometer TP-810

Availability:
Quantity:
  • TP-810

TP-810 Transmittance spectrophotometer is good performance and specially designed for testing the transparent materials transmittance, absorbance, concentration, chromaticity value and other parameters.



The instrument adopts the geometry of D/0, integration of the full band LED composite light source, double beam optical system, ETC every-test calibration technology, which makes the instrument reaches a resolution of 0.0001, deviation of the transmittance within 0.08% and chromatic value △E*ab 0.015.



Technical Data

Type

TP-810

Illumination

d/0(Diffused illumination, 0°viewing)
SCS optical engine(light splitting and integration system),( conform to CIE No.15, ISO 7724/1, ASTM E1164,DIN 5033 Teil7, JIS Z8722 Condition c standards)

Size of integrating sphere

Φ40mm,Alvan diffused reflection surface coating

Illumination Light source

CLEDs(entire wavelength balanced LED light source)

Sensor

dual light path sensor array

Wavelength range

400-700nm

Wavelength interval

10nm

Half spectral width

5nm

Reflectivity range

0-200%

Reflectivity resolution

0.01%

Observation angle

2°/10°

Measurement light source

A,C,D50,D55,D65,D75,F1,F2,F3,F4,F5,F6,F7,F8,F9,F10,F11,F12

CWF,U30,DLF,NBF,TL83,TL84

Data being displayed

Transmittance graph/value, chromatic value, color difference values, color assessment results, color tendency, history color value simulation, manual input standard sample, generate measurement reports

Measurement time interval

2 seconds

Measurement time

0.5 seconds

Color space

CIE-L*a*b,L*C*h,CIE-L*u*v, XYZ, Yxy, Transmittance, Hunterlab, Munsell MI, CMYK

Color difference formulas

ΔE*ab,ΔE*CH,ΔE*uv,ΔE*cmc(2:1),ΔE*cmc(1:1),ΔE*94,ΔE*00

ΔEab(Hunter),555color classification

Other colorimetric indices

WI(ASTM E313-10,ASTM E313-73,CIE/ISO, AATCC, Hunter, Taube Berger, Ganz, Stensby),

YI(ASTM D1925,ASTM E313-00,ASTM E313-73),

Tint(ASTM E313-00,CIE,Ganz),Metamerism index Milm, Stick color fastness, Color fastness, APHA Hazen, Pt-Co, Gardner, Saybolt, Astm color

Repeatability

light splitting reflectivity: standard deviation within 0.08%

color values:ΔE*ab<=0.015(After calibration, standard deviation of 30 measurements on test white board, 5 second intervals,Maximum: 0.03)

Interface

USB

Data storage

mass storage

Light source longevity

5 years, 1.5 million tests

Size

475*340*150mm(L*W*H)

Weight

about 7kg

Work temperature range

0~45°C, relative humidity 80% or below( at 35°C ),no condensation

Storage temperature range

25°C to 55°C,relative humidity 80% or below(at 35°C ), no condensation

Standard accessories

AC power line, color management software, drive software, USB cable, black calibration tube, 40*10mm cuvette
