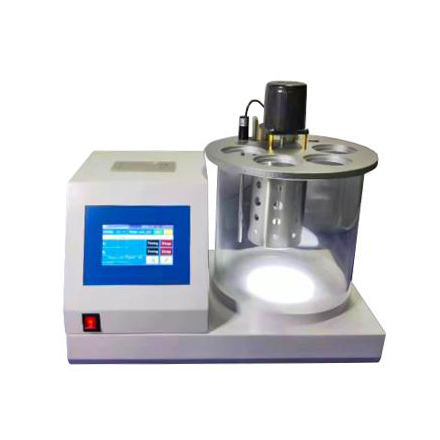

ASTM D445 VSDT-3000 Type Viscosity Density Tester

Availability:
Quantity:
  • VSDT-3000
  • CHONGQING TOP

The instrument is suitable for GB265-88, GB1814, ASTM D445, ASTM D4052,IP71, GB/T1884 "Petroleum and Liquid Petroleum Product Density Determination Method (Density Meter Method) and other standards. It adopts advanced single-chip microcomputer control and color screen Chinese prompt operation. The measurement results are automatically Storage, high-speed thermal printer automatically prints results, constant temperature bath temperature.



Main feature:

1. Advanced MCU control, intelligent temperature control, color LCD display, menu prompt input

2. Using unique modular technology, no matter low viscosity or high viscosity range can be measured

3. Timely display the working status of the instrument such as temperature, time, parameters, etc.

4. The capillary gauge card adopts three-point vertical type, which is flexible and convenient to operate, and reliable in clamping

5. Automatically calculate the kinematic viscosity value and test average, and automatically print and store the measurement results

6. Can choose viscosity\density switching function by yourself.



Technical Parameters:

Executive standard: GB265-88, GB1814, ASTM D445, IP71 and GB/T1884 "Determination of density of petroleum and liquid petroleum products (densitometer method)

Capillary, viscometer: in line with SH/T0173-92 "Technical Conditions for Glass Capillary Viscometer";

Comply with JJG155 "Verification Regulation of Working Capillary Viscometer"

Display mode: 5.7 inch LCD touch screen display

Temperature control range: any setting from room temperature to 100°C;

Measuring range: Kinematic viscosity measuring range: 0.5~20000mm2/s

Dynamic viscosity measurement range: 0.3~40,00000 mPa.s

Temperature control accuracy: 0.01°C

Timing accuracy: ±0.1S

Timing range: 0.1 second-999.9 seconds

Thermostatic bathtub: 250*300mm

Printer: Low energy consumption thermal printer, paper width 55mm

Sample loading quantity: 3;

the instrument comes standard with 3 viscosity capillaries; 3 density measuring cylinders; one set of density meters (nine)

Operating environment: Ambient temperature 15--35°C Ambient humidity is less than 85%

Power requirements: 220V ac±10%50Hz±1Hz
