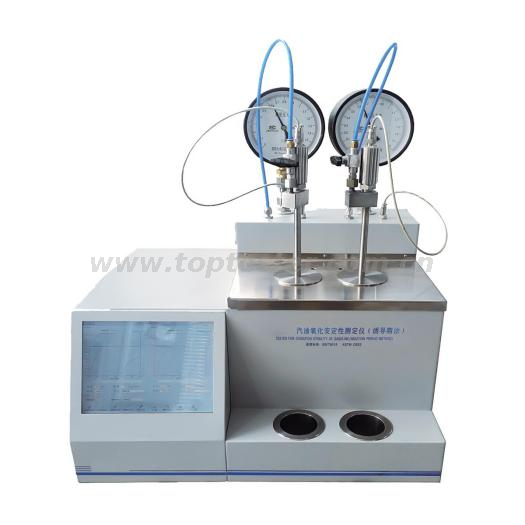

ASTM D525 Automatic Gasoline Oxidation Stability Tester Model TP-108

Availability:
Quantity:
  • TP-108
  • CHONGQING TOP

Application:

TP-108 automatic gasoline oxidation stability tester is designed and manufactured in accordance with GB/T 8018-2015 and ASTM D525. It is suitable for determining the oxidation stability of gasoline under accelerated oxidation conditions and determining the length of gasoline storage period. The random configuration includes the necessary parts for the test which can be completed without additional spare parts. All key components are imported, such as industrial computers, pressure sensors, etc., which greatly guarantees the accuracy of the data and the stability of the instrument.



Software performance:

The instrument can operate independently or connect to multiple PCs through HLIS/ALAN to control. The operator can choose quick method or built-in operating instructions to define the test process. It can store 200 groups of data reports, displaying, printing and making LIMS transmission of customized design test reports.

The pressure curve and pressure drop curve are displayed during the test. After the completion of the test, the data can be saved.

The instrument can convert the average temperature of the entire oxidation time to ensure the accuracy of the experimental results.

The instrument has a built-in diagnostic program that can check every core component and functional block of the instrument.

The sample temperature and pressure test system can be calibrated automatically. You can calibrate the temperature and pressure through the screen

Hierarchical access prevents random modification of the parameters of the test program.

When there is a blue screen, system crash, etc. during use, the instrument has a one-key recovery function and retains the original test data and setting procedures.

Features:

Embedded computer, imported industrial computer, 10.4-inch large-screen LCD display, full Chinese operating system, fully automatic completion of all experimental processes after sample loading, built-in WINDOWS operating system, and external printer.

Advanced metal bath overcomes the problem of different boiling points caused by different atmospheric pressures in different regions and has the advantages of fast temperature rise, high precision and no need for conversion, etc.

The instrument uses a solenoid valve to complete the oxygen charging and discharging of the oxygen bomb, which makes the operation process simple and easy. The solenoid valve connection adopts a hard connection method to avoid system leakage to the greatest extent.

The pressure curve and pressure drop curve are displayed during the test. After the completion of the test, the data can be saved.

Close the oxygen shut-off valve directly after oxygenation to avoid micro-leakage of the system affecting the experimental results.

The oxygen bomb adopts advanced hand-spinning technology to seal, ensuring good internal sealing performance of the oxygen bomb without special tools.

The instrument can convert the average temperature of the entire oxidation time to ensure the accuracy of experimental results.

The oxygen bomb rod and the inner wall of the bomb have been specially processed to keep their smoothness.

The single rod of the oxygen bomb is equipped with a safety diaphragm to ensure the safety of the test.

The instrument is equipped with a sample temperature verification device to check the sample temperature regularly.

Equipped with LIMS interface.



Technical parameters:

Test range of pressure gauge: 01.6MPa

Constant temperature accuracy: ±0.5℃

Number of metal bath hole: 2 holes

Total power: 1300W

Dimension: 570×390×420 (mm)

Weight: 30Kg

Testable items of instrument configuration:

It is suitable for determining the oxidation stability of gasoline under accelerated oxidation conditions and judging the length of gasoline storage period.



CPU: Onboard Intel Atom D525 dual-core processor, 1.8Ghz, 4GB DDR3 module, 16GB SSD(solid state drive) with Mini-PCIe(Mini-Peripheral Component Interface Express), DC12V power supply



Accessories configuration (including manufacturer) (single unit):

Serial Number

Name and Specification Model

Quantity

Remarks

1

Host TP-108

1 set


2

Temperature correction device

1 set


3

Digital display thermometer

1 set


4

Bath cover

2 pcs


5

Test cup and cover

2 sets


6

Thermometer 95℃103℃

1 pc


7

Oxygen bomb

2 sets

stainless steel

8

Oxygen bomb sealing ring

2 pcs

oil and pressure resistance

9

Pressure gauge 01.6MPa

2 sets


10

Keyboard and mouse

1 set


11

Fuse Φ6×30  10A

1 pc


The instrument can be connected to the laboratory LIMS system and multiple machines can be networked.
