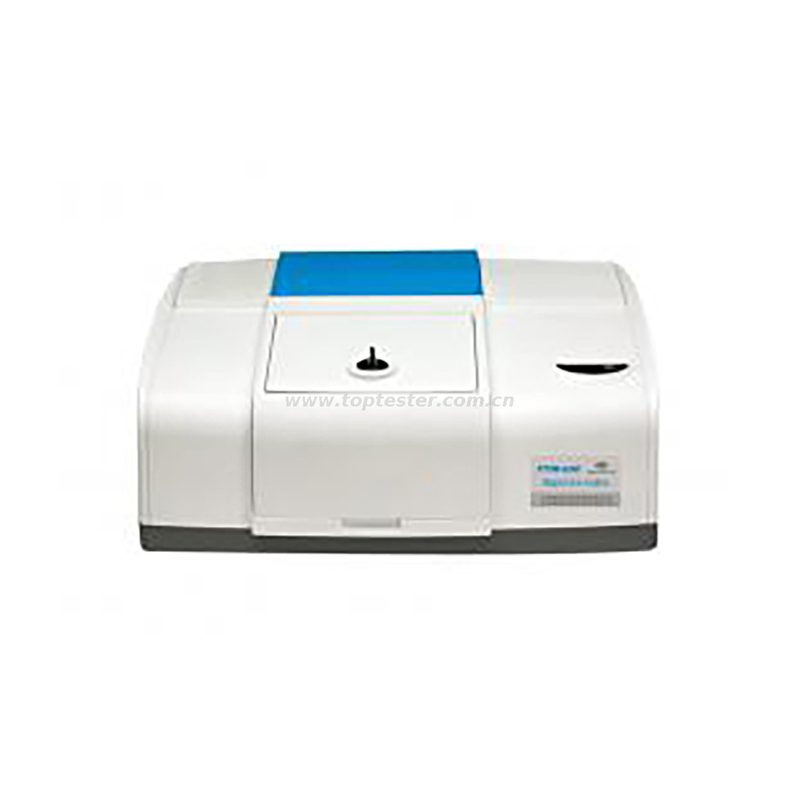

FTIR Spectrometer (Advanced) FTIR-230

Availability:
Quantity:
  • FTIR-230

  • CHONGQING TOP

FTIR-230(advanced) is a single beam FTIR spectrometer, meeting standard of ASTM E2412,  operated by a PC. It is a powerful tool to analyze the sample structure in many fields such as petroleum, chemical engineering and pharmaceutical.



Highly stable optical system

The design integrates main components to an optical bench machined from a cast aluminum. Highly stable and no need for adjustment, re-moving troubles of maintenance of optical path.

Precision machinery ensures high repeatability of every scanning. Advanced design concept is adopted in both optical path and every part

●  The system’s corner cube optics provides easy operation without requiring complicated electronics and additional moving parts. In addition, many components of the spectrometer are user replaceable which saves time over the lifetime of the instrument.

Internal dynamic collimation system and movable mirror driving system keep interferometer at optimum situation. Voice-coil driver and precision slide improves the ability of working in severe conditions.

The spectrometer includes a container of desiccant that protects the beam splitter and other optical components from moisture damage.



Specifications

Wavenumber Range

7800 ~ 375 cm-1

Resolution

1 cm-1

Signal Noise Ratio

30000:1 (DTGS, resolution@4cm-1; sample and background scan for 1 min@2100cm-1)

Detector

High resolution DTGS detector

Beamsplitter

Coated KBr

Light Source

Long life, air cooled IR light source

Electronic System

A/D converter of 24 bits at 500MHz, USB 2.0

Power

110-220V AC, 50-60Hz

Wavenumber Range

7800 ~ 375 cm-1

Resolution

1 cm-1

Signal Noise Ratio

30000:1 (DTGS, resolution@4cm-1; sample and background scan for 1 min@2100cm-1)



Parts Included



No.

Description

Qty

1

Spectrometer

1

2

Power Supply

1

3

Dust Cover

1

4

USB Cable

1

5

Power Cord

1

6

Screw Driver, 150x6mm

1

7

Allen Wrench, 2.5mm

1

8

Replacement Desiccant

1

9

Polystyrene Film

1

10

Software CD

1

11

User Manual

1 copy



Optional Accessories

Item

Accessories

Description

Mode

1

Solid

Package

Press

DF-4

Sheet mold

HF-12

Agate mortar

HW-3

Temperature-controlled IR Oven

HW-3A

KBr

HF-2B

2

Liquid Package

Removable liquid cell

HF-7-j

3

Gas Package

Gas cell

HF-11

4

Medical software

Medical software

S-IR-M

5

S IRSPEC

IR lib

S-IRSPE

6

ATR

ATRZnse crystal

LA-110

7

Mirror reflectance accessory

Mirror reflectance accessory

HF-19
