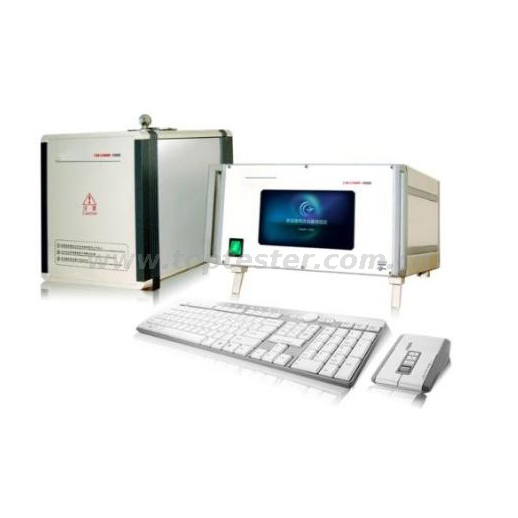

Oil Content Measuring Instrument TPNR-1000

Availability:
Quantity:
  • TPNR-1000
  • CHONGQING TOP

TPNR-1000 New Type Nuclear Magnetic Resonance Oil Content Measuring Instrument is a professional high-tech products for the testing of oil content in oil crops and their processed products.The instrument adopted Nuclear magnetic resonance technology, based on embedded development platform and digital signal processing technology to test the oil content rapidly in oil crops’ seed , cake and meal( such as Soybean, rapeseed, sesame, corn, cottonseed, sunflower, peanut, wheat, Tung, microbial oil, Fiber grease etc.) It is a new product in the field of nondestructive testing. It has the features of easy operating, high testing accuracy and fast testing speed. Compared with similar instruments , adopted patent technology "frequency self locking technology developed by our own", which is not needed to be adjusted manually , reduce human error and improve testing accuracy and stability greatly.



Features of TPNR-1000 New Type Nuclear Magnetic Resonance Oil Content Measuring Instrument

Hardware features

Equipped Samsung high performance ARM9 processor, core frequency 400MHz, advanced WinCE operating system

Equipped with 7 inch color LCD scree. Simple operation interface, fashionable, equipped mouse and keyboard in accordance with computer operation model. Start the machine to test.

Adopted the latest mainstream devices, in line with industrial standards, the failure rate is low

Features

High accurate and stableUsing intelligent classification detection method for different oil , only need 30secons measuring time after dried

Less manual interventionStart the machine to begin the testing process. Frequency adjusted manually is not needed, software complete the frequency adjustment automatically. Operation process guided by the Humanized step by step instructions. Easy operation and no human error occur.

Strong anti-interferenceCan work in a strong electromagnetic interference environment

Rich print functionUsers can use this machine to do the print work and can also save it through U disk, process it in the computer

Easy maintenancedownload upgrade software from the internet to the U disk and insert it in to the USB interface. Upgrade automatically completed

Energy saving and environmental protection: the whole set of equipment power is only 25W, pollution-free, harmless to the human body.

Testing RangeOil content in Soybean, rapeseed, sesame, corn, cottonseed, sunflower, peanut, wheat, Tung, microbial oil, Fiber grease etc and oil content of their seeds and cake and meal



Technical specification parameter

Parameter index (Range)

Note

Hardware platform

Samsung ARM9 processor, core frequency 400MHz


Operating system

Wince operating system


Display screen

7 inch color LCD screen


Frequency search mode

Automatic frequency locking mode


Measuring range

Oil content of soybean, rapeseed, sesame, corn, cottonseed, sunflower, peanut, wheat, rice bran, Tung seed, tea seed, flax seed, castor oil and oil content of their seeds and cake and meal


Sample test tube volume

40ml


Sample oil content range

0.1%~100


Measurement accuracy

+0.2


Measurement stability

Per hour+0.2


Single measurement time

Measuring result come about 30 seconds


Power and voltage

85V~264V~50Hz


Rated power

25W


The gross weight of equipment

Electronic Chassis≤6Kg                Magnet steel Chassis≤25Kg


Size of the equipment

Electronic Chassis310*370*200(mm)

Magnet steel Chassis 230*360*300(mm)


Working temperature

-10℃40℃


Data export mode

Support U disk export(excel)


Software upgrade mode

Support U disk automatic upgrade




Spare part list

NO.

Name

Quantity

Note

1

TPNR-1000Electronic main machine

1 set


2

TPNR-1000 Magnet steel Chassis

1 set


3

250V 5A power supply line

1 piese


4

40ml Special test tube

10 piece


5

Test tube rack

1 piece


6

Probe line

1 piece


7

SCAN Sweep line

1 piece


8

Manual

1 piece


9

RD Micro printer

1 set


10

USB mouse and keyboard

1 set






Compared with other former equipment : More accurate, easy operating ,durable

The frequency of the old type equipment is adjusted manually which occur human error.TPNR-1000 is automatic frequency locking by computer, reducing human error, making the measurement more accurate and stable.

The old type equipment displayed byoscilloscope tube which will turn to black after a lont time use making the resonance wave unclear and adjustment difficult, increasing the error without notice.The new TPNR-1000 device adopted 7 inch color display with modern technology.The old type equipment use the easy to wear thin film button  which need professional to change it ,TPNR-1000 adopted USB type of mouse and keyboard, computer operation mode.

From the date of purchase of the equipment enjoying free warranty for 12 months, free of charge for installation ,commissioning , technical training and lifetime maintenance. We warmly welcome the scientific research units, oil and chemical plants, grain and oil processing and purchasing company to chose our equipment.





1.Matching instrument for testing of oil content

NO.

Name

Quantity

Note

1

New Type Nuclear Magnetic Resonance Oil Content Measuring Instrument

1 set


2

1/1000 Electronic balance

1 set

Minimum 1/1000 balance

3

Constant temperature oven

1set


4

Dryer

1set

240mm with vacuum

5

Weighing dish (culture dish)

6 piece

90mm

6

Color changing silica gel

1 bottle
