Diesel Oil Blockage Tendency Tester Model TP-312

Availability:
Quantity:
  • TP-312

  • CHONGQING TOP

Application:

Diesel Oil Blockage Tendency Tester meets the operating requirements of Sinopec Sales Company’s blocking tendency operation instructions. The random configuration includes the necessary parts for the test which can be completed without additional spare parts.



 Features:

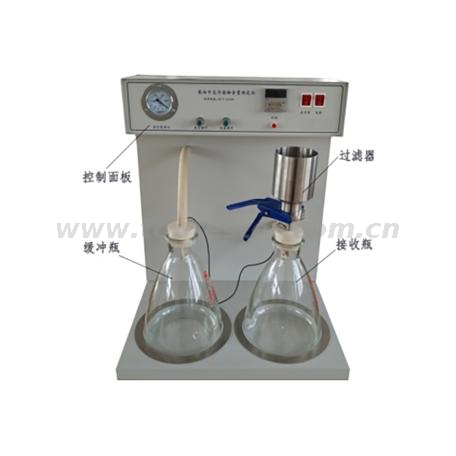

This instrument is composed of Host, vacuum pump, suction filter bottle, filter, etc. In order to facilitate the experiment operation, the host is equipped with a timer. The vacuum adjustment and suction filtration adjustment are adjusted by precision needle valves to ensure the stability of vacuum and sample flow.

Special filter with large capacity.

The filter membrane backing plate has a uniform pore size to protect the filter membrane from damage.

Equipped with vacuum pump, the vacuum system is stable. The vacuum pump switch is installed on the instrument panel, which is easy to operate.

Imported membrane for filtering oil samples.

The filter sealing ring adopts fluorine rubber ring to seal to resist corrosion.



Technical parameters:

Vacuum degree: absolute pressure 0-10KPa

Filter volume: 500ml

Volume of receiving container: 2500ml

Power supply voltage: 220VAC±10% 50HZ

Working frequency: 50Hz

Ambient temperature: 10℃35℃

Imported filter membrane: 100 sheets/box 0.8μm



Testable items of instrument configuration:

It meets the operating requirements of Sinopec Sales Company's blocking tendency operation instructions.

Accessories configuration (including manufacturer) (single unit):

Serial Number

Name and Specification Model

Quantity

Remarks

1

HostTP-312

1 Set


2

Vacuum pump FY-1C-N

1 Set


3

FuseΦ5×20  10A

1 pc


4

Stainless steel filter 500ml

1 pc


5

Filter bottle 2500ml

2 pcs

Shuniu

6

Imported filter membrane 0.8μm

100 pcs


7

Viton ring Φ50×2.4

4 pcs




Access to LIMS system:

The instrument can not be connected to the laboratory LIMS system.
