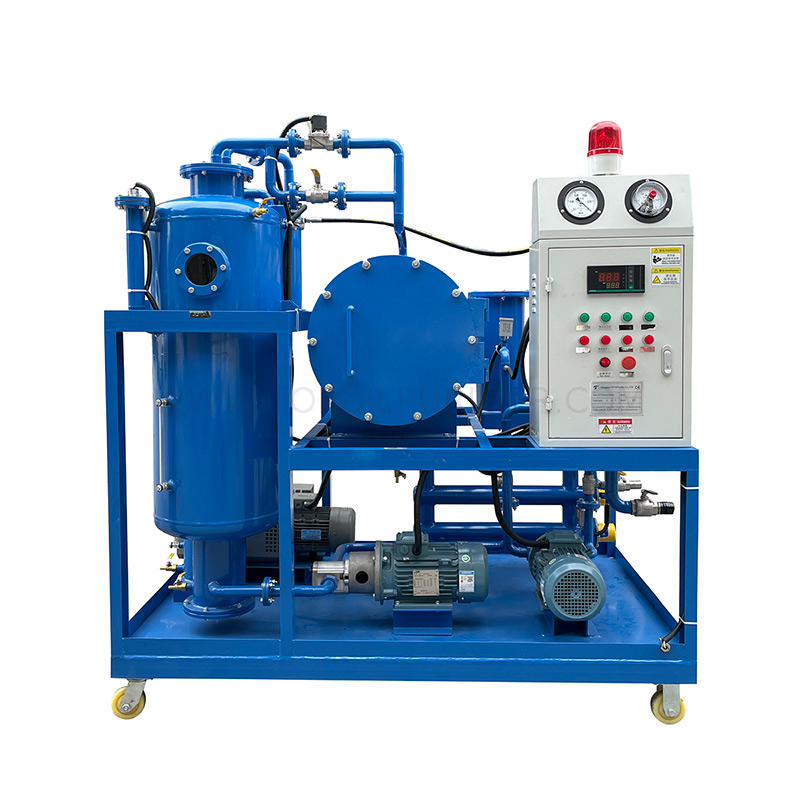

TY-C Turbine Oil Purifier with Coalescence Separation Filter

Application:

TY-C oil filtration system is consists of pre-filter, coalescer and separator filter, oil heater, vacuum pump, vacuum vessel and fine filter. It can be applied to clean turbine oil in electric power, metallurgical, chemical engineering industries. It is good at emulsion breaking, dehydration and removing moisture, gas, impurities, soap, gelatin, acid, pigment and metal particulates in emulsified turbine oil and low-viscosity lubricating oil as well as turbine oil used in other machinery and electric power equipment, and improve the oil quality to ensure a normal work of the generator sets adjustment and lubrication system.

To meet customers’ special needs, we develops

• TY Turbine Oil Purifier

• TY-A Automatic Turbine Oil Purifier with PLC

• TY-Ex Explosion-proof turbine oil purifier for different requirements and working conditions

• TY-W Enclosed type turbine oil purifier which can prevent rain, sun, dust

• TY-M Mobile outdoor type turbine oil purifier which can move and operate on-site

• TY-C Turbine Oil Purifier with Coalescence Separation Filter

Features:

1. TY-C adopts coalescer and separator filter

2. it is strong ability of dehydration and breaking emulsion, that is easy to separate the great moisture and tiny moisture out of the used oil. Because of the special break emulsion device (water separator), the emulsified oil could be treat and become transparent.

3. It is strong ability of removing impurities, that is the big area and deep-seated accurate filtration material can eliminate the tiny particles from used oil that could replace oil system clean device, make great polluted oil system recovered and meet “the operating turbine oil pollution control standard”

4. It is strong ability of automatic, safe and reliable operation. This model is used float ball level automatic control device that realizes auto working completely without manual labour, leads to a simple and stable operation.

5. Thus, TY series is specially fit for applying to filter turbine oil, hydraulic oil and the low viscosity oil that contains lots of water or tiny particles which need to be precisely processed.

6. Advanced infrared oil level control system and pressure protection device make operation simple and safe.

7. It can purify any kinds of turbine oil used in steam turbine and water turbine online and onsite.

8. Air cooling system helps cool down air and gases from the flash distillation column so as to extend the service life of vacuum pump, avoiding the inconvenience of water cooling.

9. Adopts interlocked protective system, which connected oil pump, heater, and oil level sensor, avoiding blank pumping, oil leak and electricity leak. If there is any fault, machine will be power off automatically.

10. High quality and low noise oil pump

11.  Hi-automatization operation, convenience, reliable, and safety

Optional Features:

1. Fully Automatic Operation Controlled by Siemens Brand P.L.C (Programmable Logic Controller)

2. Flow Meter

3. Continuous Online Moisture in Oil Meter Model PTT-001)

4. Continuous Online Moisture and Particles in Oil Monitor(Model PTT-M)

Technical Parameter:
