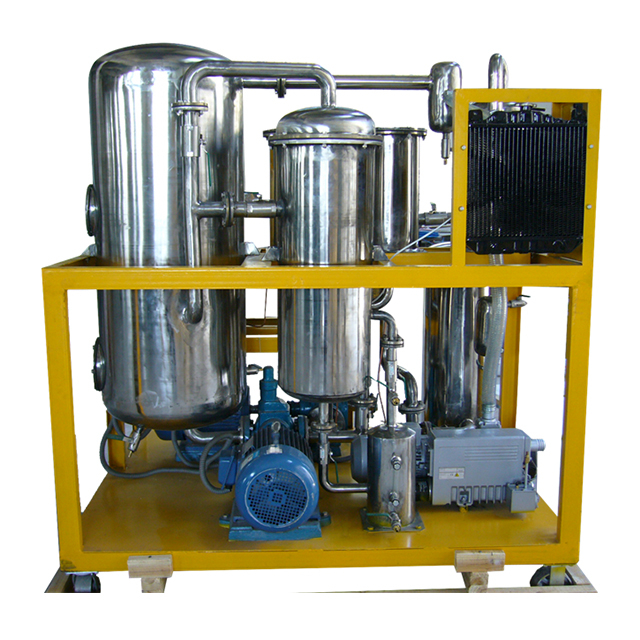

TYF Phosphate Ester Fire Resistant Oil Cleaning Machine

Model :
Quantity:
  • TOP OIL PURIFIER

Applications
It is specially designed for regeneration of the fire-resistant hydraulic oil and EH phosphate ester fire-resistant oil from the speed control system of large and medium scale thermal power generator set.


Features
1.Small size, light weight and easily movable.
2.Good adaptability of the material to phosphate ester. No leakage or corrosion.
3.Automatic control; work online at low temperature; pure physical treatment and no secondary pollution.
4.It can not only remove free water and gases in the oil efficiently and quickly, but also deeply remove dissolved water and gases
5.New type fully stainless steel material and special type filter material, preciser step by step, which removes lots of impurities from oil. To achieve precision filtration
6.This machine is made of anti-acid and anti-dissolution 304 stainless steel. The filters and sealing use material which is not dissolved with fire-resistant oil. It is beautiful, light, easy to operate with low noise and long service life.
7.Equipped with automatic infrared liquid level control system, automatic pressure protection system to ensure safe and reliable high-performance operation of equipment.
8.Filter oil online with unattended operation. Lights indicate operation status of machine.

Key words for ZY Series: mobile transformer oil purification machine, mobile transformer oil treatment, mobile type transformer oil purifier, transformer oil regeneration machine, oil purifier, transformer oil regeneration, transformer oil refinery, oil restoration, oil reconditioned, used oil recycling, oil regeneration, insulating oil purifier, transformer oil purifier, dielectric oil filtering machine, transformer oil filtration machine, oil conditioning, waste oil recycling equipment, transformer oil recycling, insulating oil reclamation unit, transformer Oil Reclaiming, online transformer oil purifier, purify transformer oil, oil filter, dielectric oil treatment, dielectric oil filter, vacuum transformer oil purifier, oil filtering machine, insulating oil recycling, used transformer oil filter machine, used oil purification equipment, used switchgear oil purification machine, power transmission oil filtering machine, vacuum transformer oil water separator, used transformer oil dehydration machine, insulating oil dehydrator, mini oil refinery, transformer oil recovery system, regeneration of transformer oil, transformer oil reclamation, transformer oil refining machine, vacuum transformer oil dehydration plant, insulating oil recycling machine, centrifugal insulation oil regeneration unit, centrifugal insulation oil reclaiming unit, centrifugal insulation oil recovery system, transformer oil processing machine, transformer oil conditioning system, waste dielectric oil filtration systems, zy transformer oil filtration purifier, vacuum transformer oil dehydrator,popular switchgear oil purifier,capacitor oil purifier,dielectric oil purifier unit,dielectric oil filtration plant,vacuum transformer oil treatment  ...
 Parameter:

Item Unit TYF-10 TYF -20 TYF -30 TYF -50 TYF -100 TYF -150 TYF -200 TYF -300
Flow rate L/min 10 20 30 50 100 150 200 300
Working vacuum Mpa -0.06 ~- 0.095
Working pressure Mpa ≤0.4
Temperature 0~100
Power supply
380V/50HZ/3Ph 5 wire(as customer’s requirement)
Working noise dB(A) ≤65~80
Working time H ≥ 4000
Continuous working time H ≥150
Working noise dB(A) ≤75 ≤75 ≤75 ≤78 ≤78 ≤78 ≤80 ≤82
Electric heating power kW 36 40 45 72 80 90 120 135
Total electric power kW 38 42 47 75 87 101 135 147
Outlet(inlet) caliber mm Ф25 Ф25 Ф25 Ф32 Ф42 Ф50 Ф50 Ф60
Weight kg 350 380 400 450 550 650 700 750
Size L mm 1500 1500 1500 1600 1750 1900 1950 2100
W mm 1000 1050 1050 1150 1150 1600 1600 1600
H mm 1600 1600 1650 1700 1750 1950 1950 2000
 Index after filtering  Water content PPM ≤5
Gas content % 0.1
 Particle Size μm ≤1(Customerizable)
Acid mKOH/g ≤0.05

 Cleaness grade ≤4NAS 1638
