Application:

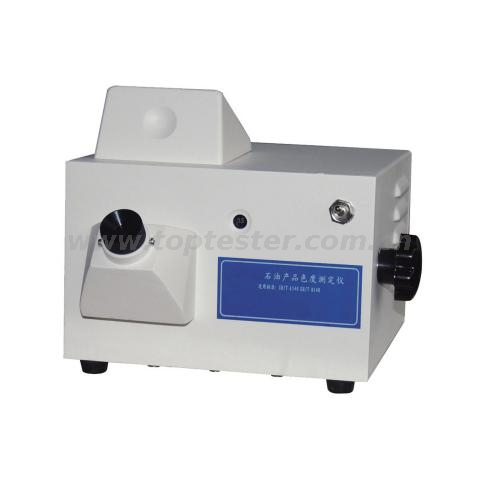

This instrument is designed and manufactured in accordance with GB/T 6540 and SH/T 0168. It is suitable for measuring the color and chromaticity of various lubricating oil, kerosene, diesel oil and other petroleum products under the above-mentioned standards. The random configuration includes the necessary parts for the test which can be completed without additional spare parts. The components and compressors are imported.
Features:
u The instrument uses an optical prism magnification system to make the field of vision clearer.
u Adopt the closed lighting system to avoid stray light interference.
u Adopt the three-vision-field design to see the color of the sample and the colors of the two standard color chips directly.
u The integrated structure makes installation and use more convenient.
u The color chip of the instrument is made of optical glass, which is resistant to oxidation and fading.
u The color number can be read and the data can be reported directly through this instrument.
Technical parameters:
& Light source: 6V 20W halogen tungsten lamp
& Dimension: 252×275×275 (mm)
& Weight: 5Kg
Testable items of instrument configuration:
This instrument is designed and manufactured in accordance with GB/T 6540 and SH/T 0168. It is suitable for measuring the color and chromaticity of various lubricating oil, kerosene, diesel oil and other petroleum products under the above-mentioned standards.
Accessories configuration (including manufacturer) (single unit):
Serial Number | Name and Specification Model | Quantity | Remarks |
1 | Host TP-018 | 1 set |
|
2 | Fuse Φ6×30 10A | 1 pc |
|
3 | Chroma tube | 2 pcs |
|
