Application:

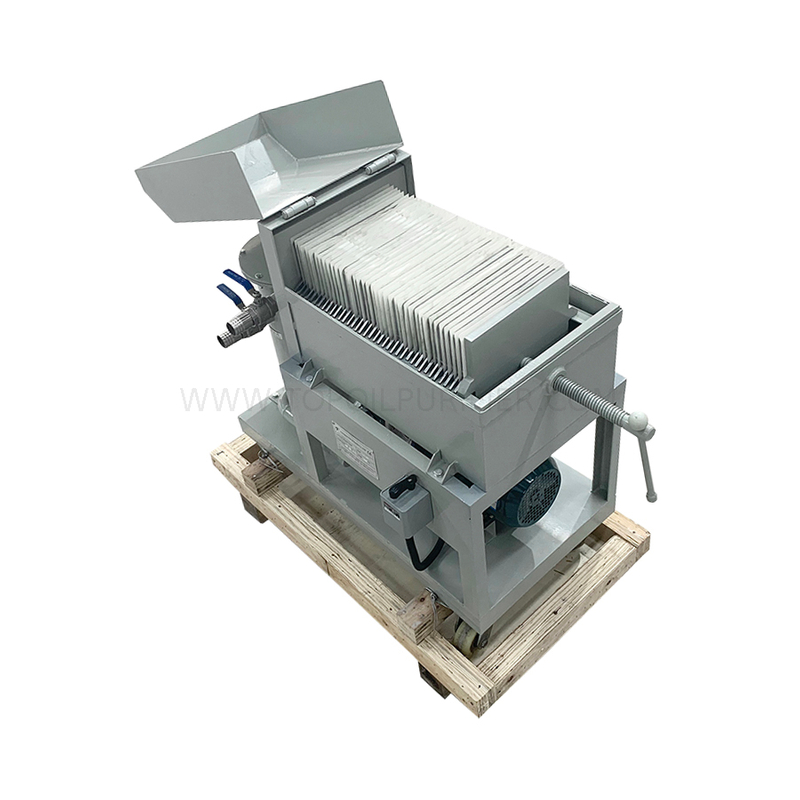

PL series plate pressure oil purifier is specially designed for various power station, power plant, industrial and mining enterprises, lube oil storeroom, tractor station, petroleum, chemical engineering, metallurgy, national defense department etc. It is mainly used to filter water and impurities out of transformer oil, turbine oil, engine oil, diesel, kerosene, aviation hydraulic oil etc. It can also filter edible oil with stainless steel material. The machine is made up of filter bed, oil pump, rough filter etc. There are filter media such as filtering paper or filtering cloth installed between the filter plate and filter frame that will be fixed to form a single filtering room under the pressure from the pinch device. The filtering paper or filtering cloth function for filtering. It’s characterized by simple structure, easy operation, low operation cost etc.
Parameter:
Model | PL-30 | PL-50 | PL-100 | PL-125 | PL-150 | PL-200 | PL-300 |
Flow rate | L/min | 30 | 50 | 100 | 125 | 150 | 200 | 300 |
Working pressure | Mpa | 0-0.5 |
Filtering area | ≥m2 | 0.3 | 0.39 | 1.3 | 1.54 | 1.89 | 2.01 | 3.1 |
Pressurized | Manual |
Filter room number | 11 | 13 | 10 | 12 | 14 | 18 | 23 |
Filter plate number | 12 | 14 | 11 | 13 | 15 | 19 | 24 |
Oil pump | Flow rate | L/min | >30 | >50 | >100 | >125 | >150 | >200 | >300 |
Pressure | Mpa | 0.6 |
Power supply | 380v 3Ph 50hz |
Motor | Power | KW | 1.1 | 3 | 4 | 5.5 |
Revolution | r/min | 1400 |
Filter accuracy | ≥1µ |
Filter paper size | mm | 185*190 | 285*290 |
Pipe diameter | Inlet | mm | 32 | 32 | 44 | 44 | 50 | 50 | 65 |
Outlet | mm | 25 | 25 | 32 | 32 | 44 | 44 | 50 |
Volume | L | mm | 700 | 750 | 900 | 1100 | 1300 |
W | mm | 300 | 440 |
H | mm | 720 | 840 | 1000 |
Weight | Kg | 76 | 86 | 130 | 180 | 210 | 230 | 280 |
