Application:

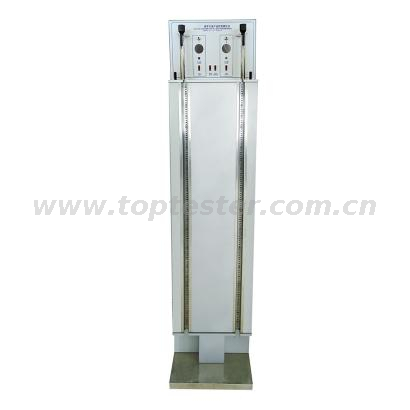

TP-215 Liquid Petroleum Products Hydrocarbon Measuring Tester is designed and manufactured in accordance with GB/T11132-2008 and ASTM D1319. It is suitable for determining the content of olefins and aromatics in motor gasoline. The random configuration includes the necessary parts for the test which can be completed without additional spare parts. The precision inner diameter adsorption column, indicator, and chromatography silica gel are imported.
Features:
u Built-in ultraviolet light and fluorescent lamp can effectively isolate the operator from ultraviolet light and protect the operator.
u The electric oscillation is operated simultaneously with the experiment, which reduces the number of movement of the adsorption column and simplifies the operation process.
u Double-layer pressure protection valve prevents damage to the adsorption column.
u The marking of the separation level adopts an external cursor pointer, which is accurate and convenient, effectively protecting the operator's hands from injury.
u Quick coupling are used to connect the gas circuit, which is convenient and reliable.
u The oil-free air compressor will automatically stop when it reaches the test pressure.
u The precision inner diameter adsorption column, indicator, and chromatography silica gel are imported.
Technical parameters:
& Analysis section inner diameter: 1.6～1.65mm
& Analysis section accuracy: The change within 100mm of the analysis section does not exceed 0.3mm
& Working mode: 2 imported adsorption columns
& Ultraviolet light source: Wavelength 365mm, tube length 1220mm
& Vibrator amplitude: ﹥1.5mm
& Power supply: AC220V/ 50HZ
Testable items of instrument configuration:
It is suitable for determining the content of olefins and aromatics in motor gasoline.
Accessories configuration (including manufacturer) (single unit):
Serial Number | Name and Specification Model | Quantity | Remarks |
1 | Host TP-215 | 1 set |
|
2 | Fuse Φ5×20 1A | 1 pc |
|
3 | Imported precision adsorption column | 2 pcs | Analysis section inner Diameter: 1.6～1.65mm Analysis section accuracy: The change within 100mm of the analysis section does not exceed 0.3mm |
4 | Small spherical grinding jar, small grinding clamp | 2 sets |
|
5 | Large grinding jar, large grinding clamp 29# | 2 sets |
|
6 | Cursor pointer | 16 pcs |
|
7 | Syringe 1ml (minimum scale value 0.05ml) | 1 pc |
|
8 | Imported chromatographic silica gel 500g/bottle | 1 |
|
9 | Imported dyed silica gel 10g/bottle | 1 bottle |
|
10 | Power cord | 1 pc |
|
11 | Long needle + cleaning connector + hose clamp + hose | 1 set |
|
12 | Air Compressor OTS 750W 18L | 1 set |
|
