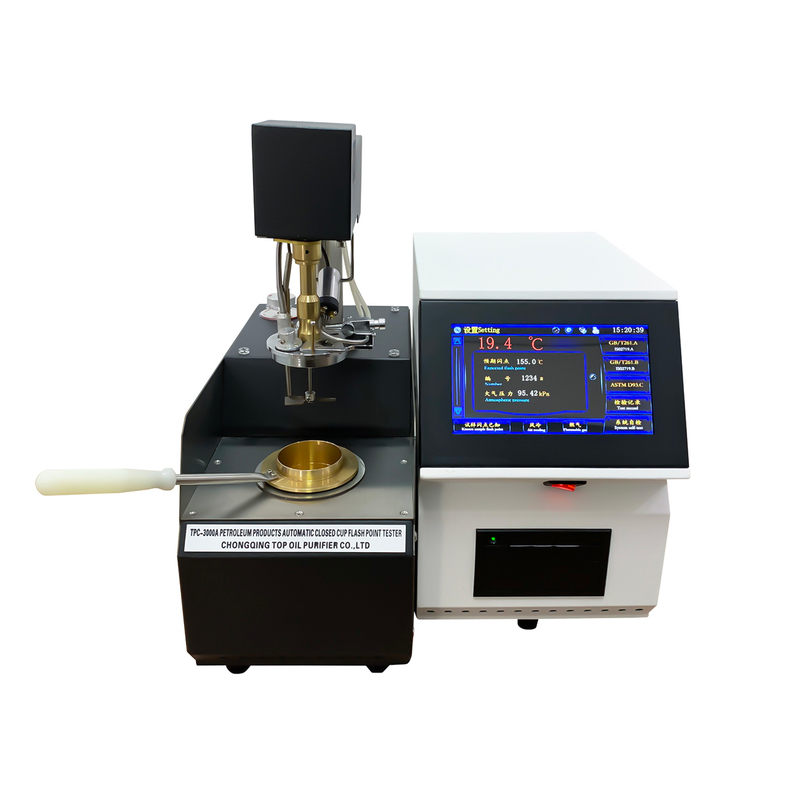

ASTM D93 Petroleum Products Automatic Flash Point Tester TPC-3000A

Availability:
Quantity:
  • TPC-3000A
  • CHONGQING TOP

Standard:

TPC-3000A fully automatic closed flash point tester is designed according to GB/T 261 and ASTM D93 standards for determining the flash point of petroleum products.



Characteristics:

1. Display the temperature rise and experimental time function curve;

2. Automatically correct the influence of atmospheric pressure and calculate the correction value;

3. Intelligent clock display;

4. Self-checking: The instrument can be automatically detected by lifting, ignition, printing, stirring, testing and other functions.

5. Open cover, ignition, detection, and air cooling are automatically completed;

6. Using 44mm paper pin printer, the printing result can be saved for a long time;

7.360 test result records can be queried and printed;

8. Automatically complete the heating, detection, calculation, printing and other operations.



Technical parameter:

Measuring range

(40 ~ 370) ° C

Display accuracy

0.1 ° C

Absolute safety temperature

400 °C

Heating rate

step A: (5 ~ 6) ° C / min


step B: (1~1.5) °C/min

Flash point detection

thermocouple detection system

Temperature detection

PT100 platinum resistance

Ignition mode

electric ignition (platinum ignition) and gas ignition mixed use

Ignition power

≤50W

Ignition gas

liquefied gas, butane gas, pipeline gas, natural gas (pressure <10kPa)



Standard configuration

No

Name

unit

Qty.

1

Automatic closed flash point tester

set

1

2

Test oil cup

pcs

1

3

Pressure pipe

meter

2

4

Tracheal clip

pcs

2

5

Power cable

pcs

1

6

Fuse

pcs

2

7

Operation manual

pcs

1

8

Certificate

pcs

1
