Summary

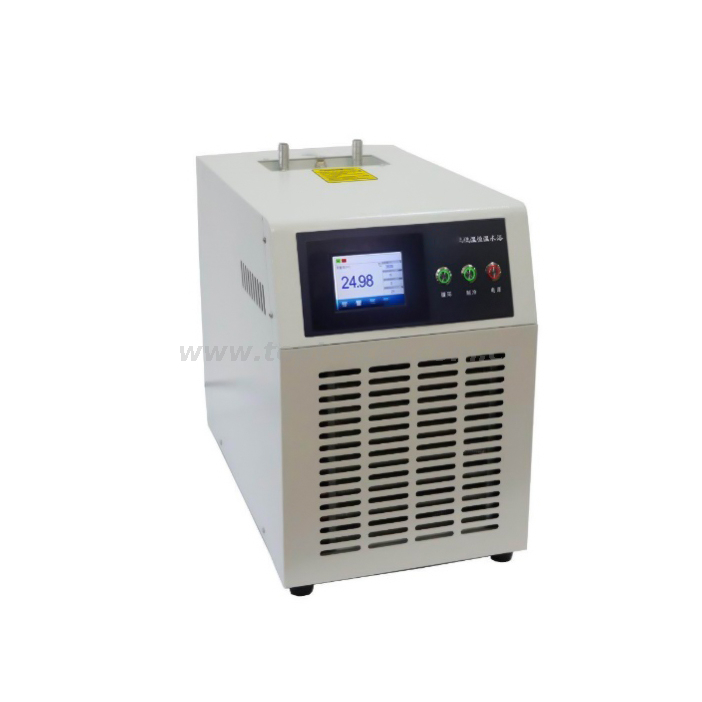

The instrument is a kind of external output constant temperature circulating water bath, which is a special equipment to provide constant temperature medium for open external circulating water bath.
Main technical features
1. The closed water chamber can provide the thermostatic medium with high temperature control requirements for the open circulating thermostatic bath.
2. Test temperature range is 5.0 ℃~ 60.0 ℃ ,can create a pre-set and constant low temperature environment required by the tested sample.
3. Desktop structure, small and light, strong adaptability, easy to move.
Main technical specifications
1. Power supply: AC (220 V ±10%), 50 Hz
2. Total power consumption: ≤1200 W
3. Bath Volume: 5L（Including external circulation 2L）
4. Temperature controlling range: 5 ℃～60 ℃
5. Temperature controlling accuracy: ±0.1 ℃(5.0℃～25.0℃)
6. Quantity of circulated water: ≥8L/min
7. Working environment: Temperature: (15-35) ℃, Relative humidity: ≤85%
8. Size of water bath: 455mm ×285mm ×420mm
9. Net weight: 22 kg
