Description
Innovation points to improve efficiency:
1. One-key automatic detection function, effectively avoiding human error;
2. PID precise temperature control;
3. The experiment process can be recorded and replayed without missing every detail;
4. Fully comply with the national standard and ISO method for determining the melting point of fats and oils
Fully comply with 21CFR Part11 requirements, comply with GMP regulations, with audit trail, hierarchical authority management, electronic signature

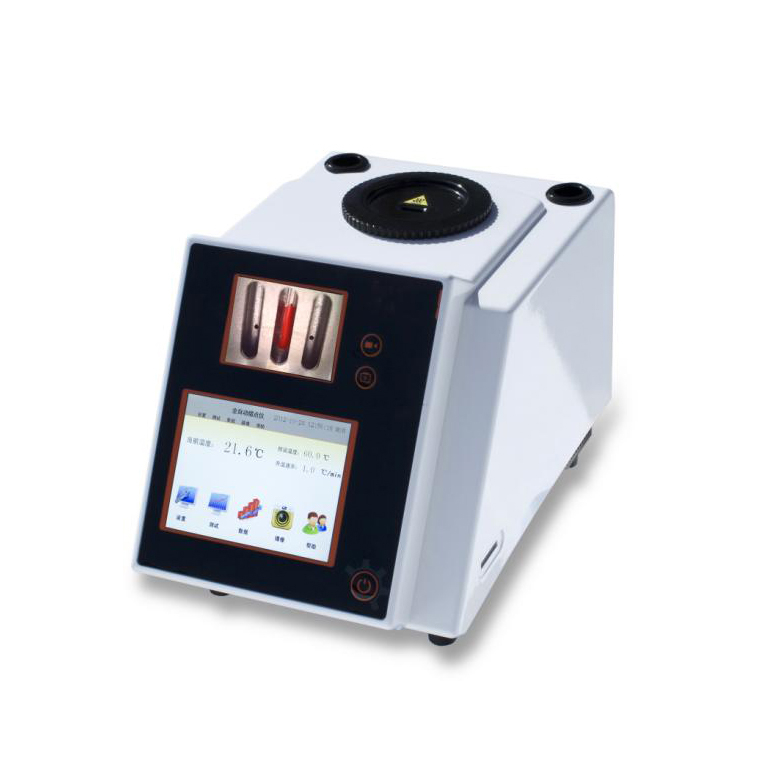

The automatic grease melting point meter can quickly and accurately determine the melting point of various greases. Can measure 3 samples at the same time. Through the digital optical sensor, the entire experiment process is digitized and transmitted to the computer. The intelligent software can automatically determine the melting point of the fat, eliminating the subjective error of artificially judging the melting point, and reducing the labor intensity of the experimenter. The instrument comes with a heating system to ensure a stable heating rate. The platinum temperature sensor has fast response speed and high accuracy, which has unparalleled advantages over the traditional method of using mercury thermometer.
Standard: Comply with SNT0801.5-2015, GB/T24892-2010, GBT127662008 standards
Technical Parameters
Temperature display range: 0-320°C
Control temperature range: RT-320°C
Temperature resolution: 0.1°C
Heating gradient: 0.1°C-20°C/min
Cooling rate: wind cooling
Temperature accuracy: ±0.3°C(~100°C)
Repeatability: Melting point repeatability at 0.1°C/Min ±0.1°C
Detection method: fully automatic (compatible with manual)
Processing capacity: 2-3 pieces/batch
Capillary tubes can be used: outer diameter 1.4mm, inner diameter 1.0mm, length 100mm (single or double opening)
Outer diameter 4.0mm, inner diameter 3.8mm, length 800mm (large capillary tube)
Video function: taking photos and videos
Audit trail, hierarchical authority management, electronic signature user management: Yes
Number of user management: 10
Data storage: 1000
Storage space: 32G
Display mode: TFT high-definition true color screen
Computer interface: USB RS232 network port
Power supply: AC 220V
Operating temperature (ambient temperature): 5-35°C
Weight: 4.1Kg
Heating water bath
Adopt platinum temperature sensor, unique water bath heating design, heating rate 0.1-10°C/min. The temperature display range is 0~400°C, the temperature control accuracy is 0.1°C, the response speed is fast, the accuracy is high, and more accurate experimental results can be obtained.
The heating bath adopts glass tube to prevent scaling and rust, easy to clean, and prolong the life.
After power on, the temperature will be automatically preheated to the initial temperature set by the user.
Professional software
Experimental results can be automatically generated and saved in experimental reports, and can be printed at any time. The experiment process is automatically recorded and saved to the SD card. When the SD card space is insufficient, the user will be prompted to transfer or clear the data.
The user can observe the experiment process at any time through the window in the software, or through video playback, change the playback speed, and better observe the details of the experiment. The software interface is friendly, easy to use, and various parameters are clear at a glance.
Test details(Schematic diagram)
①Load samples ②Load Water column ③Put the small tube into the big tube
④Load to test ⑤Test effect
