Application:

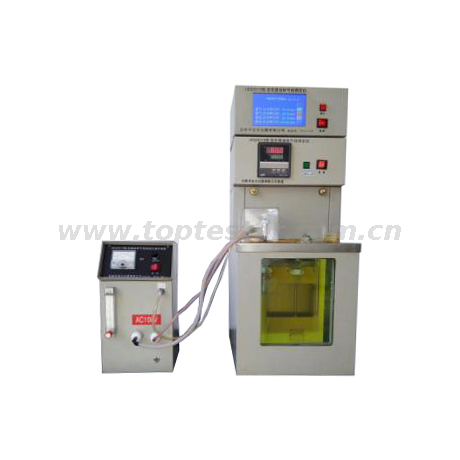

TPD-30 insulating oil gassing property tester complies to national standard GB/T11142 Test Method Of Insulating Oil Degassing Property Under Electric Field And Ionization and also meets with national industrial standard NB/SH/T0810-2010. It is used to test the tendency of releasing dissolved gas for insulating fluid under electric field effect which is strong enough to cause discharge on the interface between liquid and gas.
It adopts MCS-51 series SCM as system control core, intelligent color screen display and screen touch key to ensure the whole machine advanced and reliable; English LCD, man-machine menu dialogue, guiding operation and precision metal platinum resistance as temperature measuring components to ensure high precision thermostatical control. This instrument has easy operation, reliable working and high accuracy. It is a necessary equipment for oil analysis and quality check and widely applied in petrochemical, electric power, railway, scientific research departments etc.
Technical Parameters
1. Temperature control range: 80°C
Accuracy: ±0.3°C
Resolution: 0.1°C
2. Test voltage: 10.00KV
Precision: ±0.2KV
Resolution: 0.01KV
3. Time measurement: 5 MIN; 10 MIN; 50MIN; 120MIN
Accuracy: ± 0.2
Resolution: 1S
4. Heater: 800W * 2
5. Stirring motor: 25W
6. Stirring speed: 1200 rpm
7. Power supply: AC220V ± 10% 50 (60) Hz ± 1Hz
8. Overall dimension: 320 * 700 * 405 (mm) (width * height * depth)
9. Weight: 35Kg
10. Working environment: Temperature: 25 °C ± 10 °C; Relative humidity: <85%
