Application

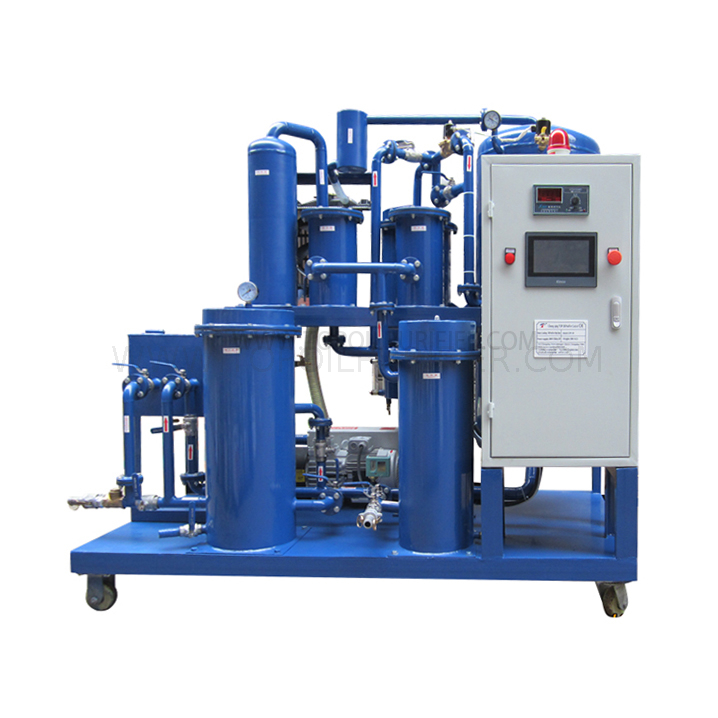

Series COP oil filtration machine is mainly used for purifying UCO used cooking oil, vegetable oil, KFC oil, edible oil, rape oil, sesame oil, peanut oil, coconut oil, beam oil, kitchen oil, bio-diesel oil, plant oil, wood oil etc. It dewaters, deodorizes, and eliminates impurities highly effectively. According to the cooking oil nature, the used cooking oil includes high content water, more acid matters, much impurity and offensive odor. This machine adopts plate pressure system and can separate the impurities and water from the oil quickly and effectively. Added two primaries filter and fine filter, it can remove impurities thoroughly. And the machine adopts high vacuum system to dewater and deodorize. In addition, this machine uses stainless steel filter elements, which resists the acid in oil strongly. After the used cooking oil is recycled by machine, it will become clear and fresh.
To meet customers’ special needs, we develops:
1. COP Used Cooking Oil Filter Machine
2. COP-S Stainless Steel Cooking Oil Purification Machine
3. COP-A Fully Automatic Cooking Oil Filtration Machine
4. COP-W Fully Enclosed Cooking Oil Cleaning Machine
5. TYS Food Grade Stainless Steel Cooking Oil Decoloration Machine
Features
1. Highly effective vacuum dewatering, deodorizing, and impurities removing system.
2. It adopts plate pressure system with the strong ability to filter the particles and impurities completely.
3. It has the back flush system which can clean the filter elements automatically.
4. We uses stainless steel filter element which has a good anti-corrosive performance. Especially, the precision of eliminating impurity is high and the service life is long. Also, it has large volume for holding the impurities.
5. Unique degassing and dewatering system: Using 3D-Evaporation technical and thin film evaporation, which can separate the trace water, soluble water and gases from the oil quickly by the Multi-level water-oil separation technology.
6. Hi-automatically operated, convenient, reliable, and safe.
Optional Features:
1. Siemens Brand P.L.C (Programmable Logic Controller)
2. Flow Meter for auto calculating and recording oil volume and working time
3. Continuous Online Moisture in Oil Analyzer Model PTT-001)
4. Continuous Online Moisture and Particles in Oil Monitor(Model PTT-M)
5. Metallic Weather Proof Enclosure
6. Single/Double-axles Road worthy Trailer for Outdoor Use
Technical Parameter:
Item | Unit | COP -10 | COP -20 | COP -30 | COP -50 | COP -100 | COP -150 | COP -200 | COP -250 | COP -300 |
Flow rate | L/min | 10 | 20 | 30 | 50 | 100 | 150 | 200 | 250 | 300 |
Flow rate | L/hr | 600 | 1200 | 1800 | 3000 | 6000 | 9000 | 12000 | 15000 | 18000 |
Working vacuum | Mpa | -0.06 ~- 0.098 |
Working pressure | Mpa | ≤0.3 |
Temperature Range | ℃ | 0~100 |
Working Oil Temperature | ℃ | 45~65 |
Power supply |
| 380V/50HZ/3Ph 5 wire(as customer’s requirement) |
Continuous working time | H | ≥150 |
|
|
Working noise | dB(A) | ≤65 | ≤68 | ≤68 | ≤70 | ≤70 | ≤75 | ≤75 | ≤78 | ≤80 |
Electric heating power | kW | 15 | 18 | 24 | 36 | 60 | 72 | 120 | 150 | 180 |
Total electric power | kW | 17 | 20 | 26 | 39 | 65 | 79 | 128 | 180 | 192 |
Outlet(inlet) caliber | mm | Ф25 | Ф25 | Ф25 | Ф32 | Ф42 | Ф45 | Ф50 | Ф60 | Ф63 |
Weight | kg | 350 | 400 | 450 | 500 | 900 | 1300 | 1500 | 1800 | 2000 |
Size | L | mm | 1350 | 1400 | 1450 | 1500 | 1700 | 1800 | 2000 | 2100 | 2400 |
W | mm | 950 | 1000 | 1050 | 1100 | 1150 | 1250 | 1400 | 1450 | 1550 |
H | mm | 1650 | 1700 | 1750 | 1800 | 1800 | 2000 | 2200 | 2300 | 2400 |
Index after filtering | Moisture content | PPM | ≤50 |
Gas content | % | 0.1 |
Impurity size | μm | ≤1(Customerizable) |
Cleanness degree | Degree | ≤6（NAS 1638） |
