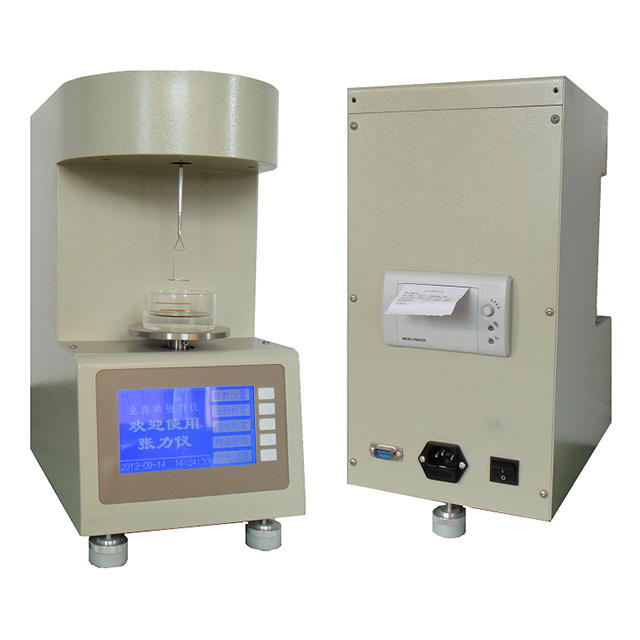

Fully Automatic Surface/Interface Tension Tester IT-800

  • IT-800
  • TOP OIL PURIFIER
Application:
IT-800 analyzer, adopting ASTM D971 “platinum ring method”, tests interfacial tension for various liquids (between liquid and air) and also that between mineral oil and water(between liquid and liquid) by means of automatic control of internal microcomputer under circumstances of nonequilibrium. It only needs you pour the sample into sample cup and then press “start” button. Then the tester will finish the whole test and calculate the tension value automatically according to concrete input parameters.

Features:
1.Large color LCD screen, English prompt, menu operation, fully automatic testing.
2.Automatic temperature compensation within 25℃ eliminates the influence that the temperature imposes on the tension value.
3.Functions of auto correction, auto testing, calculation, results displaying, and storage under power off circumstance.
4.The main body is equipped with hurricane globe, which lessens the influence outer matters impose on testing results.
5.Automatic lift of the lift platform ensures a stable environment and high accuracy.
6.It adopts enclosed magnetic pot type sensor and multi-point calibration of uniform space technology, which improves the repeatability and reproducibility of the results.
7.It can work independently and can also realize network management via connection with laptops or microcomputers through USB interface.
8.Tester program can be updated accordingly if related national standard revised.

interfacial tension analyzer, interfacial tension tester, surface tension test equipment, interfacial tension analyzer for oil, tension meter, tension tester, interfacial tensiometer, surface tension test machine, surface tension meter, tensiometer, surface tension test, surface tension test machine, surface tensiometer, tension tester, tension testing, IFT testing equipment, surface tension tester, surface tension measure, surface tension measurement, interfacial tension of water and oil, fully-automatic interfacial tension tester, liquid surface tensiometer, astm d971 surface tension meter, liquid surface tension meter, electronic tensiometer, interfacial tension measuring device

Method of Display large LCD display screen, in English
Method of Testing Platinum ring method
Testing Range 0-200mN/m.
Sensitivity 0.1mN/m
Accuracy ±0.1mN/m
Self-checking Breakdown auto diagnostics
Temperature Compensation Automatic temperature compensation
Power Less than 40W
Dimension 185×260×360mm
Working Environment Temperature:10℃-40℃; Humidity: ‹80%
Power Supply AC220V±10%, 50HZ±2.5HZ
Weight About 15kg
