ASTM D97 Pour Point & Cloud Point & Condensation Point & Cold Filter Point Tester Model TP-001

Availability:
Quantity:
  • TP-001
  • CHONGQING TOP

Application:

TP-001 Pour Point & Cloud Point & Condensation Point & Cold Filter Point Tester is a multi-functional low temperature measuring instrument with cascade compressor refrigeration technology. It is designed and manufactured in accordance with GB/T 3535, GB/T6986, GB/T510, SH/T 0248-2006 and ASTM D97. It is used to determine the pour point, cloud point, condensation point and cold filter point of petroleum products. The analysis tests in the above standards can all be completed on this instrument, which can realize the multi-purpose function of one machine. The random configuration includes the necessary parts for the test which can be completed without additional spare parts.The components and compressors are imported.



Features:

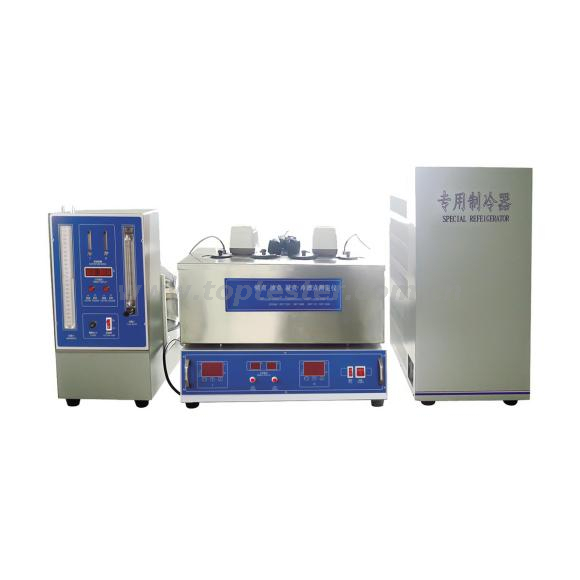

This instrument is composed of three parts: a dedicated cold source, a constant temperature device, and a suction filter device.

Special cold source provides cold capacity for the constant temperature bath. It is mainly composed of a fully enclosed compressor cascade unit and an input evaporator.

The constant temperature device provides the required measuring working environment for the test, which is mainly composed of a constant temperature bath, a test tube holding device, an electric control unit, etc.

The suction filter device is composed of a suction filter electronic control unit and a vacuum source.

Adopt imported compressor (Danfoss) and cascade refrigeration.

Stainless steel constant temperature bath with two slots and four holes.

Split type to avoid the influence of vibration on the experimental results.

It is equipped with two sets of digital stopwatches, which can report information regularly.



Technical parameters:

Input power: Refrigerator: 800W

Constant temperature bath: 750W

Temperature control range: 0-69℃

Cooling time: -69℃90min

Constant temperature accuracy: ±0.5℃

The condensation point sample tilt timing time: 60s

Dimension and weight: Refrigerator: 290×580×590(mm), 51Kg

Constant temperature bath: 530×300×345(mm), 23Kg

Testable items of instrument configuration:

It is designed and manufactured in accordance with GB/T 3535, GB/T6986, GB/T510, SH/T 0248-2006 and ASTM D97. It is used to determine the pour point, cloud point, condensation point and cold filter point of petroleum products.



Accessories configuration (including manufacturer) (single unit):

Serial Number

Name and Specification Model

Quantity

Remarks

1

Constant temperature bath TP-001

1 set


2

FuseΦ6×30  20A

1 pc


3

Sensor

2 pcs


4

Dedicated cold source

1 set


5

Thermometer -3850℃   GB37

2 pcs

Price includes verification fee 260/piece

6

Thermometer -3060℃   GB30

2 pcs


7

Bath tub

4 pcs

brass



8

Condensation point tube, condensation point plug

2 sets


9

Suction filter device

1 set


10

Filter

2 sets


11

Test tube rack (support ring)

2 sets


12

Cold filter point tube, pipette, cold filter point plug

2 sets


13

Pour point tube, pour point plug

2 sets


14

O-ring φ32×5 (oil-resistant rubber)

4 pcs




Attachment: TP-001 Pour Point & Cloud Point & Condensation Point & Cold Filter Point Tester
