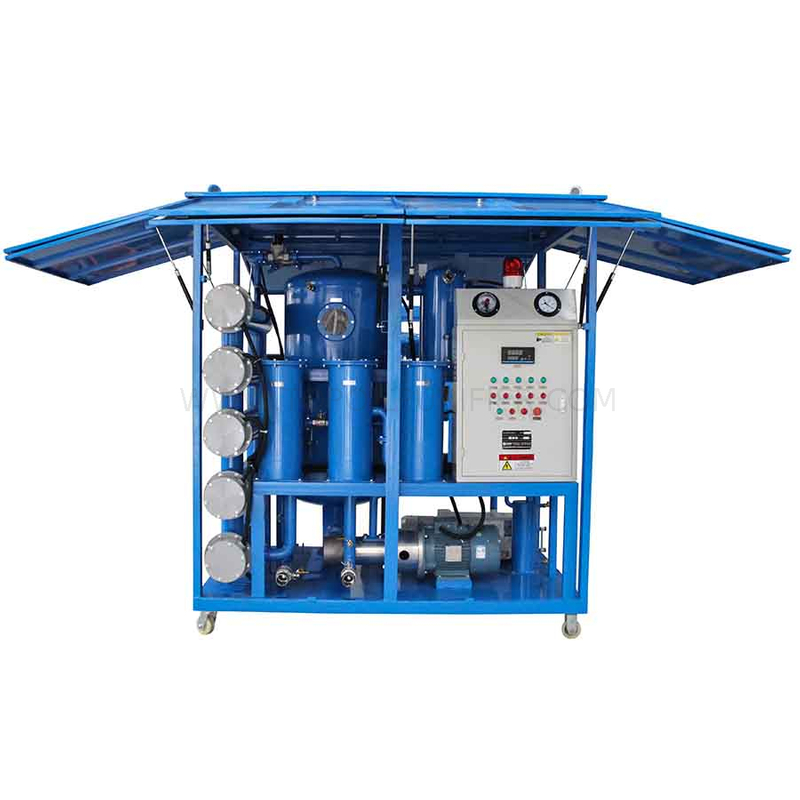

Series COP -W Fully Enclosed Cooking Oil Filtration System

Availability:
Quantity:

Application

COP-W is fully enclosed type oil purifier equipped with dust and water proof device. It is mainly used for purifying UCO used cooking oil, vegetable oil, KFC oil, edible oil, rape oil, sesame oil, peanut oil, coconut oil, beam oil, kitchen oil, bio-diesel oil, plant oil, wood oil etc. It dewaters, deodorizes, and eliminates impurities highly effectively. According to the cooking oil nature, the used cooking oil includes high content water, more acid matters, much impurity and offensive odor. This machine adopts plate pressure system and can separate the impurities and water from the oil quickly and effectively. Added two primaries filter and fine filter, it can remove impurities thoroughly. And the machine adopts high vacuum system to dewater and deodorize. In addition, this machine uses stainless steel filter elements, which resists the acid in oil strongly. After the used cooking oil is recycled by machine, it will become clear and fresh.



To meet customers’ special needs, we develops:

1. COP Used Cooking Oil Filter Machine

2. COP-S Stainless Steel Cooking Oil Purification Machine

3. COP-A Fully Automatic Cooking Oil Filtration Machine

4. COP-W Fully Enclosed Cooking Oil Cleaning Machine

5. TYS Food Grade Stainless Steel Cooking Oil Decoloration Machine



Features

1. Highly effective vacuum dewatering, deodorizing, and impurities removing system.

2. It adopts plate pressure system with the strong ability to filter the particles and impurities completely.

3. It has the back flush system which can clean the filter elements automatically.

4. We uses stainless steel filter element which has a good anti-corrosive performance. Especially, the precision of eliminating impurity is high and the service life is long. Also, it has large volume for holding the impurities.

5. Unique degassing and dewatering system: Using 3D-Evaporation technical and thin film evaporation, which can separate the trace water, soluble water and gases from the oil quickly by the Multi-level water-oil separation technology.

6. Fully automatic operation, convenient, reliable, and safe.



Optional Features:

1. Siemens Brand P.L.C (Programmable Logic Controller)

2. Flow Meter for auto calculating and recording oil volume and working time

3. Continuous Online Moisture in Oil Analyzer Model PTT-001)

4. Continuous Online Moisture and Particles in Oil Monitor(Model PTT-M)

5. Single/Double-axles Road worthy Trailer for Outdoor Use



Technical Parameter:

Item

Unit

COP-W

-10

COP-W

-20

COP-W

-30

COP-W

-50

COP-W

-100

COP-W

-150

COP-W

-200

COP-W

-300

Flow rate

L/min

10

20

30

50

100

150

200

300

Working vacuum

Mpa

-0.06 ~- 0.095

Working pressure

Mpa

≤0.4

Temperature

0~100

Power supply


380V/50HZ/3Ph 5 wire(as customer’s requirement)

Working noise

dB

(A)

≤65~80

Working time

H

≥ 4000

Continuous working time

H

≥150

Working noise

dB(A)

≤75

≤75

≤75

≤78

≤78

≤78

≤80

≤82

Electric heating power

kW

36

40

45

72

80

90

120

135

Total electric power

kW

38

42

47

75

87

101

135

147

Outlet(inlet) caliber

mm

Ф25

Ф25

Ф25

Ф32

Ф42

Ф50

Ф50

Ф60

Weight

kg

350

380

400

450

550

650

700

750

Size

L

mm

1500

1500

1500

1600

1750

1900

1950

2100

W

mm

1000

1050

1050

1150

1150

1600

1600

1600

H

mm

1600

1600

1650

1700

1750

1950

1950

2000

Index after filtering

Moisture content

PPM

≤50

Gas content

%

0.1

Impurity size

μm

≤1(Customerizable)

Demulsification value


(fresh oil)≤15min, (oil in operation)≤30mi


Cleanness degree


≤4(NAS 1638)
