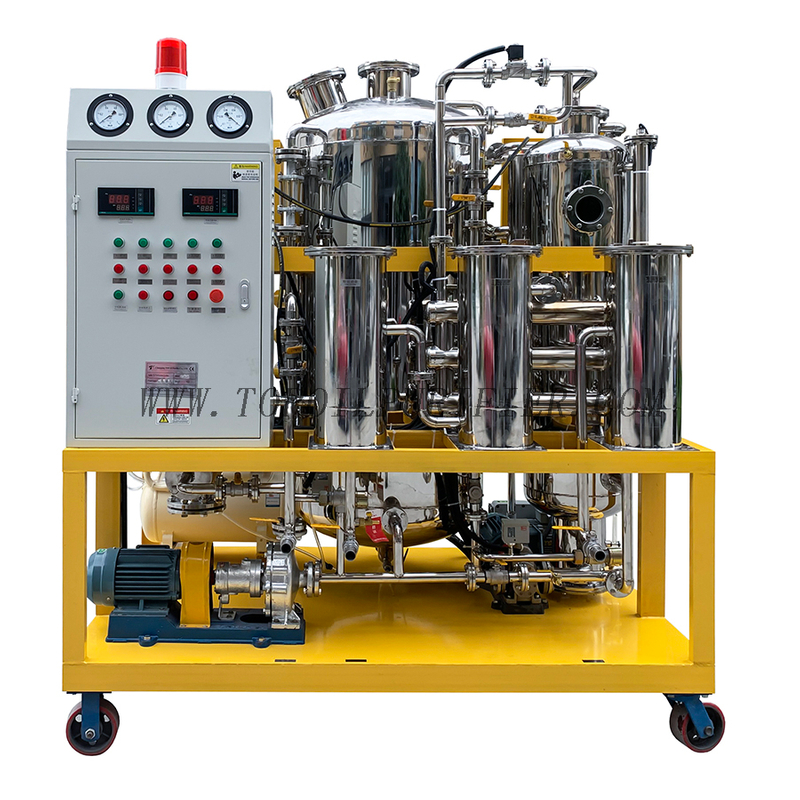

Series TYS Food Grade Oil Purification and Decoloration Machine

Quantity:
  • TYS

TYS series Food Grade Oil Purification and Decoloration Machine is specially designed to clean new and used cooking oil, coconut  oil, dirty vegetable oil, trench oil, swill oil and animal oil, edible rapeseed oil, tea oil, peanut oil, grease etc.,

It can effectively and completely removes water, particles, acid and alcohol etc. Further more, it can also remove odor and recover the oil color from black to original yellow. This is combined with our special brand food grade earth, which is pure natural and has high efficiency. The treated oil is clean, limpidity, and good smell.

TYS is a good purification machine for biodiesel production factory, soap factory, Fry food factory, oil restaurant, cooking oil factory, vegetable oil factory, and waste oil collecting store ect.,

According to the needs, the material of the machine can be made in carbon steel or stainless steel.




Parameters

Unit

TYS-1

TYS-2

TYS-3

TYS-5

TYS-10

TYS-15

TYS-20

TYS-30

TYS-50

Treatment Capacity

Ton/day(8 hr))

1

2

3

5

10

15

20

30

50

Power Supply


380V/50HZ/3Phase (Customizable)

Working Noise

dB

(A)

≤65

Working Vacuum

MPa

-0.06-0.095

Working Pressure

MPa

0.5

Working Temperature

3090

Inlet (outlet) caliber

mm

Ф25

Ф25

Ф25

Ф32

Ф42

Ф42

Ф50

Ф50

Ф60

Weight

kg

1500

2000

2500

3000

3500

4000

4500

5000

5500

Size

Length

mm

1800

1850

1900

1950

2000

2200

2300

2400

2500

Width

mm

1300

1350

1400

1450

1500

1600

1600

1700

1800

Height

mm

2300

2300

2300

2400

2500

2700

2700

2700

2700

After treated

Color

L

 1-3

Impurity

μm

1(Customizable)

Water

ppm

≤100

Demulsification

min

≤15(GB/F 7305)

Cleanliness

grade

≤6(NAS1638)
