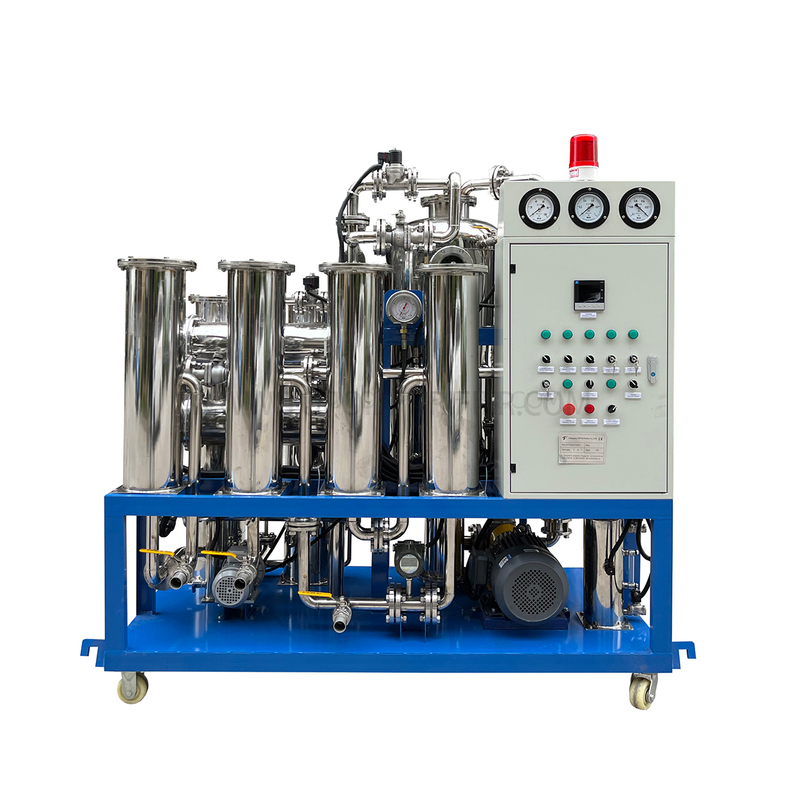

TYF fire-resistant oil purifier

Availability:
Quantity:

Application:

TYF series fire resistant oil purifier machine is a new generation vacuum oil purifier specially designed for unqualified phosphate ester fire resistant fluids (in EHC System), which can carry out regeneration and purification treatment of deteriorated fire resistant oil, and effectively remove the acid, pigment, gas, water content and impurities. It adopts materials which are compatible with fire resistant oil, and vacuum dehydration, multistage fine filtration(ICB filter,volume resistivity filter and stainless steel filter), new type resin exchange deacidification and other oil treatment technology. After treatment, the fire resistant oil reaches qualified standards. It is mainly applicable for purification and regeneration of fire resistant hydraulic oil in large and medium-sized thermal power plant control system, fire resistant oil (EHC) system and mechanical equipment. it can be used for process of online operation, movable oil filtration, new oil filling etc.  It can extend the service life of fire resistant oil and maintain the host security and save energy.


Features:

1.with technology ICB (ionic resin to remove and keep the number acid at tolerable levels)

2. All the pipes and tanks are made of stainless steel (SUS304) material, sealing materials are made of fluorine rubber; no leakage, no corrosion,with beautiful appearance.

3.Take full account of the characteristics of the phosphate ester fire resistant oil in design, low temperature operation, pure physical purification, will not bring any damage to oil products.

4.With powerful filtration capacity for impurities.Adopts filtration material with compound microporous structure which has the ages of corrosion resistance, high temperature resistance, good mechanical strength and long service life, and can filter the fine particles in the oil at a deep level.

5.Strong dehydration and degassing capacity. Using special designed three-dimensional evaporation element, can quickly remove large amounts of water in the oil; and the vacuum system of the vacuum pump is adopted for large displacement, which can discharge the evaporated water content and other gases quickly;

6.Exceptional deaciding and decoloring capacity. The equipment uses special and high efficiency adsorbent to deaciding and decoloring treatment, which can effectively remove acid and pigment in the oil.

7.Equipped with perfect protection device. Through each implementation components of the equipment,it provides a full protection in terms of temperature, pressure, vacuum, power outages, overpressure, undervoltage, overload,etc, which can effectively ensure the normal operations of equipment, and prevent accidents occurring.

8.Equipped with electrical control system which is easy to operate, reliable, and can be unattended.

9.The high temperature water vapor and other gases evaporated in the vacuum separator will be treated with condensation, dewatering and drying process , which can effectively enhance the output power of the equipment, and prolong the service life of the vacuum pump greatly.


Optional Features:

1. Fully Automatic Operation Controlled by Siemens Brand P.L.C (Programmable Logic Controller)

2. Flow Meter

3. Continuous Online Moisture in Oil Meter Model PTT-001)

4. Continuous Online Moisture and Particles in Oil Monitor(Model PTT-M)

5. Metallic Weather Proof Enclosure to prevent rain, sun, dust ect.,

6. Single/Double-axles Road worthy Trailer for Outdoor Use


Technical Parameter:

Item

Unit

TYF-10

TYF -20

TYF -30

TYF -50

TYF -100

TYF -150

TYF -200

TYF -300

Flow rate

L/min

10

20

30

50

100

150

200

300

Flow rate

L/H

600

1200

1800

3000

6000

9000

12000

18000

Working vacuum

Mpa

-0.06 ~- 0.095

Working pressure

Mpa

≤0.4

Temperature

0~100

Power supply


380V/50HZ/3Ph 5 wire( Customized)

Working time

H

≥ 4000

Continuous working time

H

≥150

Working noise

dB(A)

≤65

≤68

≤68

≤70

≤70

≤75

≤75

≤78

Electric heating power

kW

15

18

24

36

60

72

120

150

Total electric power

kW

17

20

26

39

65

79

128

180

Outlet(inlet) caliber

mm

Ф25

Ф25

Ф25

Ф32

Ф42

Ф45

Ф50

Ф60

Weight

kg

350

400

450

500

900

1300

1500

1800

Size

L

mm

1350

1400

1450

1500

1700

1800

2000

2100

W

mm

950

1000

1050

1100

1150

1250

1400

1450

Index after filter

Moisture

PPM

≤5

Gas

%

0.1

Particle

μm

≤1

Acid

mKOH/g

≤0.03


Resistance value


≥6×109


Cleaness

grade

≤4(NAS 1638)
