ZYD-I-A PLC Fully Automatic Transformer Oil Reclaiming Machine

Availability:
Quantity:

Application:

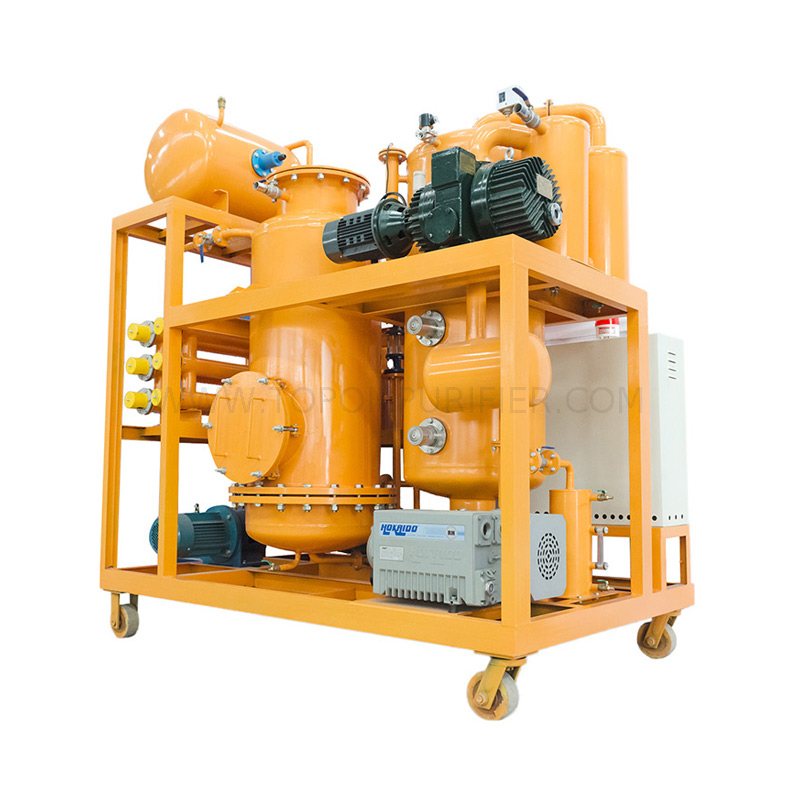

ZYD-I-A transformer oil regeneration system machine adopts Programmable Logic Controller (P.L.C) to achieve the automation of whole treatment process. It is specially designed for on site use to completely regenerate insulating oils in energized or de-energized transformers. IIt not only provides regular oil purification including degassing, drying and particulate removal but also removes acidity, sludge, other soluble oil decay products, and improves color. For special application, the system also can be mounted on a leak proof base or be installed and operated on a trailer.


To meet customers’ special needs, we develops:

  • ZYD-I Transformer Oil Regeneration System

  • ZYD-I-A PLC Fully Automatic Transformer Oil Reclaiming Equipment

  • ZYD-I-W Fully Enclosed Dielectric Fluids Recycling Equipment

  • ZYD-I-M Outdoor Mobile Insulating Oil Reclamation Machine


Advantages:

1. The plant is delivered ready for operation.

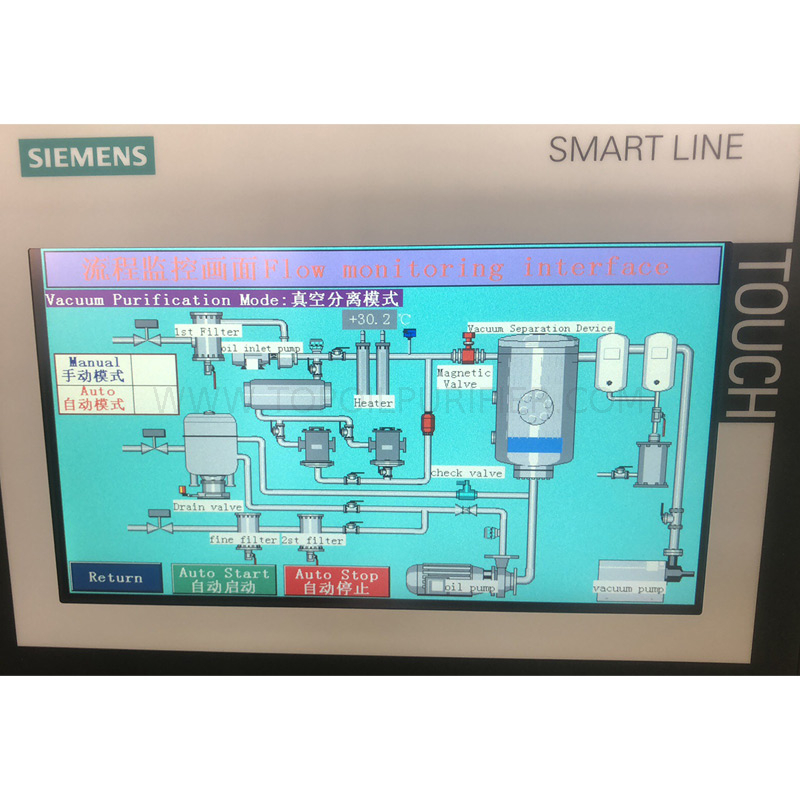

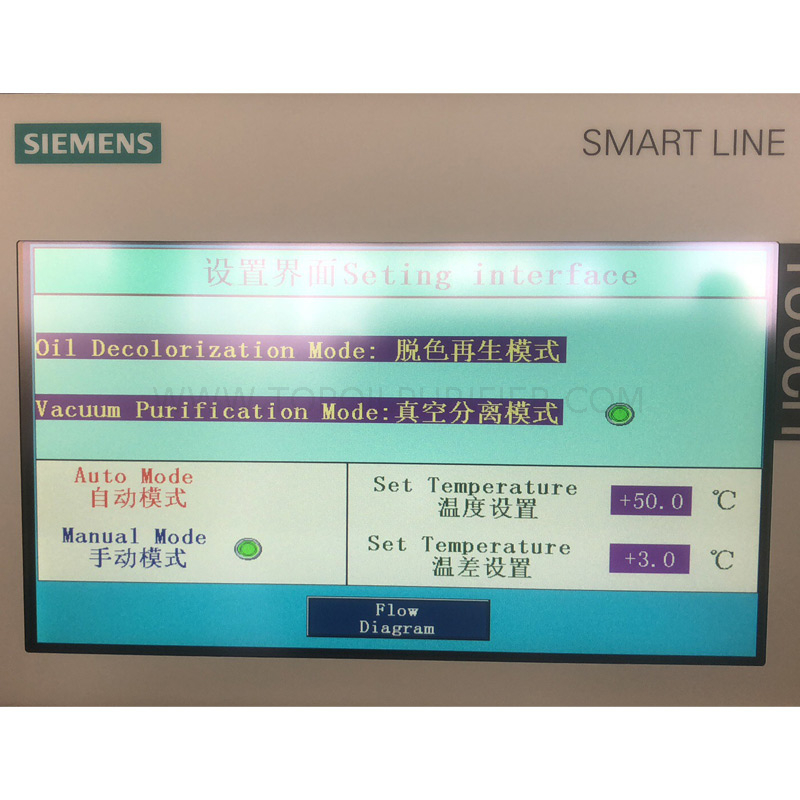

2. Fully automatic operation controlled by Siemens PLC

3. It provides regular oil purification but also can remove acidity, sludge, other soluble oil decay products and discoloration

4. Degassing, dehydration and filtering process if various kind of insulation oils in electrical transformers and circuit breakers through put in one or several passes

5. There are two vacuum pumps for plant ZYD-I-A (one is the vacuum pump, other one is the booster roots pump), which can improve the vacuum value highly. Making sure the water-content of the treated oil is less than 3 PPM.

6. All oil treatment plants, type ZYD-I-A are equipped with an automatic Anti-Foam Control System.

7. The plant is equipped with built-in control and safety devices, which provides for a maximum operating security.

8. Minimised power consumption through optimised degassing (excellent efficiency factor).

9. Standardized filter housing for 5 micron, 20 micron and 80 micron filter cartridges.

10.  Automatic supervision of the degree of contamination of the fine filter cartridges

11.  ZYD-I-A can evacuate the vacuum for the electric equipment separately, such as the transformer. Also it can be used to dry the electric equipment and input the oil into the electric equipment under the vacuum state.

12.  The machine adopts the double-infrared liquid automatic controller, pressure automatic-protector which can make sure the machine works online for 150 hours continuously without person. So it is a reliable and high automatically machine.

13.  Adopt interlocked protective system, which connect oil pump, heater and liquid level sensor, avoiding blank heating, blank pumping, oil leak and electricity leak. If there is any fault, machine will be power off automatically.

14.  Functions of live line work on-site, vacuum drying and vacuum oiling


Optional Features:

1. Flow Meter for auto calculating and recording oil volume and working time

2. Continuous Online Moisture in Oil Meter Model PTT-001)

3. Continuous Online Moisture and Particles in Oil Monitor(Model PTT-M)

4. Metallic Weather Proof Enclosure to prevent rain, sun, dust ect.,

5. Single/Double-axles Road worthy Trailer for Outdoor Use

6. Pirani Digital Vacuum Gauge

7. 20/40 feet sea freight container


Technical Parameter:

Parameters

Unit

ZYD-I-A

-30

ZYD-I-A

-50

ZYD-I-A

-100

ZYD-I-A

-150

ZYD-I-A

-200

ZYD-I-A

-250

ZYD-I-A

-300

Flow Rate

L/min

30

50

100

150

200

250

300

Flow Rate

L/H

1800

3000

6000

9000

12000

15000

18000

Working vacuum

MPa

-0.08 ~ -0.099

Working Pressure

MPa

≤0.3

Temperature Range

20 ~ 80

Power


AC380V/50HZ/3Ph 5 wire (can be customized)

Working Noise

dB(A)

68

70

70

75

75

75

75

Heating Power

kW

30

36

48

60

80

108

120

Total Power

kW

36

44

54

70

93

120

135

Inlet/Outlet

mm

φ32

φ32

φ42

Φ42

Φ48

Φ60

Φ76

Weight

kg

850

1000

1100

1250

2200

2600

3000

Overall

L

mm

1700

1750

1800

1900

2000

2150

2200

W

mm

1200

1300

1400

1450

1500

1550

1600

H

mm

2200

2250

2450

2450

2450

2450

2450

Index after filtering

Breakdown Voltage

kV

≥75

Moisture content

PPM

≤3

Gas content

%

≤0.1

Impurity size

micron

≤1 (no free carbon)

Value β

%

98

Cleanness

NAS1638

≤ 6

Flash Point (Close)

≥135

Acid value

mg KOH/g

0.01

Interfacial tension

N/m

≥145

Dielectric loss factor


≤0.01

Color


Light yellow(close to water)
