Application

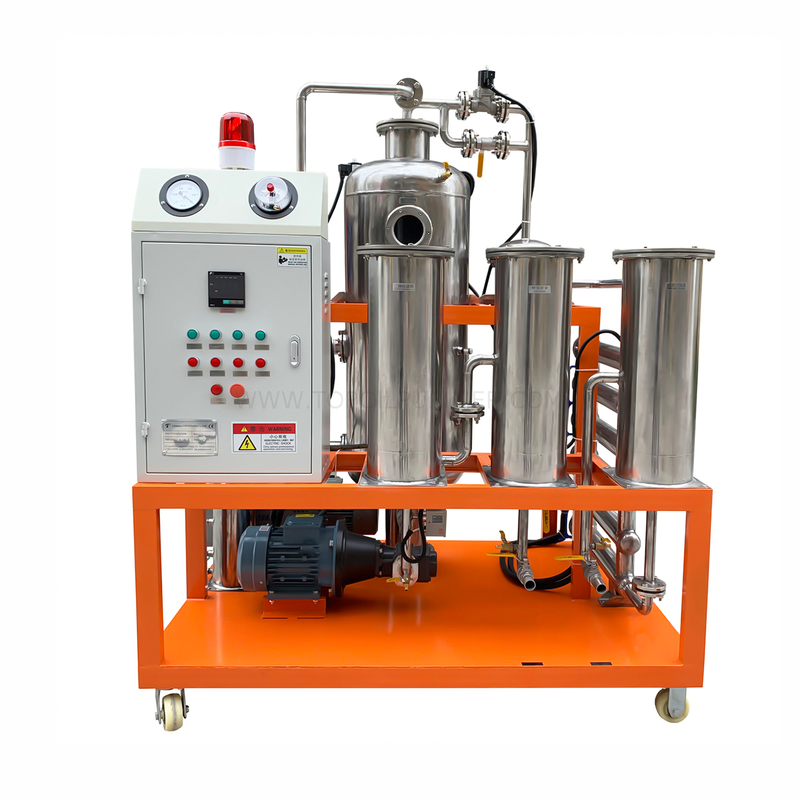

COP-S series is made of completely 304 stainless steel (food grade). It is mainly used for purifying new and crude cooking oil, vegetable oil, KFC oil, edible oil, rape oil, sesame oil, peanut oil, coconut oil, beam oil, kitchen oil, bio-diesel oil, plant oil, wood oil etc. It effectively and completely removes particles, water, alcohol from oil. The treated oil is clean and clear with good smell. COP-S is an ideal purification machine for virgin coconut oil and vegetable oil factories, frying food factories, oil restaurants, waste oil collecting stores etc.
To meet customers’ special needs, we develops:
1. COP Used Cooking Oil Filter Machine
2. COP-S Stainless Steel Cooking Oil Purification Machine
3. COP-A Fully Automatic Cooking Oil Filtration Machine
4. COP-W Fully Enclosed Cooking Oil Cleaning Machine
5. TYS Food Grade Stainless Steel Cooking Oil Decoloration Machine
Features
1. Highly effective vacuum dewatering, deodorizing, and impurities removing system.
2. It adopts plate pressure system with the strong ability to filter the particles and impurities completely.
3. It has the back flush system which can clean the filter elements automatically.
4. We uses stainless steel filter element which has a good anti-corrosive performance. Especially, the precision of eliminating impurity is high and the service life is long. Also, it has large volume for holding the impurities.
5. Unique degassing and dewatering system: Using 3D-Evaporation technical and thin film evaporation, which can separate the trace water, soluble water and gases from the oil quickly by the Multi-level water-oil separation technology.
6. Hi-automatically operated, convenient, reliable, and safe.
Optional Features:
1. Siemens Brand P.L.C (Programmable Logic Controller)
2. Flow Meter for auto calculating and recording oil volume and working time
3. Continuous Online Moisture in Oil Analyzer Model PTT-001)
4. Continuous Online Moisture and Particles in Oil Monitor(Model PTT-M)
5. Single/Double-axles Road worthy Trailer for Outdoor Use
6. Regeneration system TYS with special brand of earth can remove acidity, sludge, other soluble oil decay products and discoloration(not suitable for car engine oil)
Technical Parameter
Item | Unit | COP-S -10 | COP-S -20 | COP-S -30 | COP-S -50 | COP-S -100 | COP-S -150 | COP-S -200 | COP-S -300 |
Flow rate | L/min | 10 | 20 | 30 | 50 | 100 | 150 | 200 | 300 |
Working vacuum | Mpa | -0.06 ~- 0.095 |
Working pressure | Mpa | ≤0.4 |
Temperature | ℃ | 0~100 |
Power supply |
| 380V/50HZ/3Ph 5 wire(as customer’s requirement) |
Working noise | dB (A) | ≤65~80 |
Working time | H | ≥ 4000 |
Continuous working time | H | ≥150 |
Working noise | dB(A) | ≤75 | ≤75 | ≤75 | ≤78 | ≤78 | ≤78 | ≤80 | ≤82 |
Electric heating power | kW | 36 | 40 | 45 | 72 | 80 | 90 | 120 | 135 |
Total electric power | kW | 38 | 42 | 47 | 75 | 87 | 101 | 135 | 147 |
Outlet(inlet) caliber | mm | Ф25 | Ф25 | Ф25 | Ф32 | Ф42 | Ф50 | Ф50 | Ф60 |
Weight | kg | 350 | 380 | 400 | 450 | 550 | 650 | 700 | 750 |
Size | L | mm | 1500 | 1500 | 1500 | 1600 | 1750 | 1900 | 1950 | 2100 |
W | mm | 1000 | 1050 | 1050 | 1150 | 1150 | 1600 | 1600 | 1600 |
H | mm | 1600 | 1600 | 1650 | 1700 | 1750 | 1950 | 1950 | 2000 |
Index after filtering | Moisture content | PPM | ≤50 |
Gas content | % | 0.1 |
Impurity size | μm | ≤1(Customerizable) |
Demulsification value |
| (fresh oil)≤15min, (oil in operation)≤30mi |
| Cleanness degree |
| ≤4（NAS 1638） |
