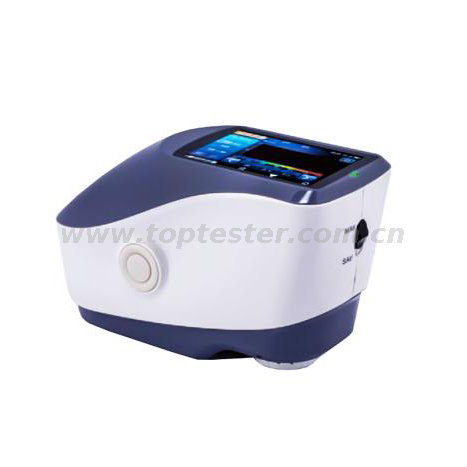

TP3060 High Precision Grating Spectrophotometer

Availability:
Quantity:
  • TP3060

TP3060 grating spectrophotometer has full light source, double aperture, SCI/SCE, for accurate laboratory color analysis and transmission. The instrument is stable, accurate and with powerful function.



Product features

1. D / 8 geometric optical structure, in line with CIE No.15, GB/T 3978, GB 2893, GB/T 18833, ISO7724-1, ASTM E1164, DIN5033 Teil7;

2. using a combination of long life and low-power LED light source, including UV /excluding UVM;

3. Φ 8/4mm caliber can be switched at will, adapt to more samples to be tested, and measure SCI, SCE at the same time;

4. measuring sample spectrum, with accurate Lab data, can be used for color matching and accurate color transfer;

5. high electronic hardware configuration: 3.5-inch TFT true color screen, capacitive touch screen, concave grating, 256 pixel dual array CMOS detector etc.;

6. USB/ bluetooth@4.0 dual mode (compatible with 2.1) dual communication mode, more adaptable;

7. a standard whiteboard with super dirt resistance, stability and high reflectivity;

8. large-capacity storage space, can store about 30,000 ^ test data;

9. camera framing and positioning;

10. PC-side software has a powerful function extension;



Application industry

The grating spectrometer can easily achieve accurate color transfer, and can also be used as a detection device for accurate color matching systems, in the fields of plastic electronics, paint and ink, textile and garment printing and dyeing, printing paper, automotive, medical, cosmetics and food, and widely used in scientific research institutions and laboratories.



Technical specifications

Product model: TP3060 (high precision grating spectrophotometer)

Lighting method: D/8 (diffuse lighting, 8° reception); SCI/SCE measurement; Includes UV/ exclusion UV measurements;

Integral ball size: <Φ 48 mm

Lighting source: combined LED light source, UV light source

Spectral mode: concave grating splitting

Sensor: 256-pixel dual array CMQS image sensor

Measuring wavelength range: 400~700nm

Wavelength interval: 10nm

Half bandwidth: 10nm

Reflectance measurement range: 0~200%

Measuring diameter: double caliber: MAV: O8mm / <P10mm; SAV: O4mm / cp5mm

Light mode: test SCI/SCE at the same time

Color space: CIE LAB, XYZ, YxyfLCh, CIE LUV, HunterLAB

Color difference formula: △E*ab, AE*uvSE*94, AE*cmc(2:l), AE*cmcQ:l)SE*00v,AE(Hunter) Other colorimetric indicators: WI(ASTM E313, CIE/ISO , AATCC, Hunter),

YI (ASTM D1925, ASTM 313),

TI (ASTM E313, CIE / ISO),

Metamerism index MI, color fastness, color fastness, coverage, 8 degree gloss Observer angle: 2710°

Observation light source: ACD50, D55, D65, D75, Fl, F2, F3, F4, F5, F6, F7, F8, F9, F10, Fll, F12,

CWFtU30, TL83, TL84fU35

Display: spectra / data, chrominance sample values, the color difference value / FIG, pass / fail result, color deviation measurement time: about 1.0s (tested simultaneously SCI / SCE about of 2.6s)

Repeatability: Spectral reflectance: within 0.08% of the MAV/SCI standard deviation (400~700nm: less than 0.18%)

Color values: MAV / SCI, AE * ab 0.03 or less (after correction, 5s interval measurement whiteboard 30 times the average) difference between the table: Within MAV / SCI, AE * ab0.15 (BCRA series U 12 measuring block Swatches ■Average) Measurement method: single measurement, average measurement (2~99 times)

Positioning method: display camera positioning positioning

Size: length X width X height = 184X77X105mm

Weight: about 600g

Battery power: lithium battery, 5000 times in 8 hours

Illumination source life: more than 3 million measurements in 5 years

Display: TFT true color 3.5inch, capacitive touch screen

Interface: USB / RS-232, the dual mode Bluetooth ®4.0 (2.1 compatible)

Storage data: 1000 standard samples, 28000 samples (one data can include SCI/SCE at the same time) Language: Simplified Chinese, English

Operating temperature range: 0~40°C, 0~85%RH (no condensation), altitude: less than 2000m

Storage temperature range: -20~50°C, 0~85%RH (no condensation)

Standard accessories: power adapter, data cable, built-in lithium battery, manual, CD (including management software), black and white correction box, protective cover

Optional accessories: micro printer, powder test box
